MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Nakamura
  • Model:
  • LATHE NAKAMURA TOME SC 150
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

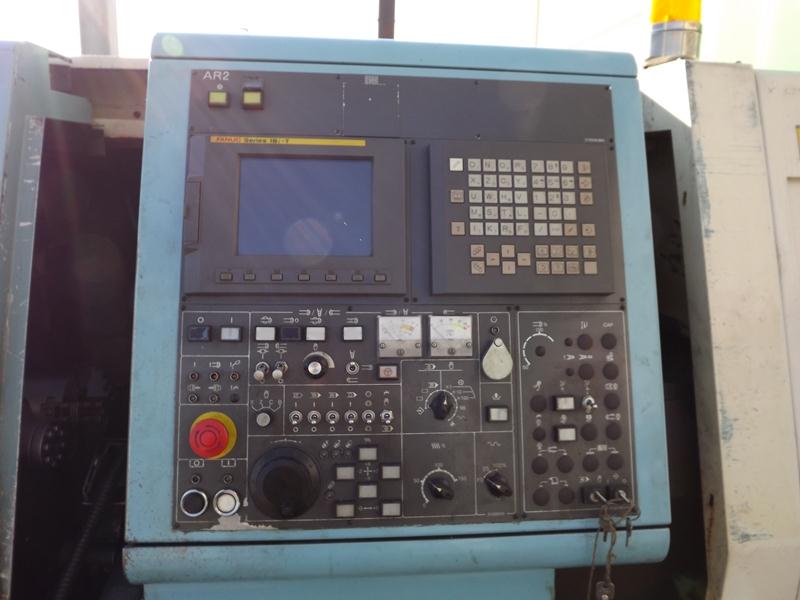

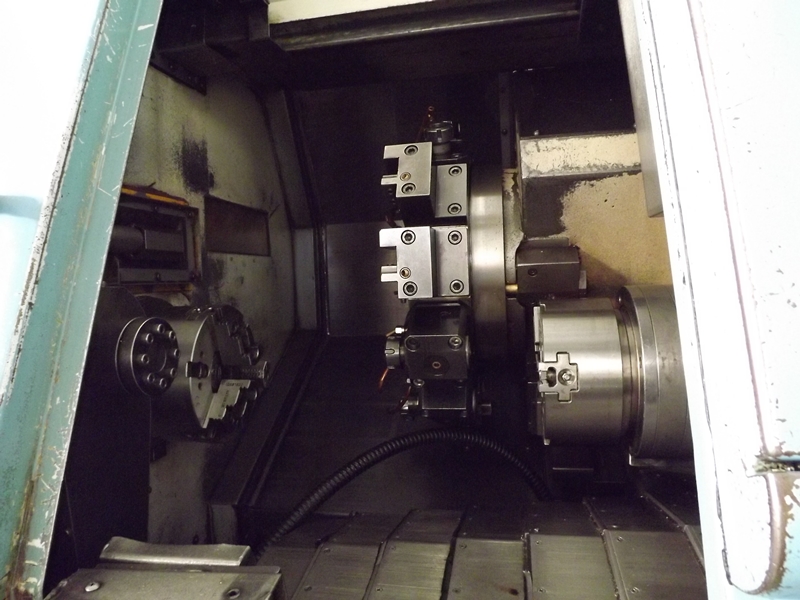

NAKAMURA 05803 CNC FANUC 21iTA SWING DIAMETER OVER GUIDE MM 660 DISTANCE BETWEEN THE CENTER MM 479 MAX TURNING DIAMETER MM 220 MAX TURNING LENGHT MM 305 BAR PASSAGING MM 51 SPINDLE SPEED MIN/-1 50-5000 SPINDLE NOSE A2-5 SPINDLE BORE MM 62 COUNTER SPINDLE SPEED MIN/-1 50-5000 COUNTER SPINDLE NOSE A2-5 COUNTER SPINDLE BORE MM 47 MOTORIZED TURRET N°12 TOOLS SPINDLE MOTOR (50% ED/CONT.) KW 5,5/7,5 COUNTER SPINDLE MOTOR (50% ED/CONT.) KW 7,5/3,7 MAX POWER REQUIRED KVA 21 OVERALL DIMENSIONS MM 2080X1500X1600H WEIGHT KG 3800 EQUIPPED WITH: CHIP CONVEYOR USED MACHINE
