MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Labor
  • Model:

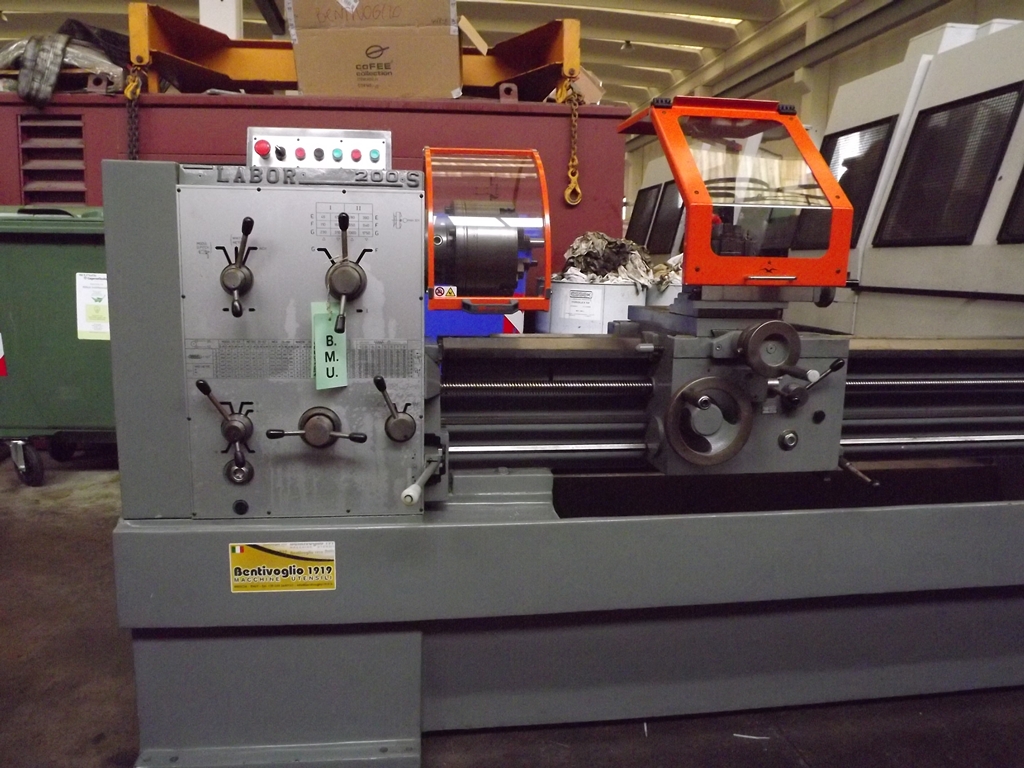

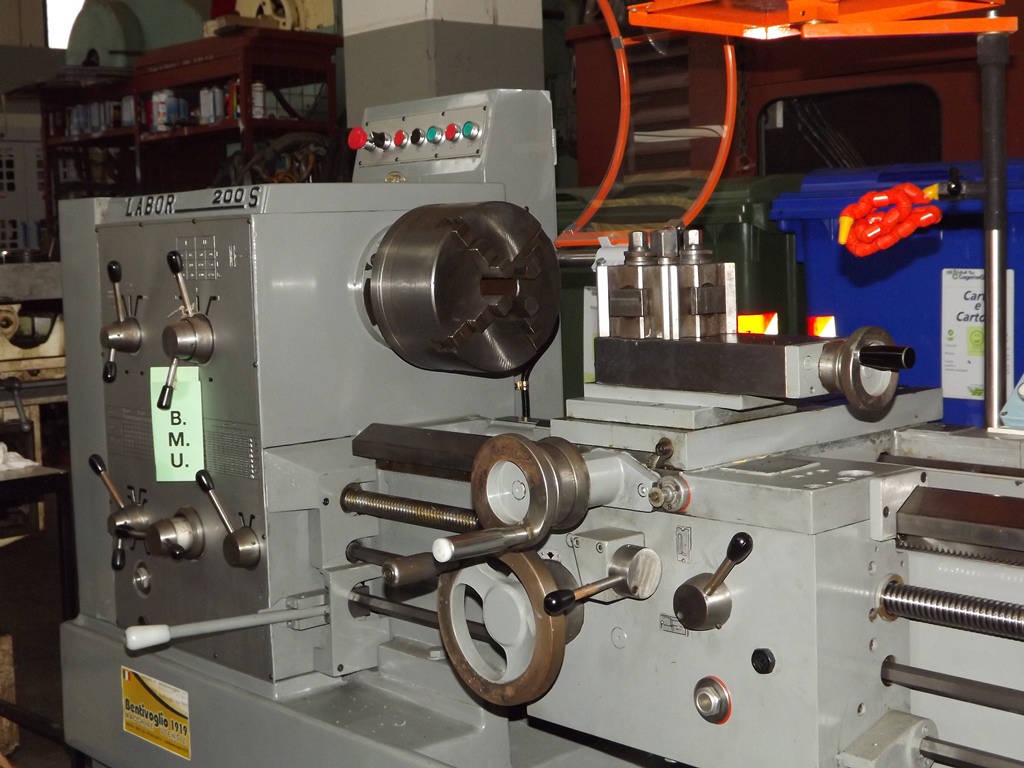

  • LATHE LABOR MOD. 200S
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

PADOVANI New05360 height center mm 200 distance between center mm 1500 bed width mm 290 turning diameter on the bed mm 400 turning diameter on the carriage mm 245 lgap width mm 240 max diameter mm 600 spindle bore mm 51 spindle taper camlock 5 spindle C.M. 4 spindle speed n° 12 - rpm 40-1800 Longitudinal and cross feedi n° 32 longitudinal feed mm/giri 0,08- 1,3 cross feed mm/giri 0,08- 1,3 quill diameter mm 52 quill stroke mm 170 quill C.M. 4 USED MACHINE REVIEWED
