MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • MILLING FPT MOD. RAID XL
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

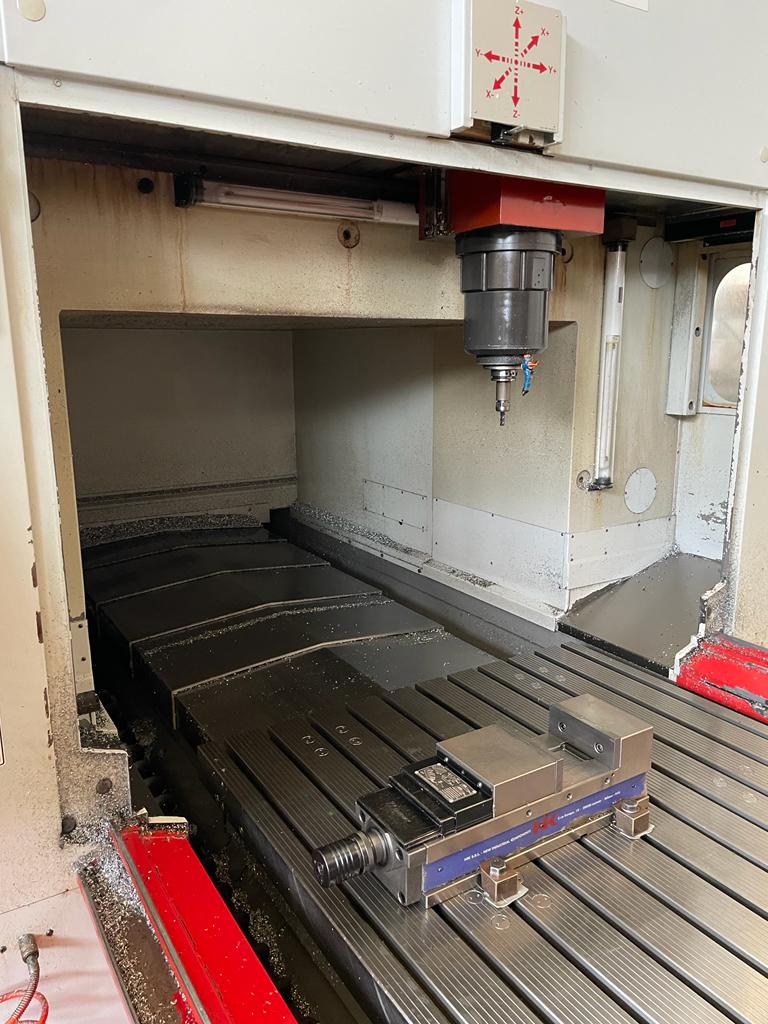

FPT 09205 WITH FIXED PORTAL CNC Heidenhain TNC530I S.P. WORKING AREA: Longitudinal travel X mm 2000 Cross travel Y mm 1400 Vertical travel Z mm 800 Table dimensions mm 1100x2000 Table capacity 3300 kg Distance between table and spindle nose 100-900 mm Maximum horizontal passage mm 1430 Maximum vertical passage 900 mm Height of the worktop from the ground mm 650 OVERALL DIMENSIONS (INDICATIVE): Maximum height 3800 mm Base dimensions mm 5850x2650 ELECTROSPINDLE: Motor power kW 18 Max torque Nm 80 Max power from 2150 rpm Max speed rotation 18000 rpm Spindle taper HSK-A-63 MAX INPUT POWER: kW 46 Amp 78 TOTAL WEIGHT (APPROX.): 22,000 kg MACHINE COMPLETE WITH: - CNC HEIDENHAIN TNC530I S.P. 15.1 "TFT monitor; Graphical user interface; Heidenhain linear measuring systems Interpolation capacity: up to 9 axes Type of interpolation: linear, circular, helical Block cycle time (BCT): minimum 0.5 ms; ASCII program coding language; ISO programming language, Heidenhain Storage unit: Hard disk Programming on machine board FLEXK Axis control techniques: Jerk, Look-Ahead, digital filters Integrated cycles for piece measurement and tool measurement Data transmission interfaces: RS232 at 115200 baud, RS422 a 115200 baud, Ethernet 100Base T (for use on 10Mb network a speed reducer is required, up to customer) Axis control: algorithm for High Speed ​​Cutting (HSC) - TOOL COOLING LUBRICATION: System for tool lubrication and cooling through nozzles adjustable around the spindle. Performance: Flow rate: 30 l / min. Pressure: 6 bar Filtering degree 100 µm - CHIP CONVEYOR WITH RIGHT EXIT - REMOTE CONTROL PANEL FOR HEIDENHAIN CNC Remote control panel with the following characteristics: * alphanumeric display * n.1 step-by-step handwheel with switchable gradation with five resolution levels * jog keys +/- * stop key *emergency * dead man buttons (CE standards) * fixing with magnet * 2 adjustment potentiometers F and S (feed and spindle revolutions) * 5 function keys usable as "softkeys" (option) RS422 bidirectional serial interface that allows to "write" on the display all the information that the operator may need, for example: position of the axes, operating mode, feed, spindle speed, alarms. - LASER PROBE AND TOOL INTEGRITY VERIFICATION SOFTWARE AND TOOL LENGTH AND RADIUS MEASUREMENT SOFTWARE - ETHERNET COMMUNICATION INTERFACE FOR HEIDENHAIN -RIGID TAPPING FOR ELECTRIC SPINDLES (FOR EACH HEAD) USED MACHINE YEAR 2007
