MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

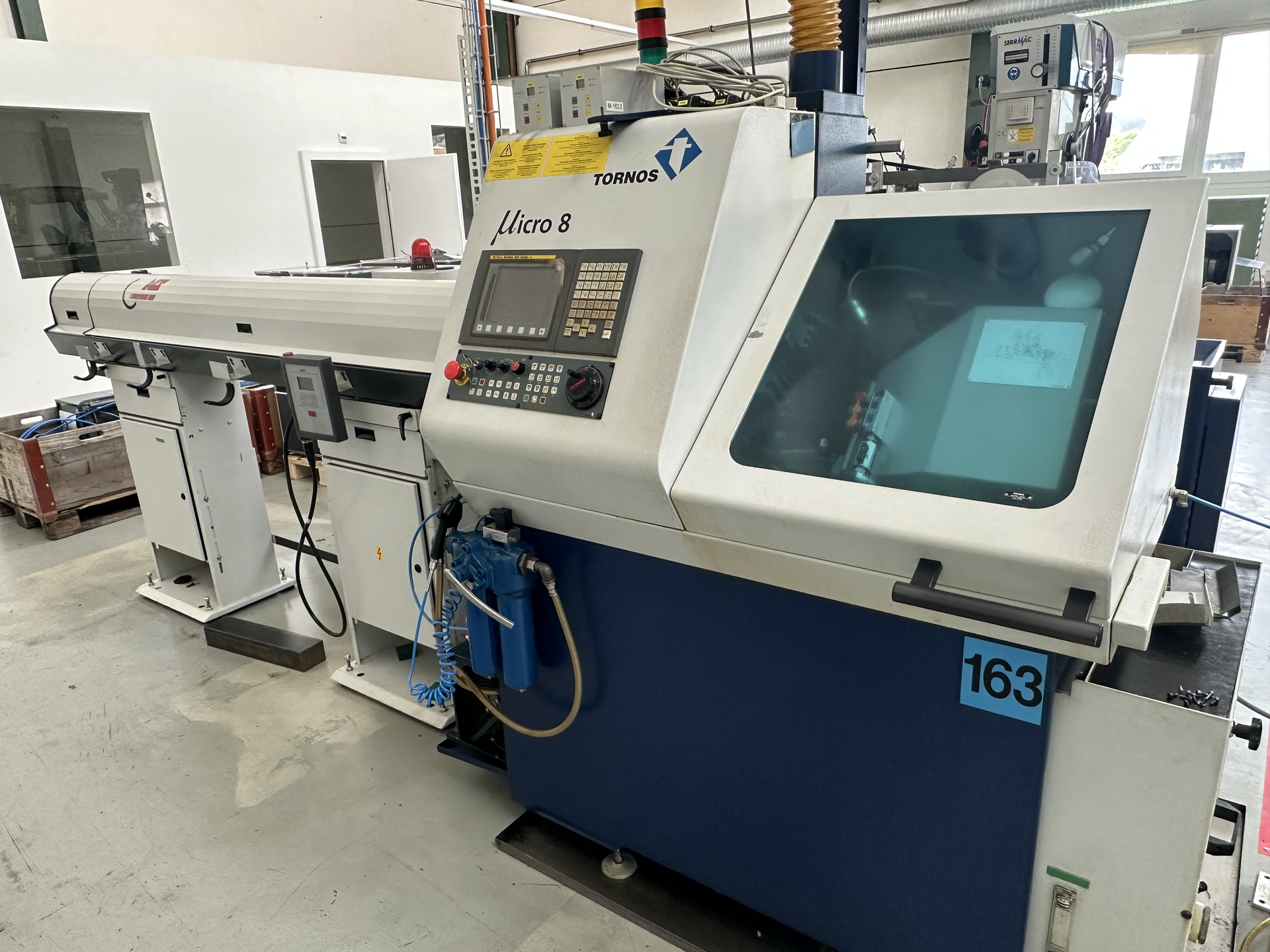

  • 022524 - TORNOS Micro 8
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 7.
Workpiece length max.: 20 mm.
Max. bar diameter: 10 mm.
Inner taper type: F13.
from: t/min.
up to: 12000 t/min.
C axis (spindle,resolution): °.
Rapid traverse X: 20 m/min.
Rapid traverse Y: 40 m/min.
Rapid traverse Z: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 2.2 / 3.7 kW.
Power of back spindle: 2.2 / 3.7 kW.
Total power required: 8 kVA.
Machine's weight about: 1600 kg.
Length: 1670 mm.
Width: 870 mm.
Height: 1650 mm.
Manufacturer: LNS.
Type: TRYTEX 08.
year of manufacture: 2009.
Oil mist extractor: Donaldson.
High frequency spindle: 2X.
