MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:
  • Trumpf - TruLaser Tube 5000
  • Condition:
  • Used
  • YOM:
  • 2008
  • Control:
  • Sinumerik 840D
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Working hours machine: 52323 h
  • Working hours laser on: 50589 h
  • Working hours beam on: 13277 h
  • Laser power: 3200 kW
  • Working range laser: 6500 x 1500 mm
  • Max. steel: 8 mm
  • Max. stainless steel: 5 mm
  • Max. aluminium: 4 mm
  • Length: 18000 mm
  • Width: 9000 mm
  • Height: 2800 mm
  • Machine weight: 17700 kg
  • max. wall thickness: 6,4 mm
  • max. tube length: 6500 mm
  • min. tube length (automatic): 3000 mm
  • max. tube diameter: 150 mm
  • min. tube diameter: 15 mm max.
  • length finished parts: 6500 mm
  • max. tube weight: 20 kg/m
  • max. tube bundle
  • weight: 4000 kg
  • max. speed: 100/5/40/40 mm / min
  • Smallest programmable increment: +/- 0,1 mm
  • Standard configuration:
  • Solid machine frame with integrated laser unit
  • CO2 laser TLF 3200, radio-frequency excitation, chiller
  • Motors: maintenance-free 3-phase servo motors
  • NitroLine High pressure cutting
  • High-speed processing with SprintLine
  • Programmable cutting gas pressure

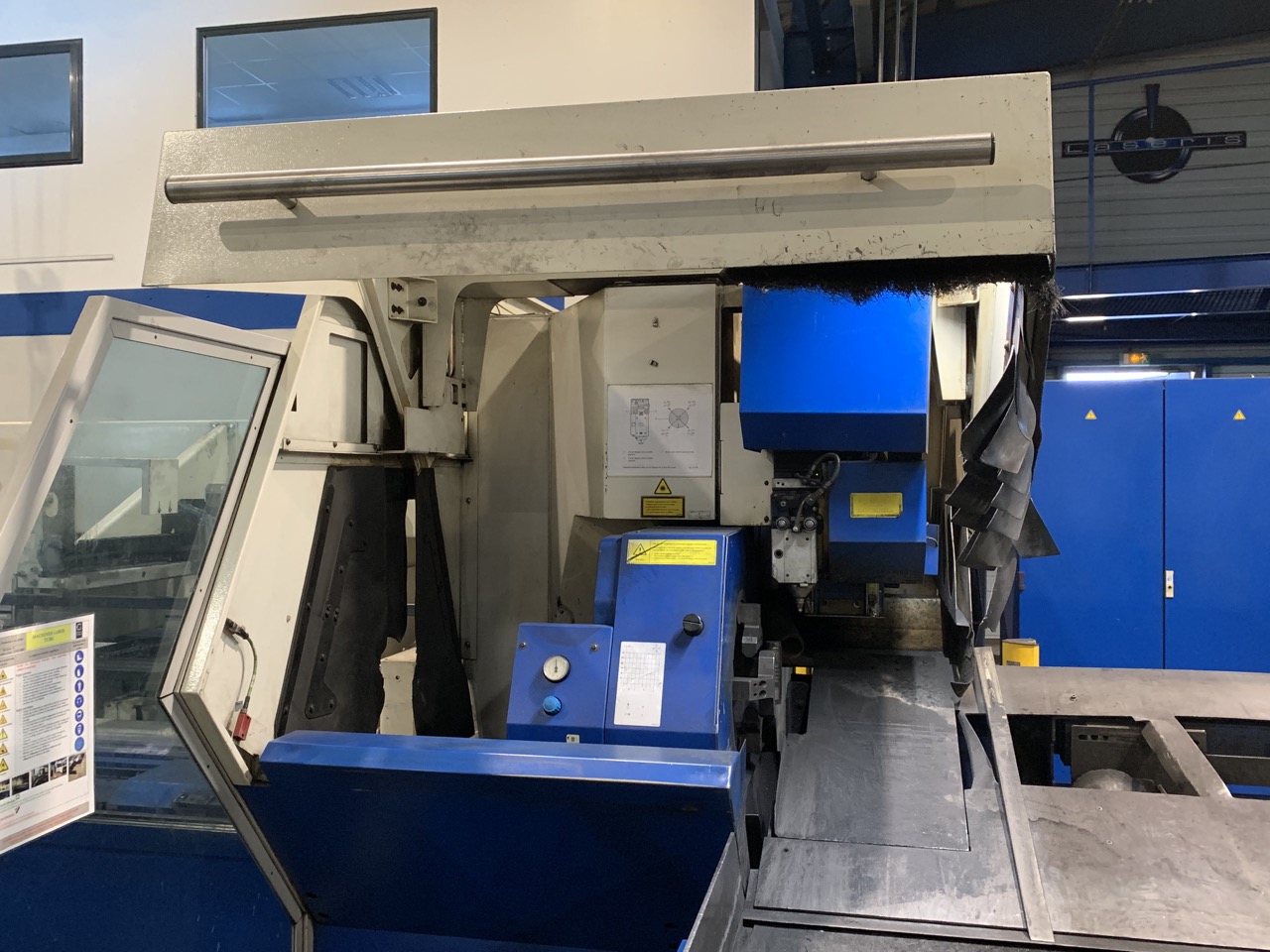

  •  Laser cutting head with 5″ lens, DIAS III
  • Cutting head
  • quick change device
  • Laser power control
  • Laser logbook function
  • Automatic shutdown
  • Work area lighting
  • Sinumerik 840D control: Open PC-based control system, easy to use
  • Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5″ floppy drive, RJ45/BNC network connection
  •  Safety: Multi-beam light barriers, completely encapsulated and purged beam delivery, monitoring system, multi-chamber exhaust system and compact dust extractor, safety cabin

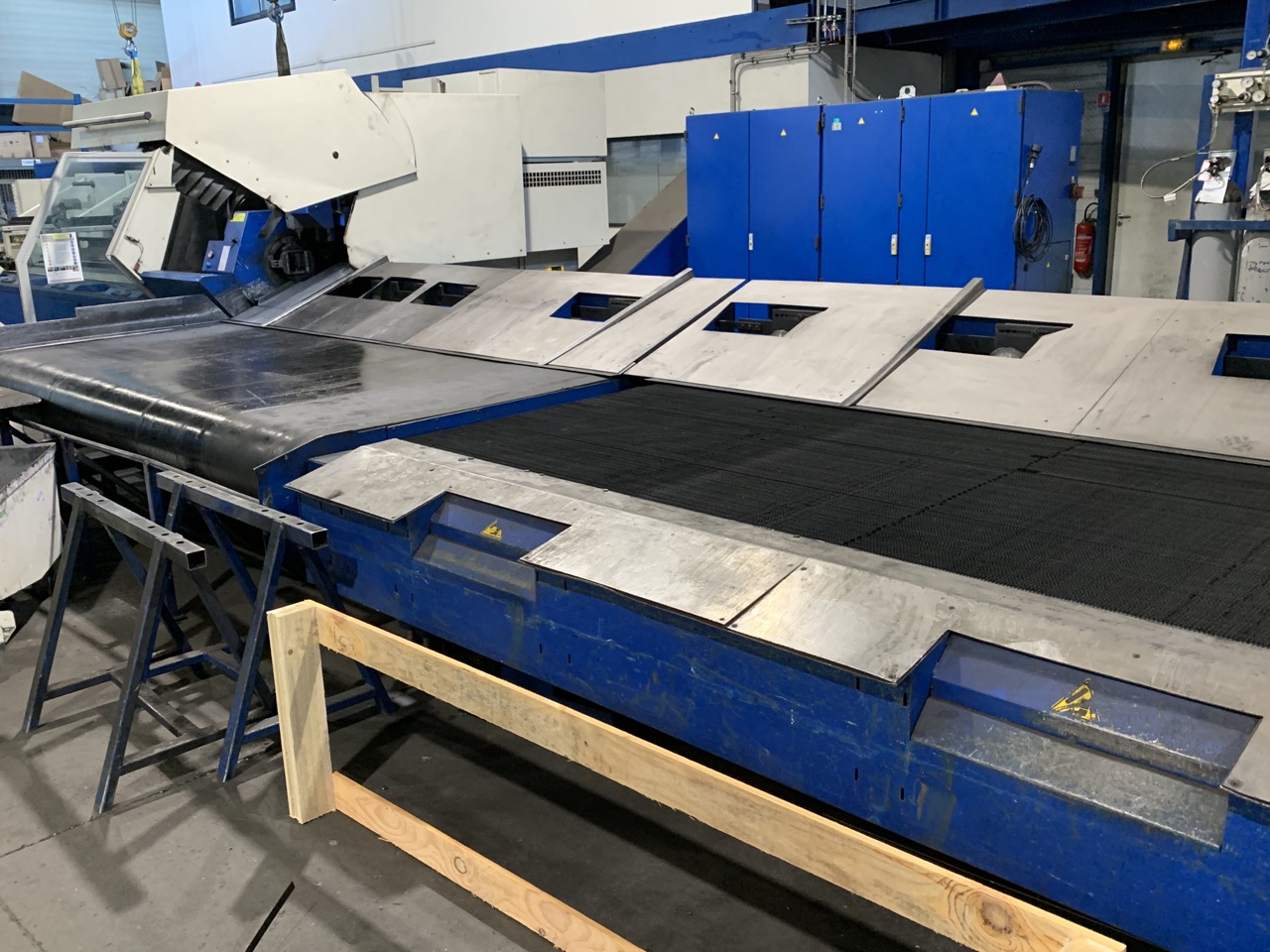

  • Part removal station PRS 3001 with brush table

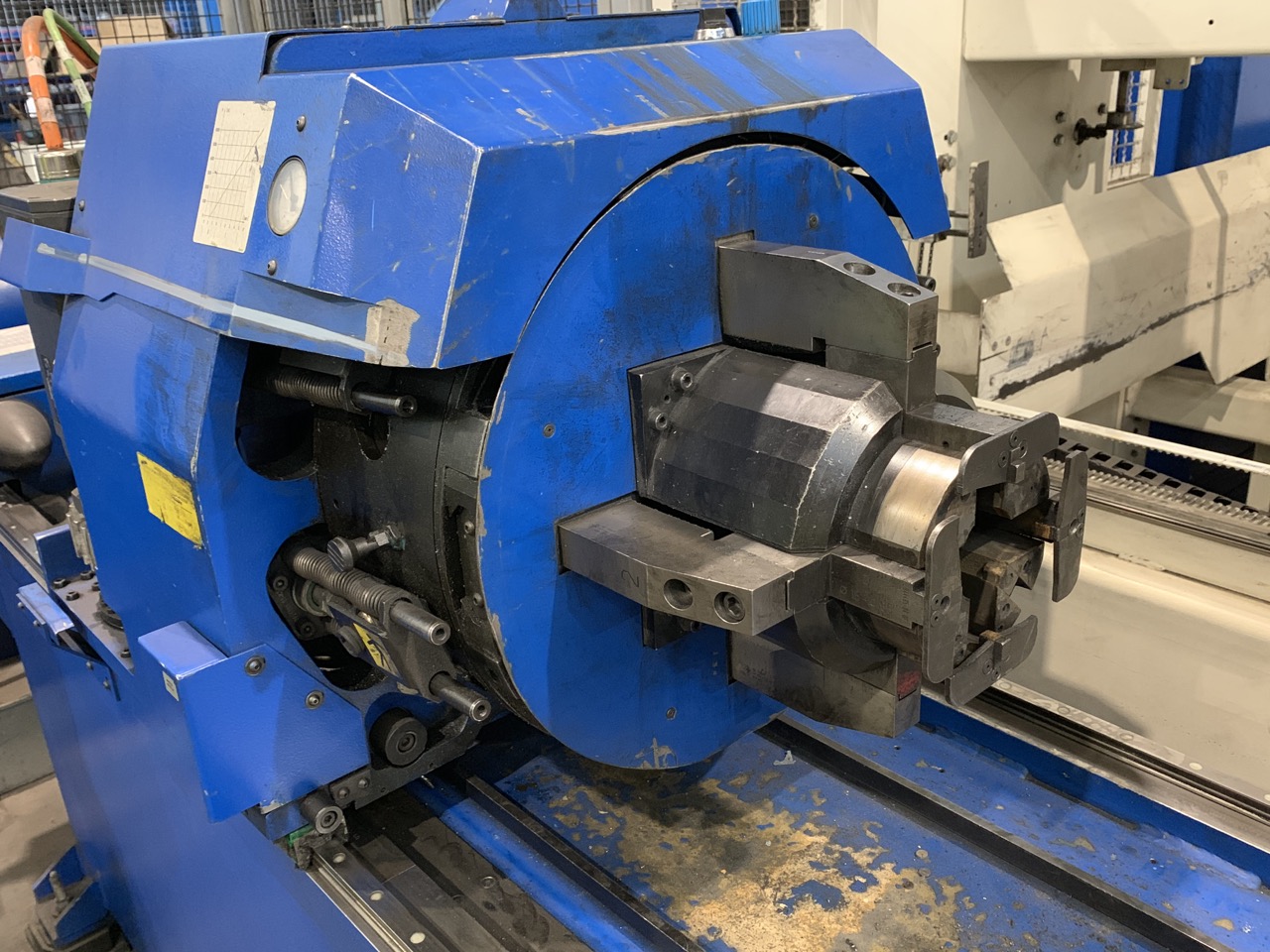

  • Clamp set D 20-85 mm and D 85-150 mm
  • V-shaped form cups and guide rollers for round tubes
  • U-shaped form cups and guide rollers with outer circle diameter 120 mm
  • Automation:

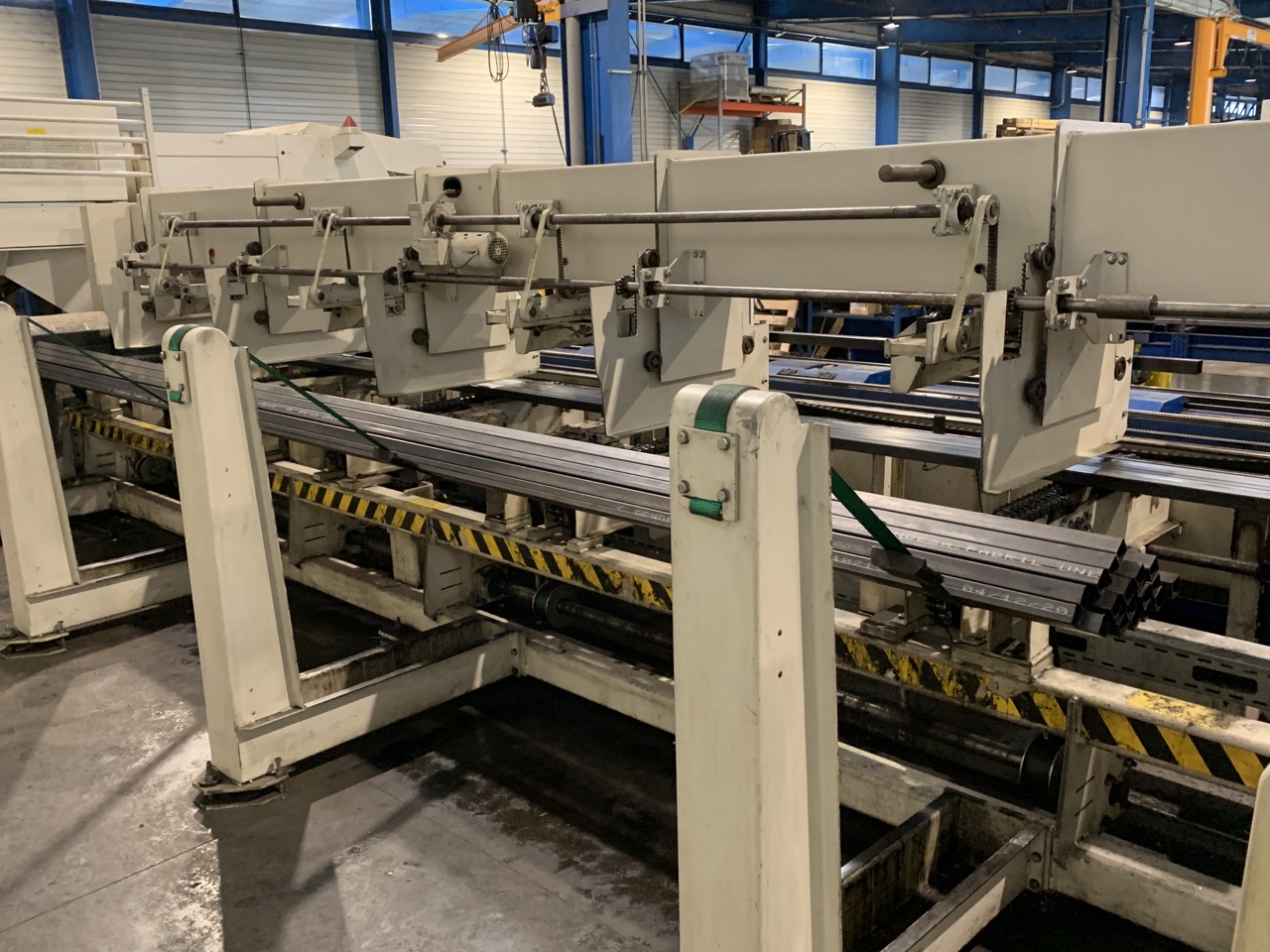

  • LoadMaster Tube with bundle magazine LD 6000
  • Description:
  • This reliable all-around machine replaces conventional, sepa- rate manufacturing operations such as sawing, drilling, milling and punching, and enables the ideal entry into the laser tube processing industry. It owes its high productivity to the perfectly coordinated operation of its components, from the laser unit and its beam guidance system to the clamping units and system control software as well as the tube and profile handling modules.
