MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:

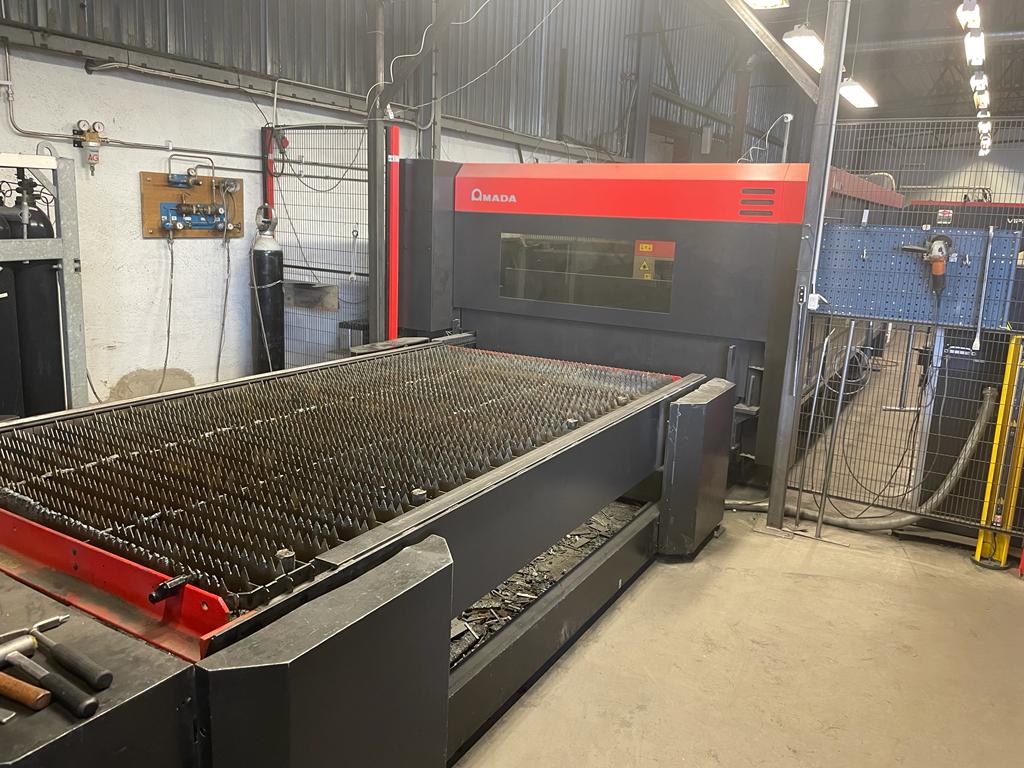

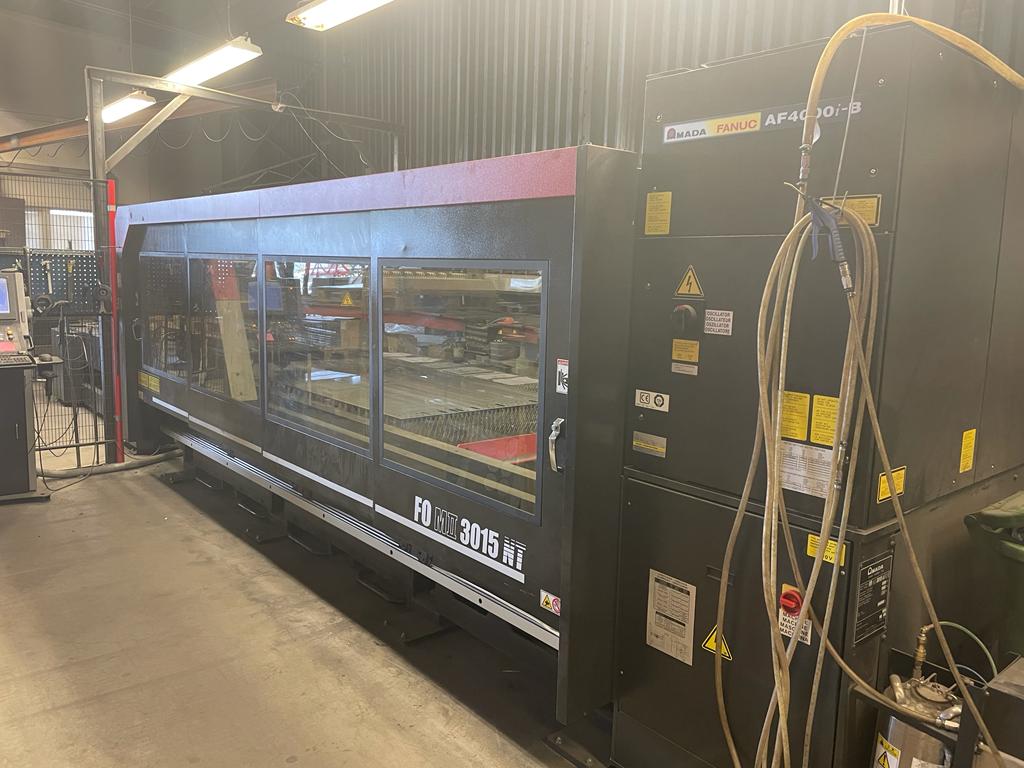

  • Amada - FO M2 3015 - 4 kW
  • Condition:
  • Used
  • YOM:
  • 2012
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

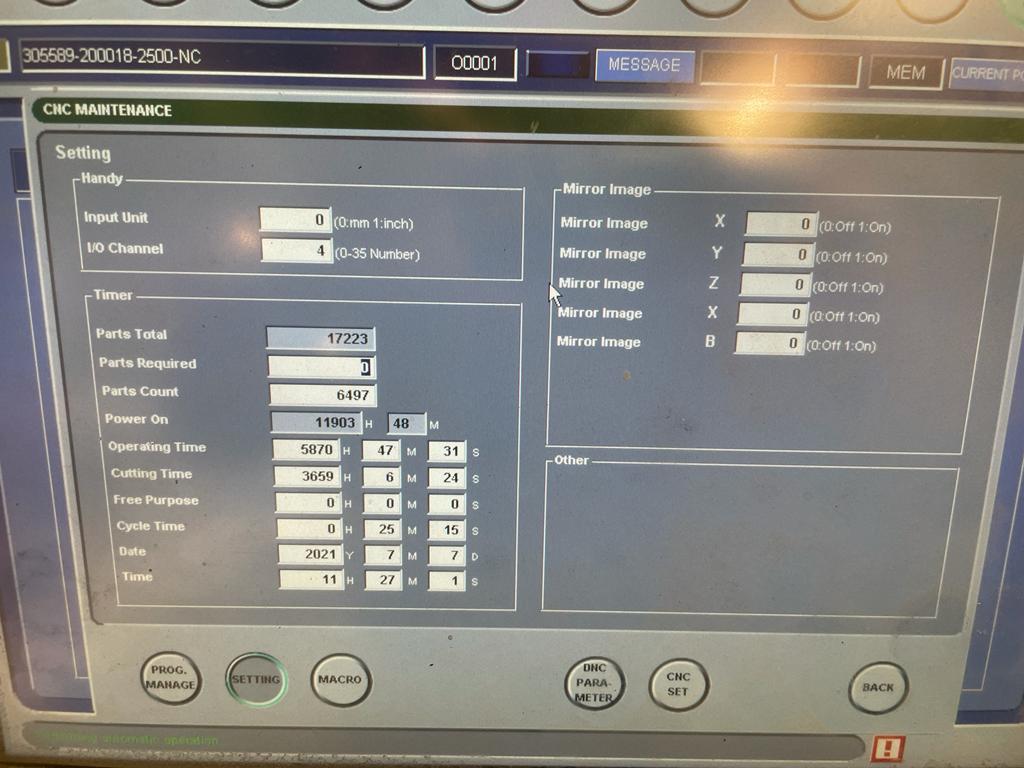

  • Working hours machine: 11903 h
  • Working hours laser on: 5870 h
  • Working hours beam on: 3659 h

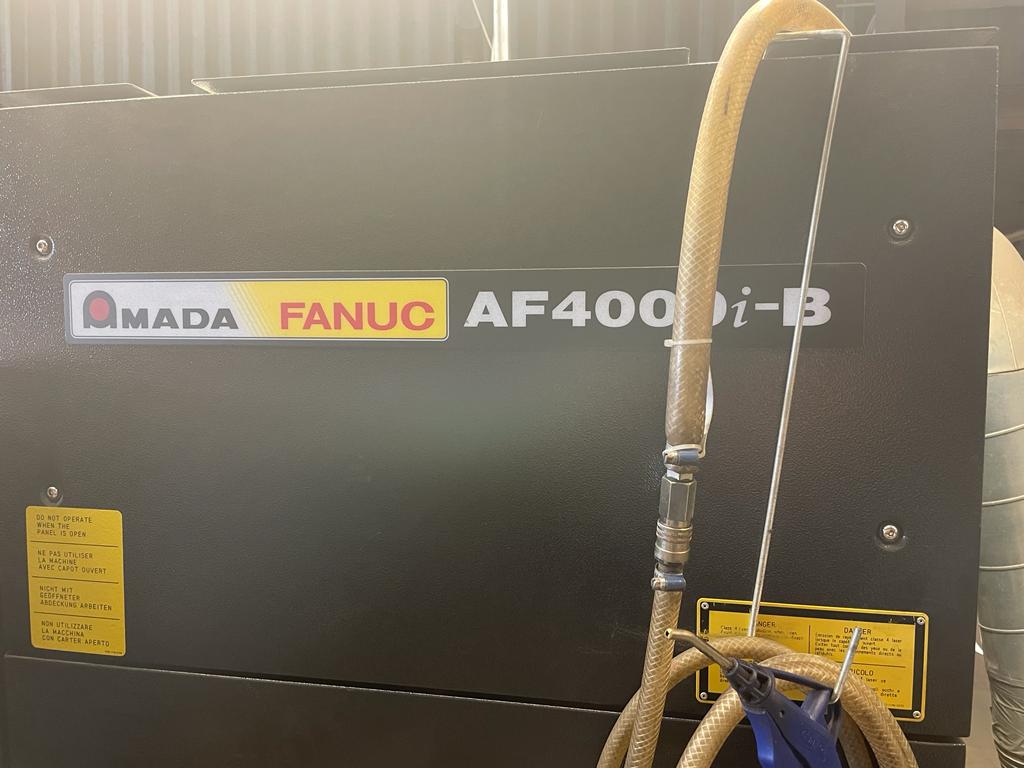

  • Laser power: 4000 (max. 5000) Watt
  • Working range laser: 3070 x 1550 x 200 mm
  • Max. steel: 25 mm
  • Max. stainless steel: 15 mm
  • Max. aluminium: 10 mm
  • Length: ca. 13000 mm
  • Width: ca. 3000 mm
  • Height: ca. 2220 mm
  • Machine weight: 12000 kg
  • Electrical connected load: 72 kVA

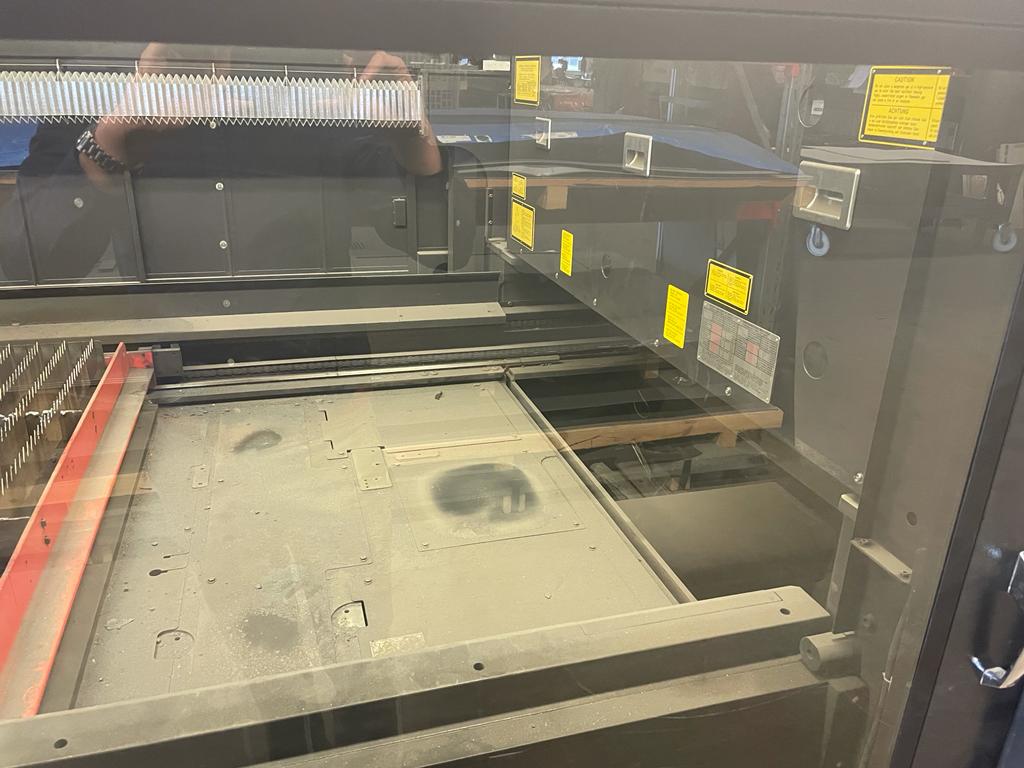

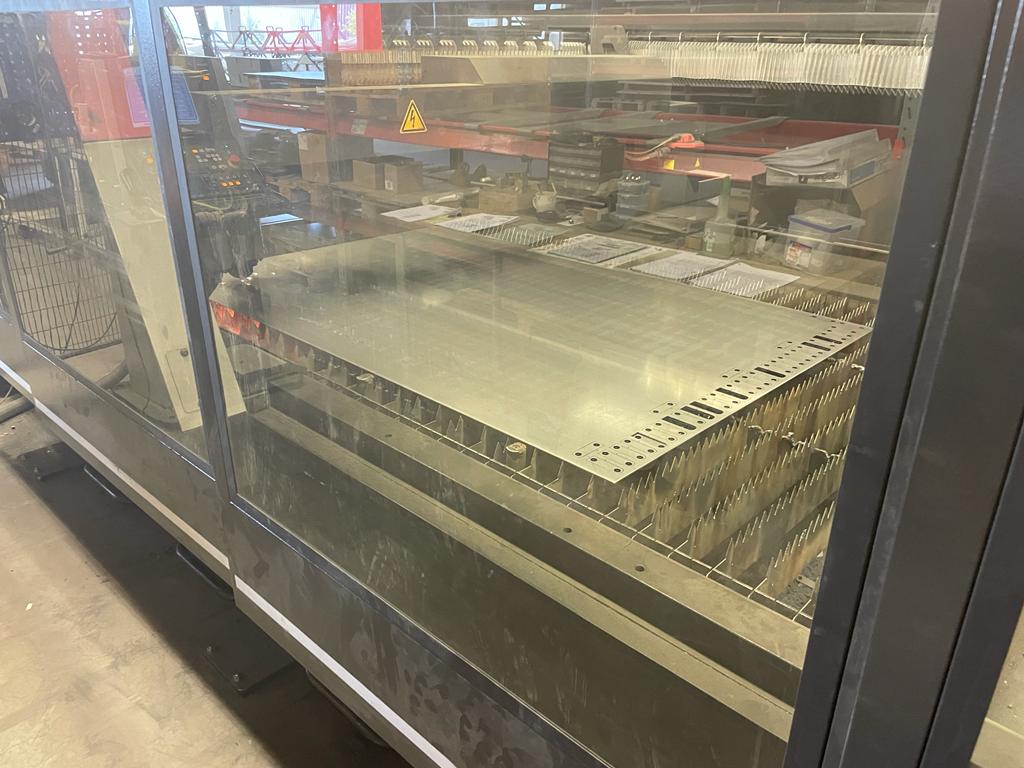

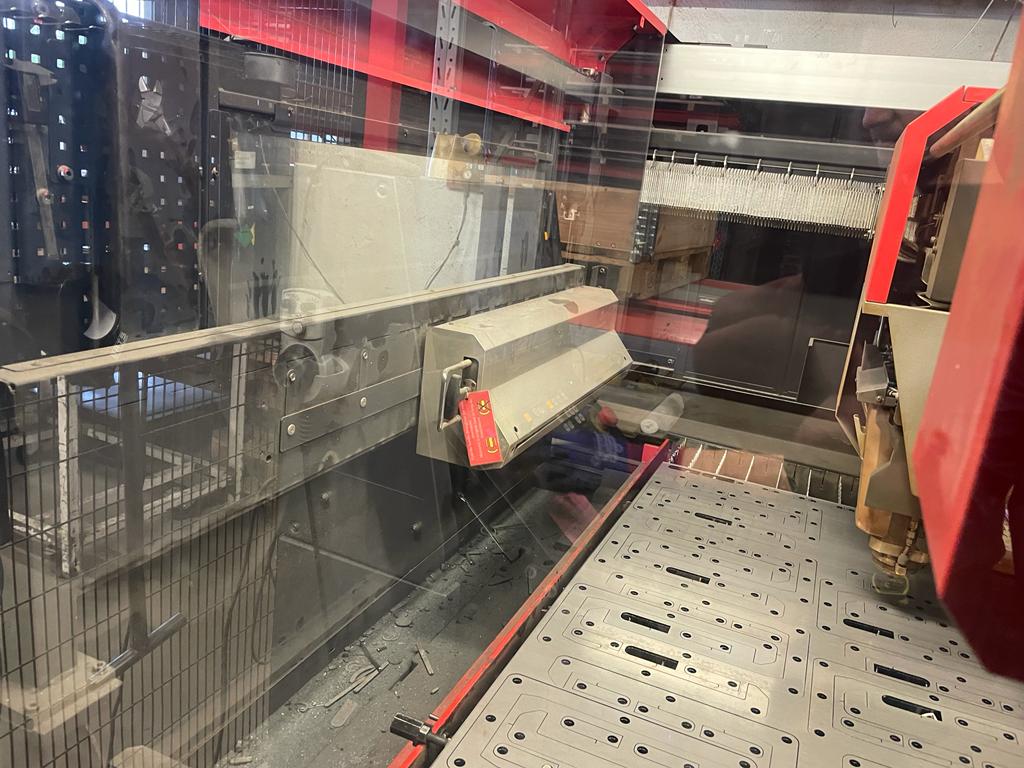

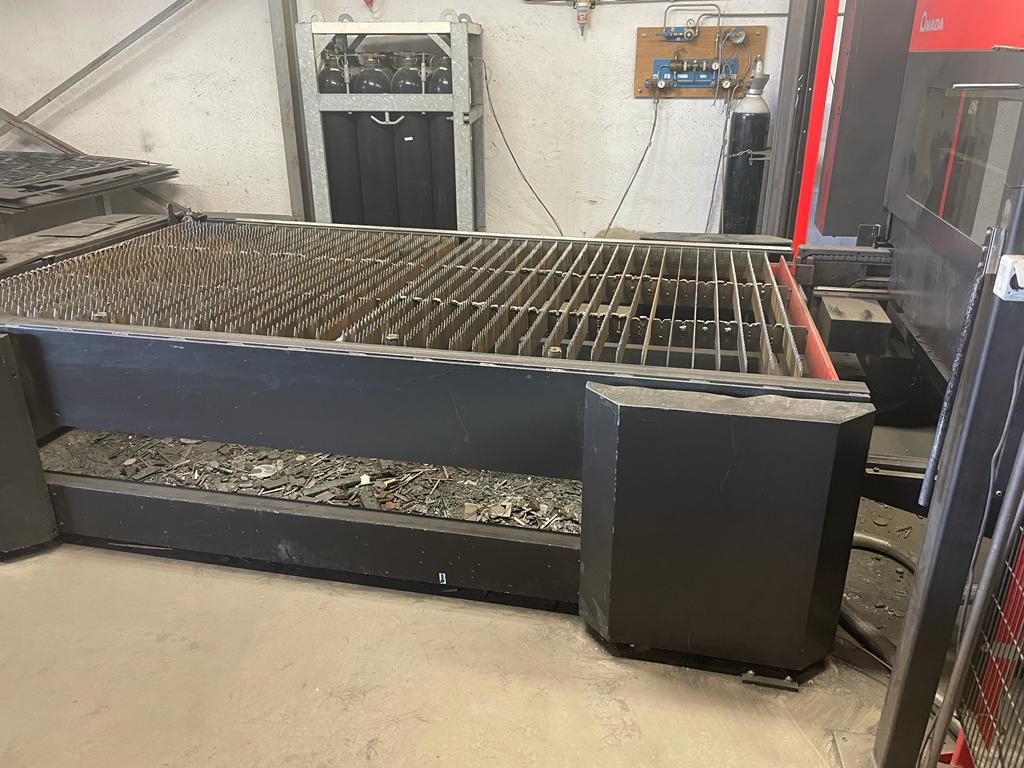

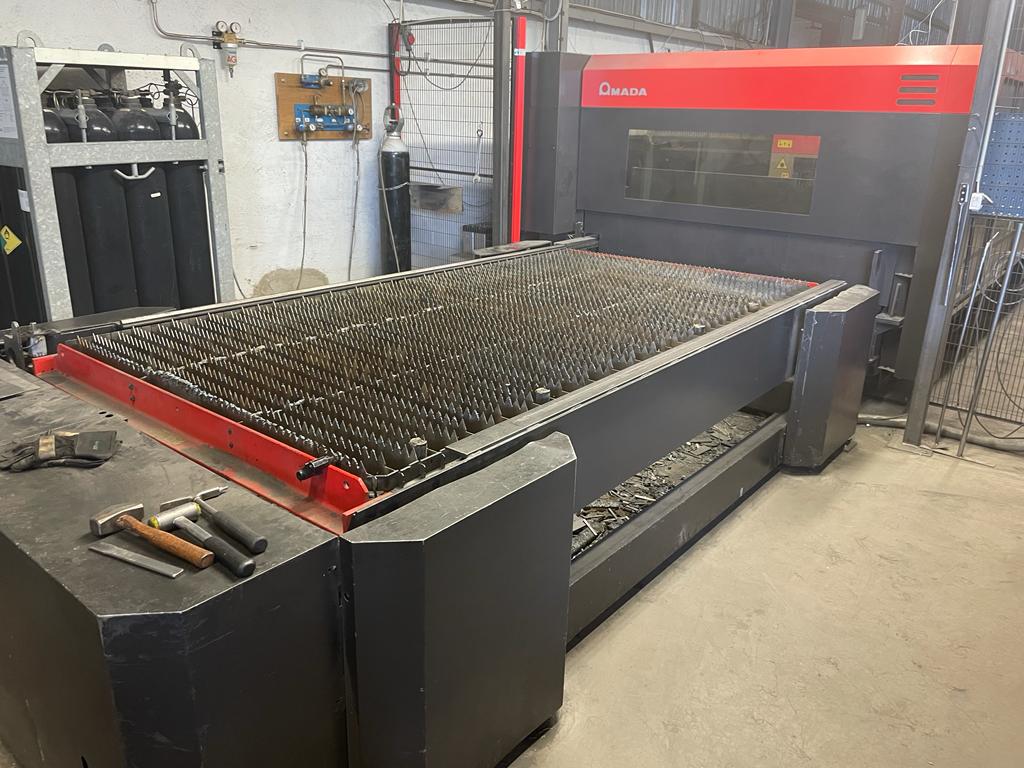

  • Standard configuration: Automatic pallet changer with cutting edge support High pressure cutting device (CleanCut) Aluminum cutter Automatic gas pressure control Non-contact capacitive HS laser cutting head extraction cooling unit Diode laser for positioning Projection path flushing Assistant Gas Filter Active cutting monitoring
  • Extended machine accessories: nozzle changer
.
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    PTF-GmbH

    • Contact Name
    • Holger Keinath
    • Contact Number
    • +49 7574 93 622 83
