MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Bystronic
  • Model:

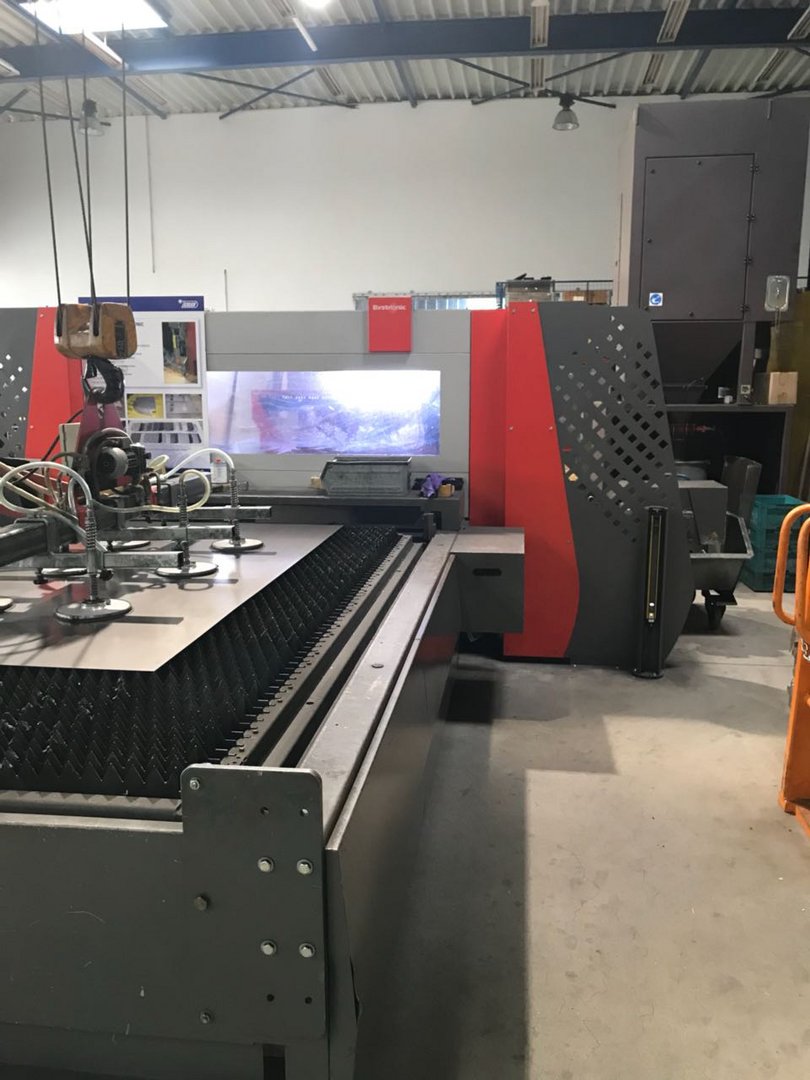

  • Bystronic - ByAutonom 3015
  • Condition:
  • Used
  • YOM:
  • 2013
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Working hours machine: 23304 h
  • Working hours laser on: 22804 h
  • Working hours beam on: 10185 h

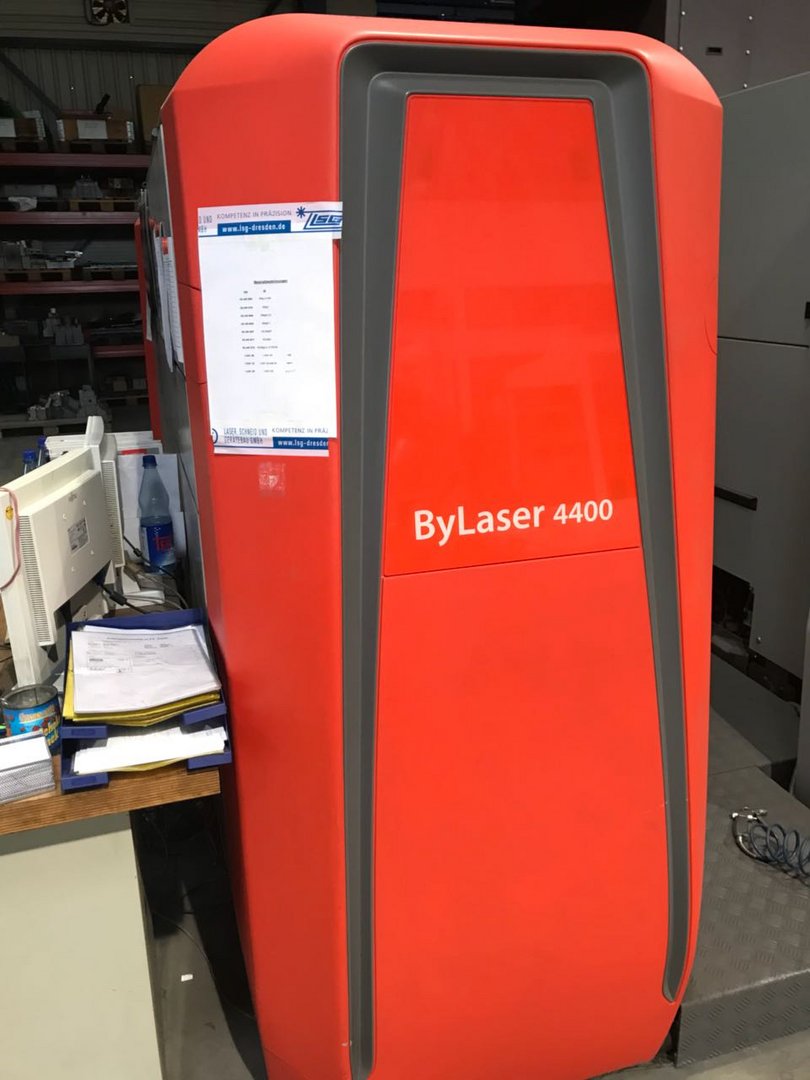

  • Laser power: 4400 Watt
  • Working range laser: 3000 x 1500 mm
  • Max. steel: 25 mm
  • Max. stainless steel: 20 mm
  • Max. aluminium: 12 mm
  • Length: 12800 mm
  • Width: 6300 mm
  • Height: 2400 mm
  • Machine weight: 15000 kg
  • Electrical connected load: 51 kVA
.
