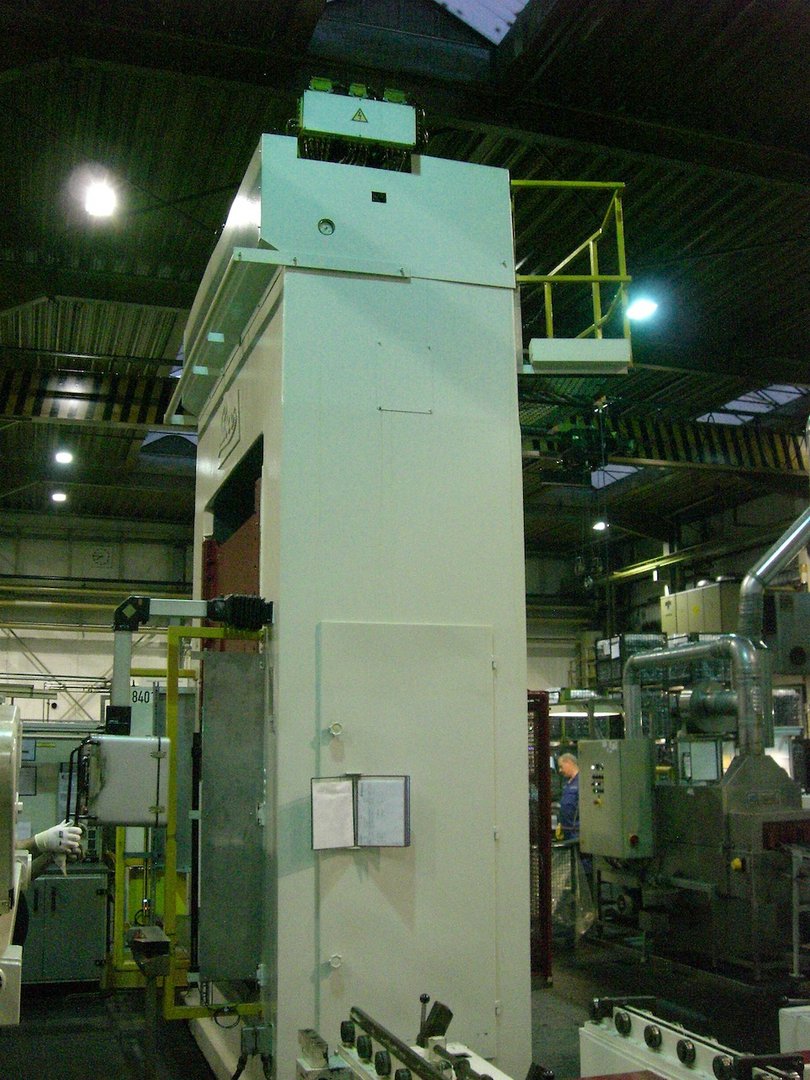

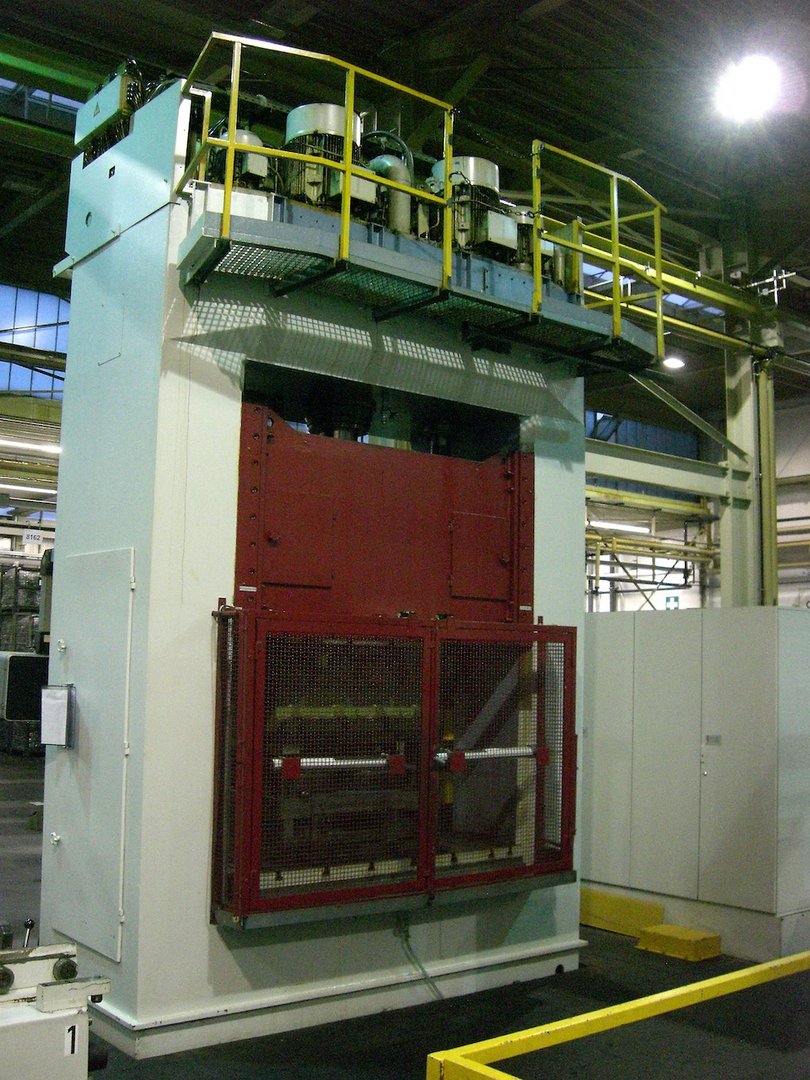

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • EITEL
  • Model:
  • EITEL RN 260
  • Condition:
  • Used
  • YOM:
  • 1990
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Pressure total: 280 ton
  • Stroke: 800 mm
  • Daylight: 1.600 mm
  • Table surface area : 2.000 x 1.200 mm
  • Slide area: 2.000 x 1.200 mm
  • Die cushion capacity in table: 65 ton
  • Die cushion stroke: 350 mm
  • Die cushion pad area: 1.705 x 920 mm
  • Approach speed: 15 m / min
  • Working speed: 0,8 - 2,4 m / min
  • Return speed: 8,5 m / min
  • Required power: 2 x 37 kW
  • Height over floor approx.: 4.850 mm
  • Weight of machine approx.: 26 ton
