Pressure total: 200 ton
Stroke: 630 mm
Daylight: 1000 mm
Table surface area : 1.600 x 1.250 mm
Slide area: 1.600 x1.250 mm
Die cushion capacity in table: 80 ton
Die cushion stroke: 320 mm
Die cushion pad area: 1.250 x 1.000 mm
Dist...

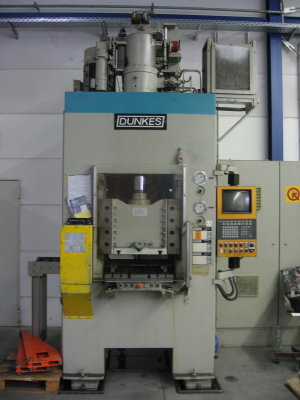

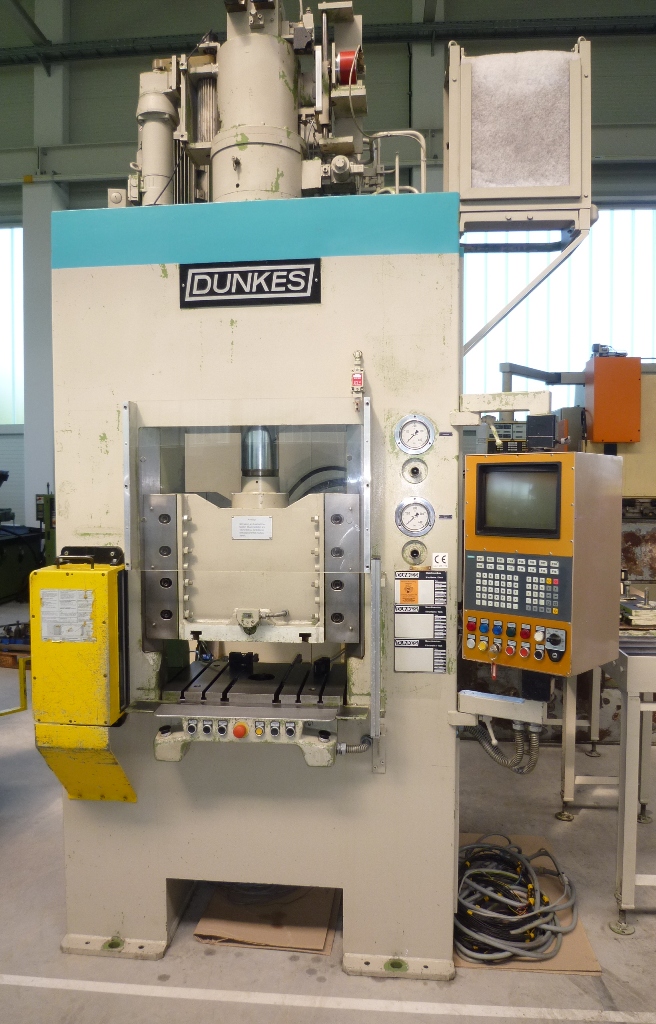

Pressure total: 100 ton
Daylight: 1.400 mm
Table surface area : 1.300 x 1.000 mm
Slide area: 1.300 x 1.000 mm
Ejector Force: 35 kN max.
capacity of swivelling ram plate: 40 kN
Die Weight on table max.: 80 kN max.
capacity of tilting ...
