MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Union
  • Model:

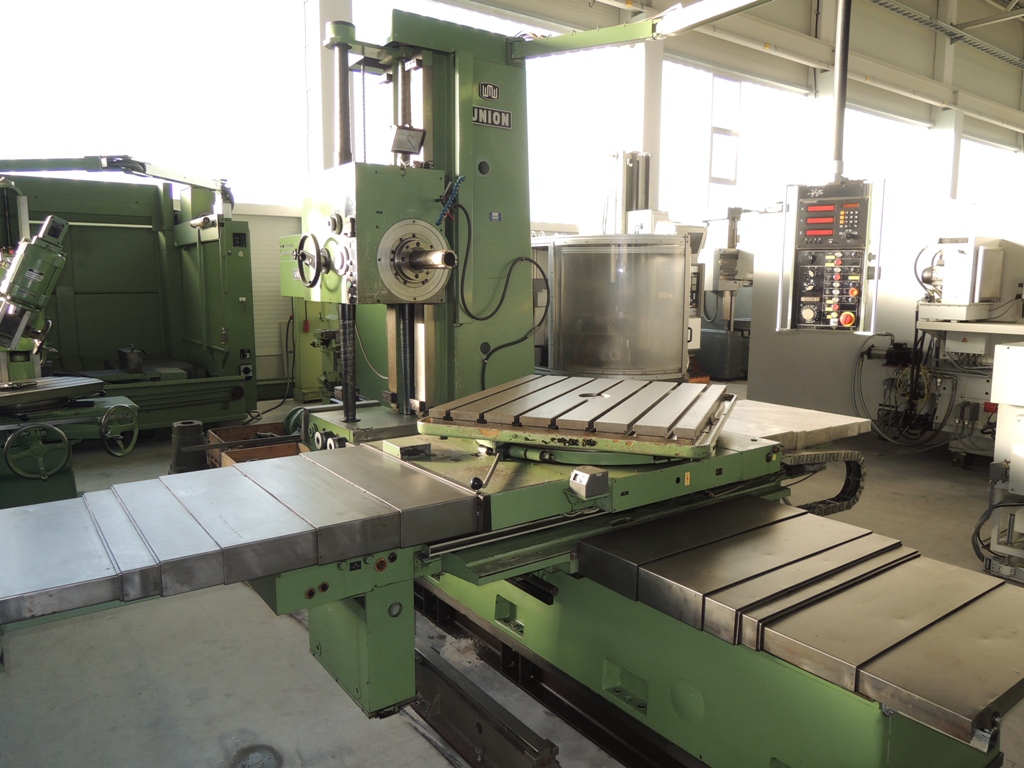

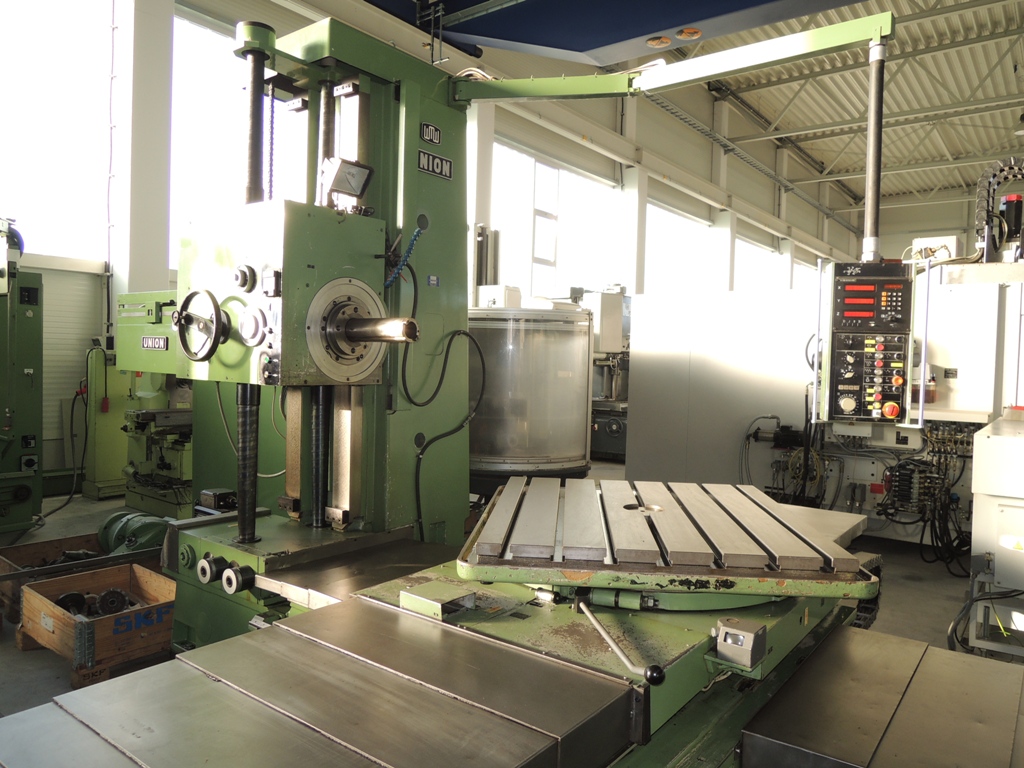

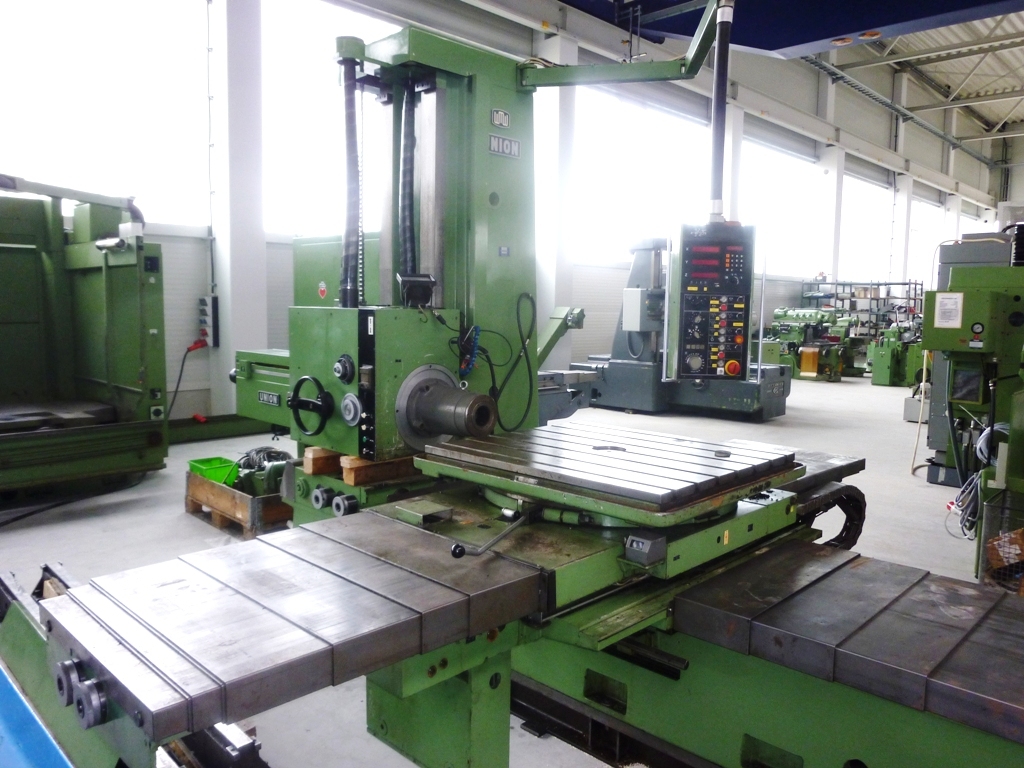

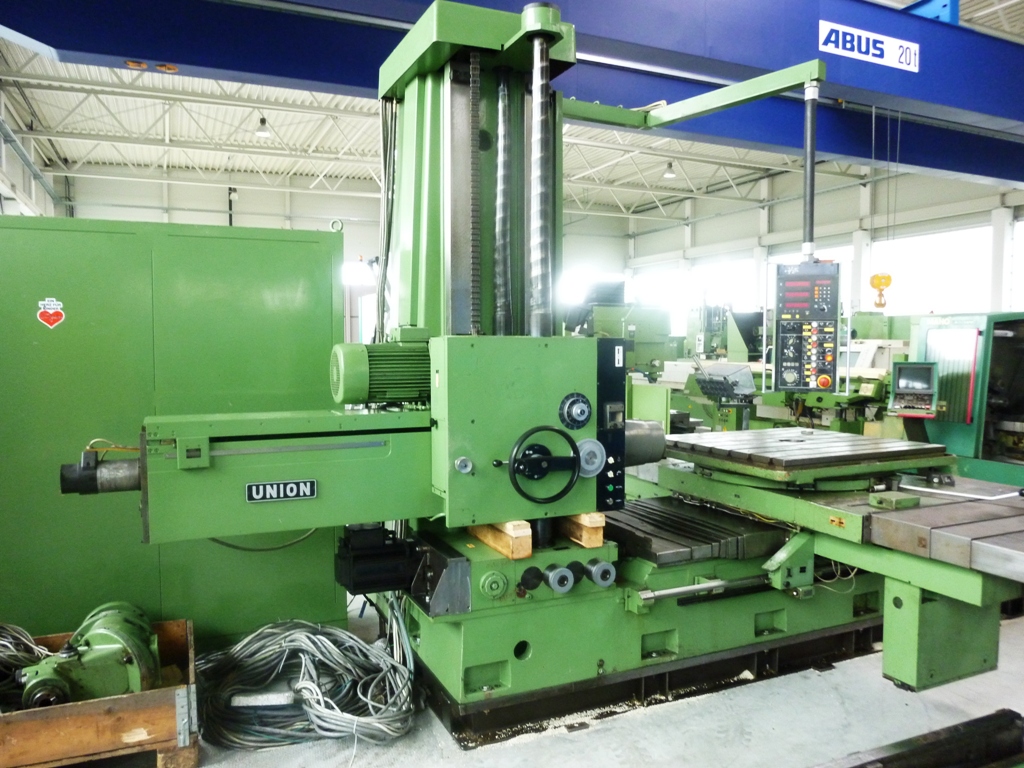

  • WMW-UNION BFT 90 -3-at/TNC 121
  • Condition:
  • Used
  • YOM:
  • 1980
  • Control:
  • HDH Positioning Control TNC 121
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Year - 1980
  • spindle dia - 102(mm)
  • X - 1600(mm)
  • Y - 1250(mm)
  • Z - 1600 (mm)
  • Table length - 1120(mm)    T
  • Table width - 1000(mm)
  • Taper - 50(ISO/MT)
  • Power - 25(kW)
  • TableBorer w.HDH Positioning Control TNC 121, Accessories

+ request more information
