MACHINE INFORMATION AND SPECIFICATION

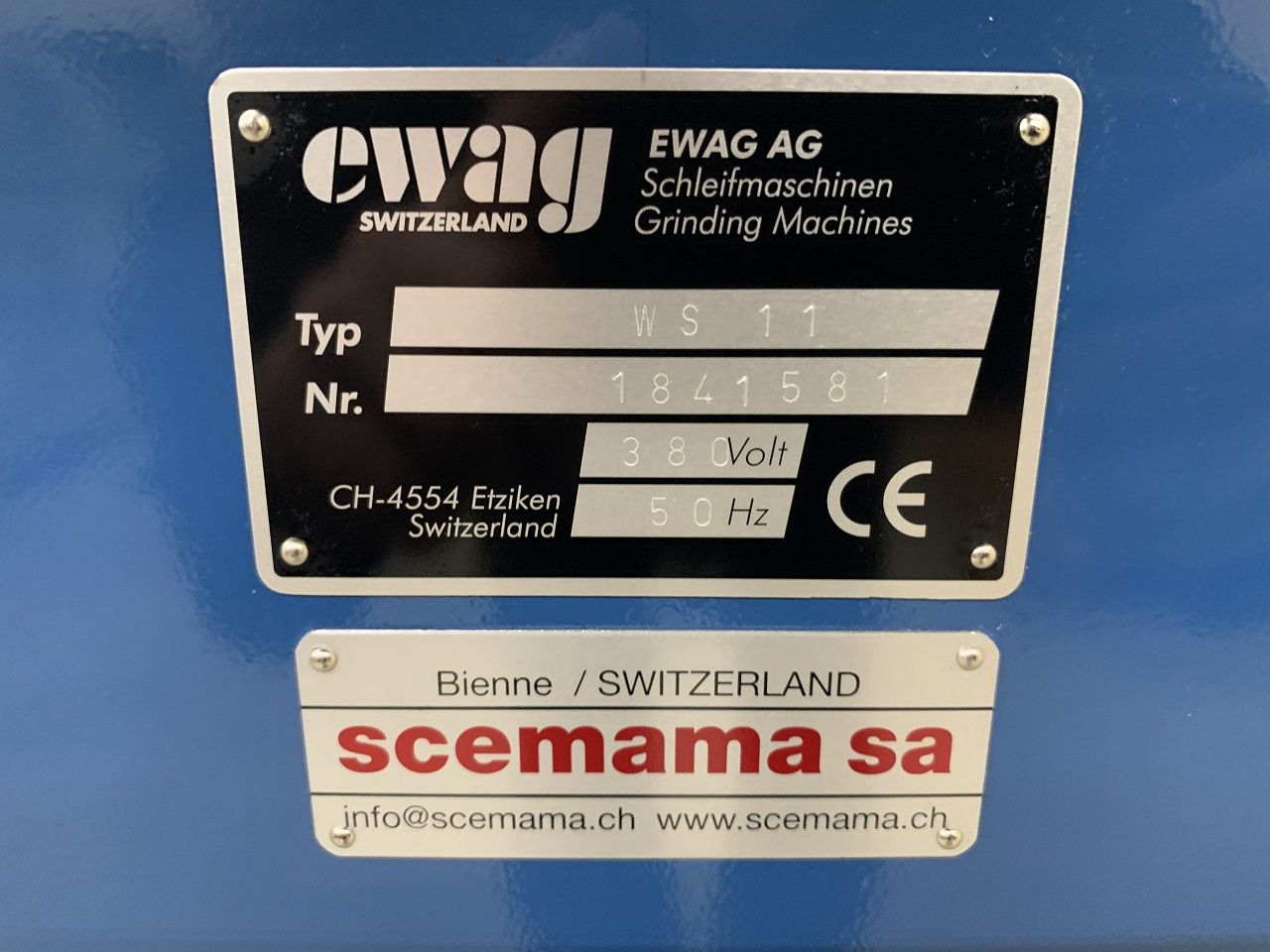

  • Manufacturer:
  • EWAG
  • Model:

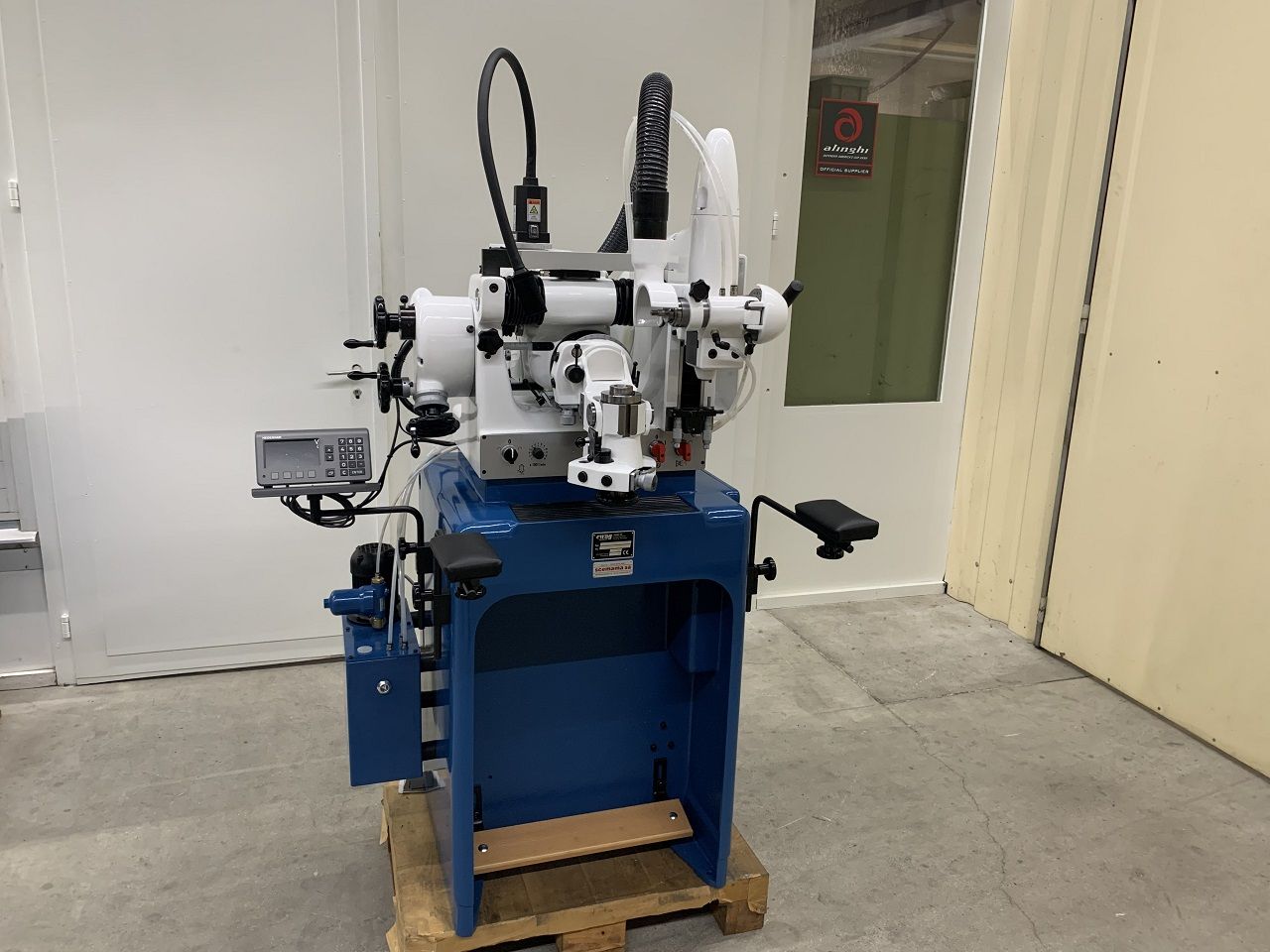

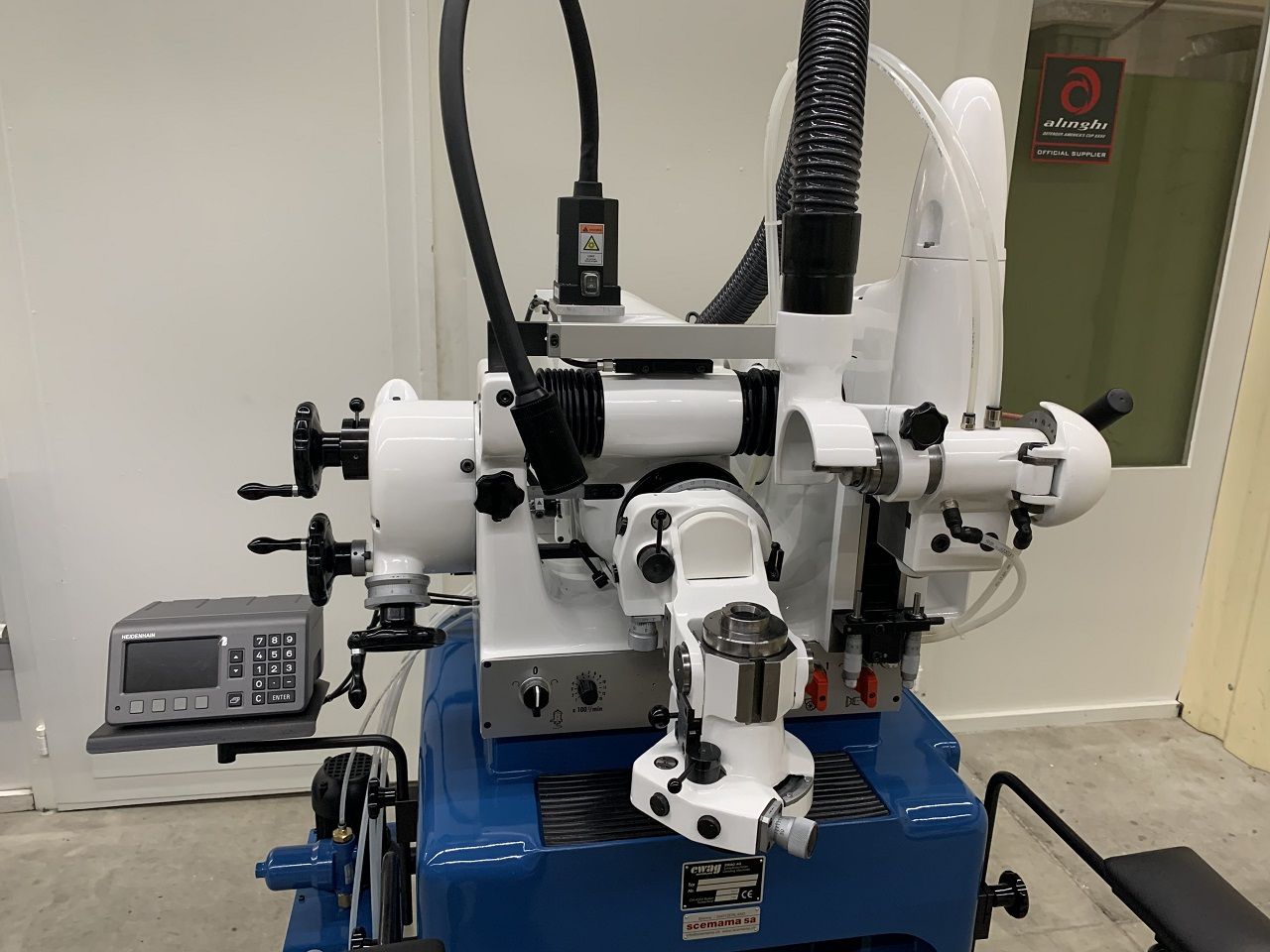

  • EWAG TYPE WS-11 UNIVERSAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin: Swiss
  • Voltage : 400/ 380 / 50 / 3
  • Netweight : ab. 350 kg
  • Dimensions : 82x85x156 cm
  • Total power : max 2 kVA
  • Custom position : 8460.2930
  • TECHNICAL DATA
  • WHEELHEAD
  • Spindle speeds (both directions) : 2500/3500/4800/6800 RPM
  • Grinding motor : 0,3 kW
  • Vertical grinding stroke, straight : 100 mm
  • Fine setting range of micrometer stops : 25 mm
  • Micrometer stops graduated to : 0,01 mm

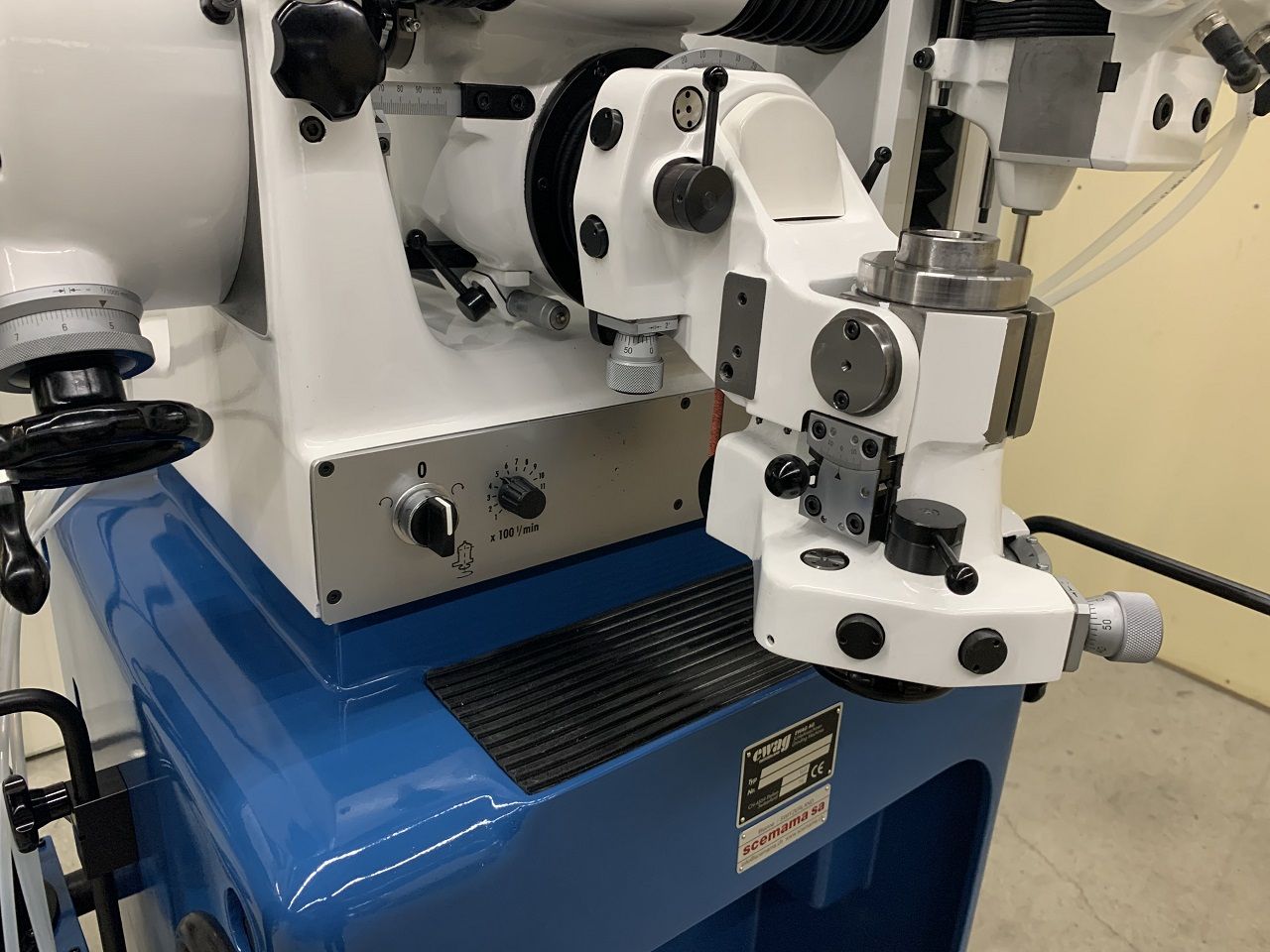

  • WORKHEAD
  • Spindle speeds, stepless in both directions : 100-1300 RPM
  • Workhead motor : 0,25 kW
  • Number of teeth in index plate : 120
  • Indexing with fixed pawl : every 3°
  • Indexing with angular micrometer : every 2′
  • Collets : W-20
  • Cross feed stroke, horizontal : 100 mm
  • Rapid feed, per turn of handwheel : 2 mm
  • Fine feed, per turn of handwheel : 0,1 mm
  • Fine feed, graduated to : 0,001 mm
  • Swivelling range of workhead
  • a) in main plane : 165°
  • indexing with fixed pawl : every 3°
  • indexing with angular micrometer : every 2′
  • b) in grinding plane : about 15°
  • indexing : at 0° and 10°
  • Transverse movement : 80 mm
  • Fine setting range of micrometer stop : 25 mm
  • Micrometer graduations : 0,01 mm
  • Dust extractor motor : 0,18 kW
.
