MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Makino
  • Model:
  • MACHINING CENTER MAKINO TYPE PS-105
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

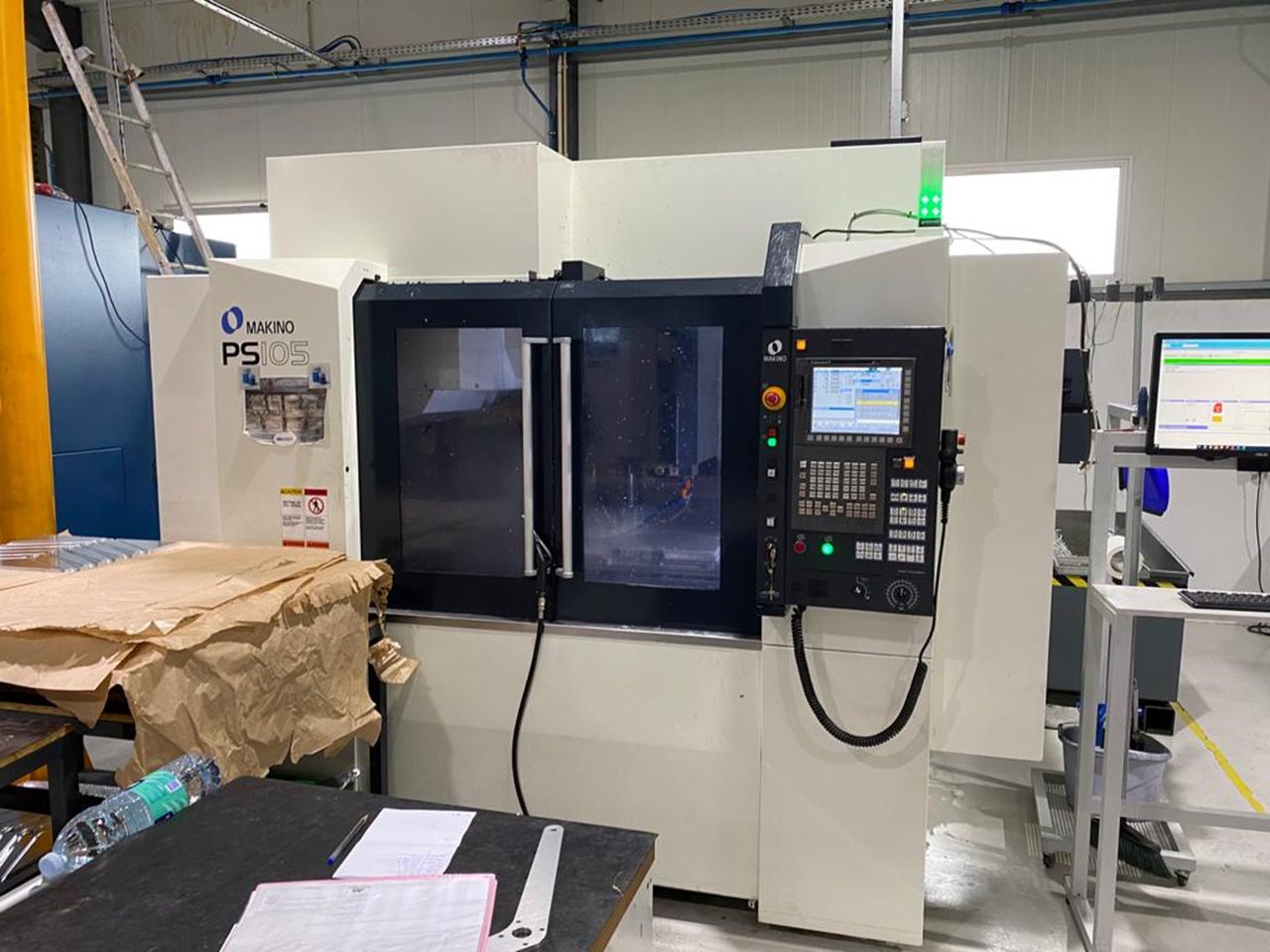

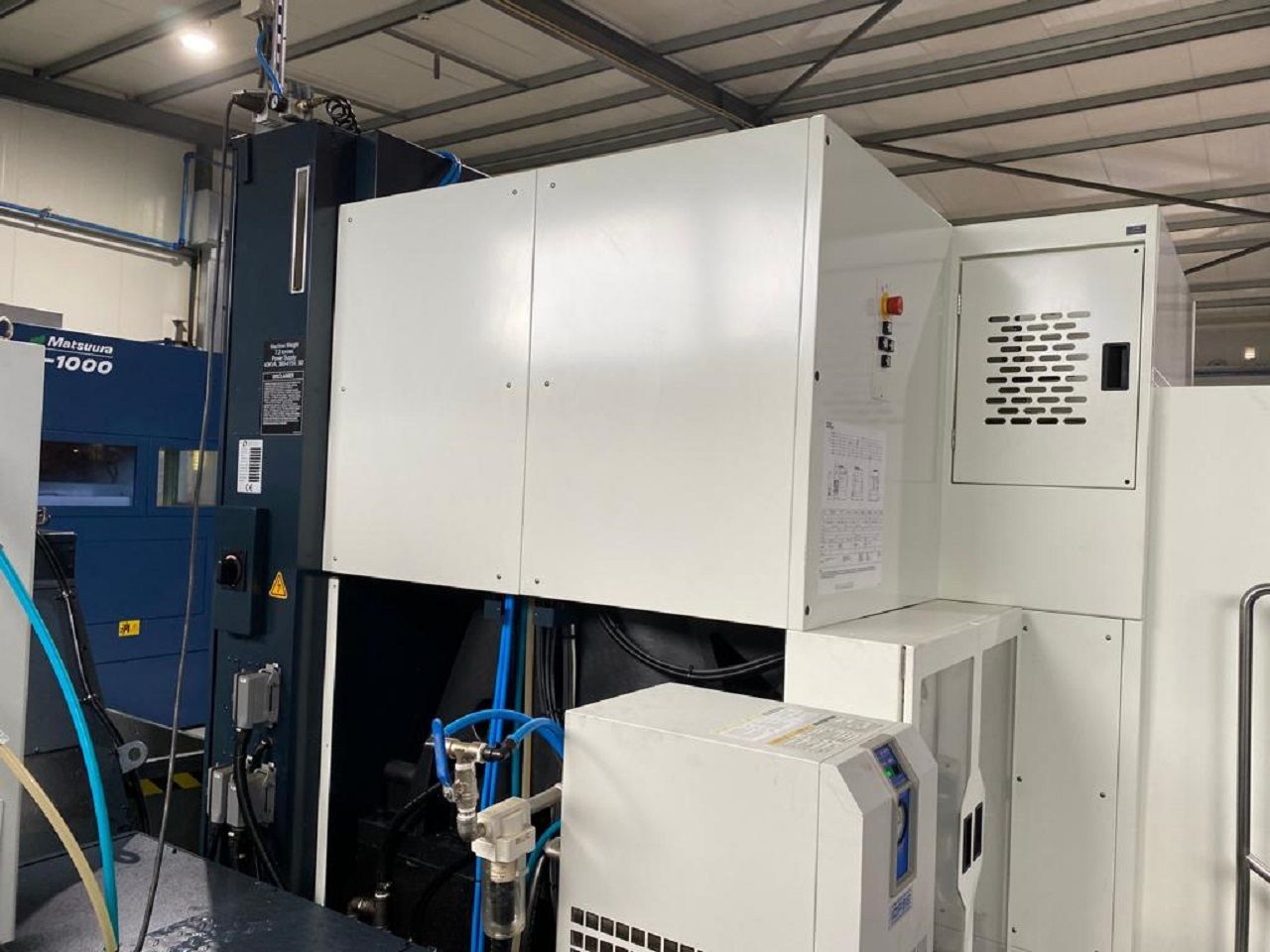

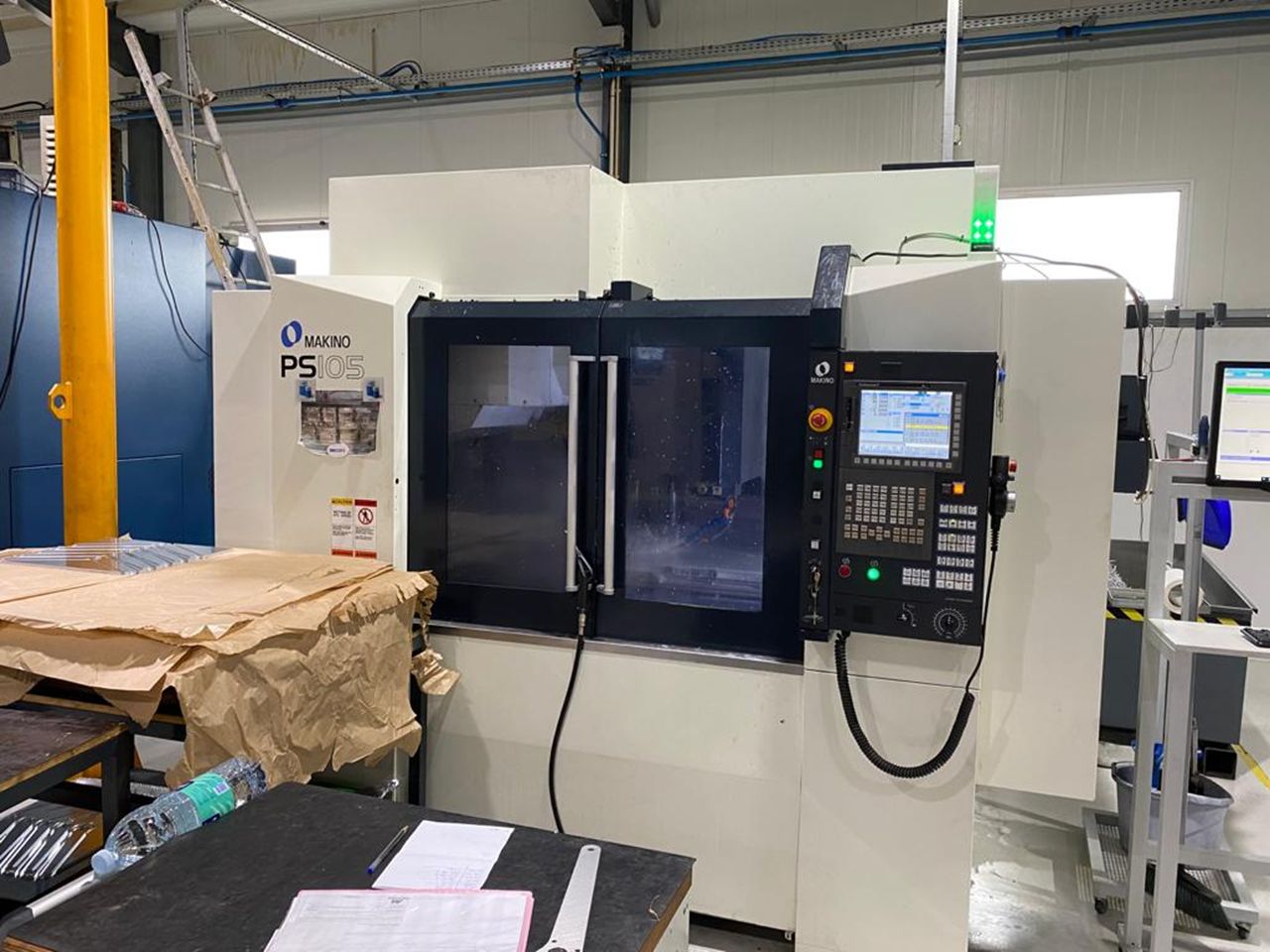

MACHINING CENTER "MAKINO" TYPE PS-105

Reference: 2320003

Mfg.2017

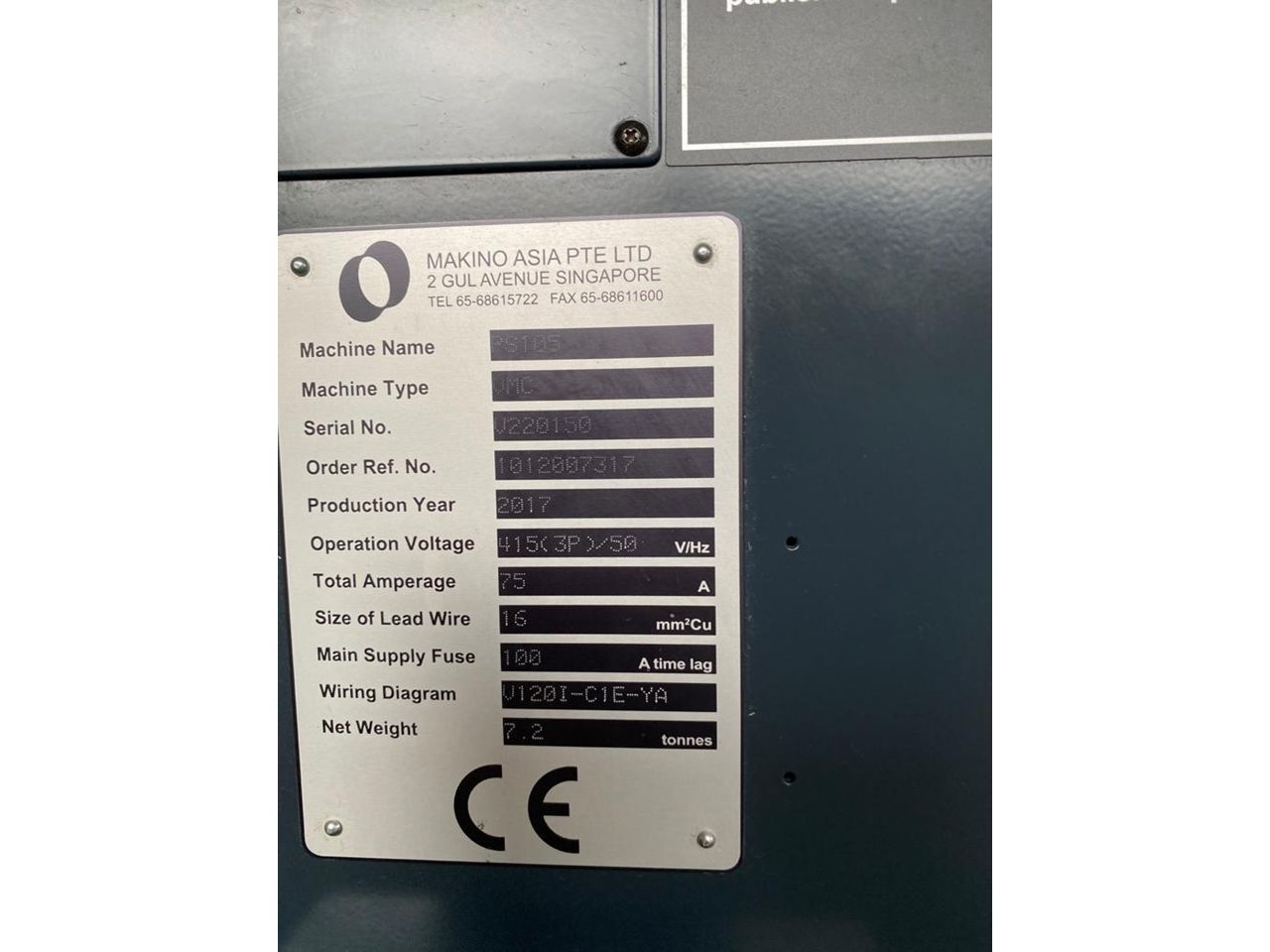

Information

Manufacturing originJP
Voltage415V/3ph/50Hz
Netweight7200 kg
Custom position8459.6120
TECHNICAL DATA (standard)
Table1300 x 510 mm
X-axis1050 mm
Y-axis510 mm
Z-axis460 mm
Spindle speed14000 min-1
Spindle taper CAT 40 (HSL-A63 opt)
Rapid traverseX : 48000 mm/min
Y & Z : 36000 mm/min
Cutting feedrate30000 mm/min
Maximum payload800 kg
ATC capacity 30 tools (60 option)
Maximum tool weight8 kg
errors and omissions excepted-data given without obligation
