Manufacturer
Qualters & Smith
Model

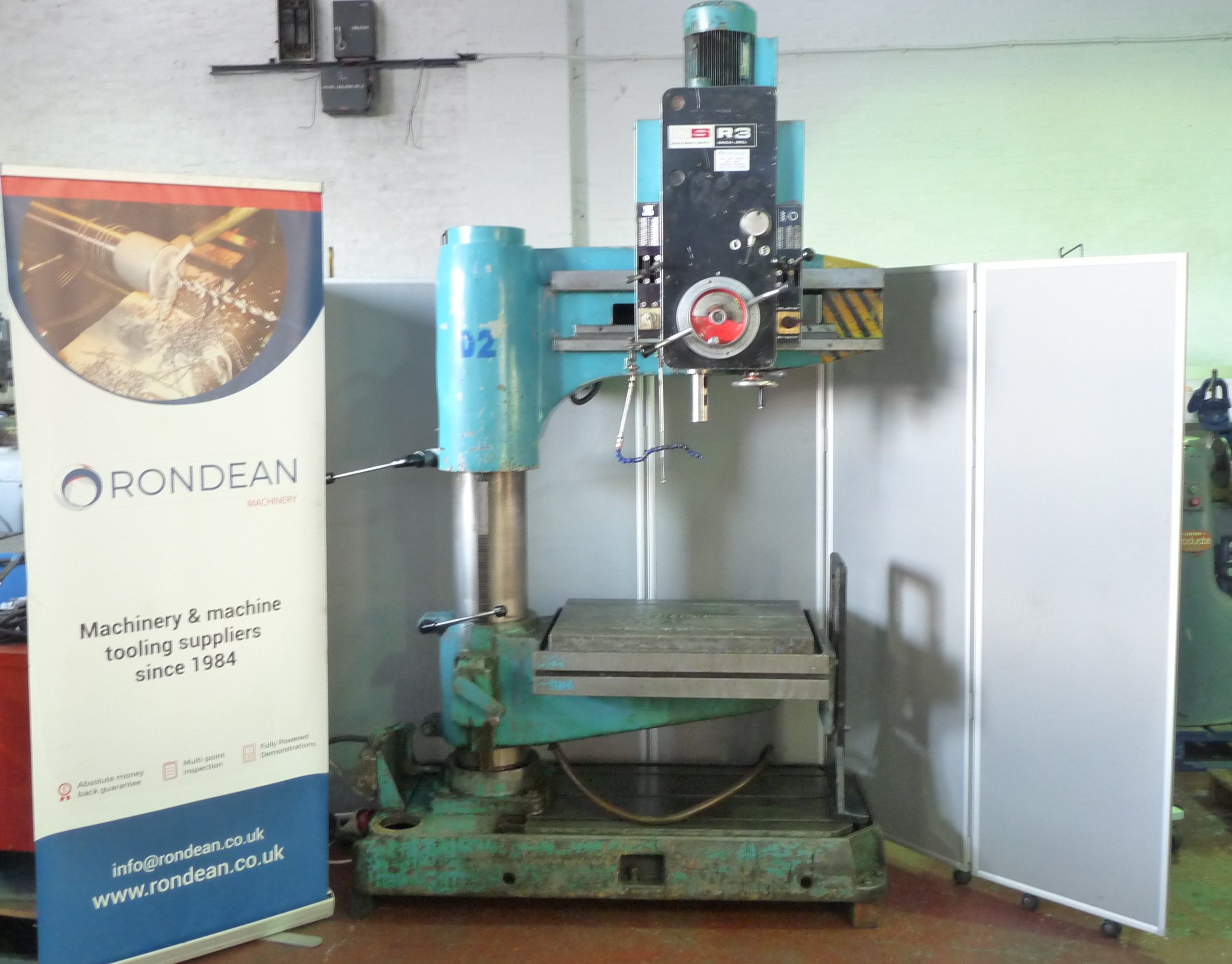

R3 Radial Arm Drill
Capacity
4 MT Spindle
33” (840mm) Maximum Spindle centre to column
8 ½” (216mm) Minimum Spindle centre to column
46” (1170mm) Length of arm (centre of column to end of arm)
10” (254mm) Travel of Spindle
28” (711mm) Maximum Spindle to table
5 ½” (140mm) Minimum Spindle to table
29 ½” x 21” (749 x 533mm) Table
12 ½” (318mm) Vertical table movement
45” (1144mm) Maximum Spindle to baseplate
35” (889mm) Minimum Spindle to baseplate
38 ¼” x 26” (970 x 660mm) Baseplate
Feeds
9: .003 -.036 in/rev (.076-.914 mm/rev
Speeds
12: 60-1750 rpm
Safety
Brake & telescopic trip
Main Motor
3HP (2.2 kW)
Power
Three Phase Electric's
Dimensions
1550 x 660 x 2590mmm high 1850kg
