MACHINE INFORMATION AND SPECIFICATION
- Category:
- Drilling
- Subcategory:
- Drilling (General)
- Manufacturer:
- MACH
- Model:

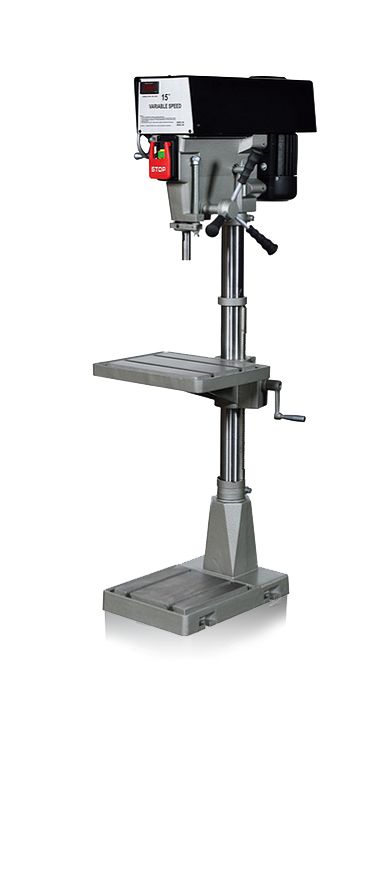

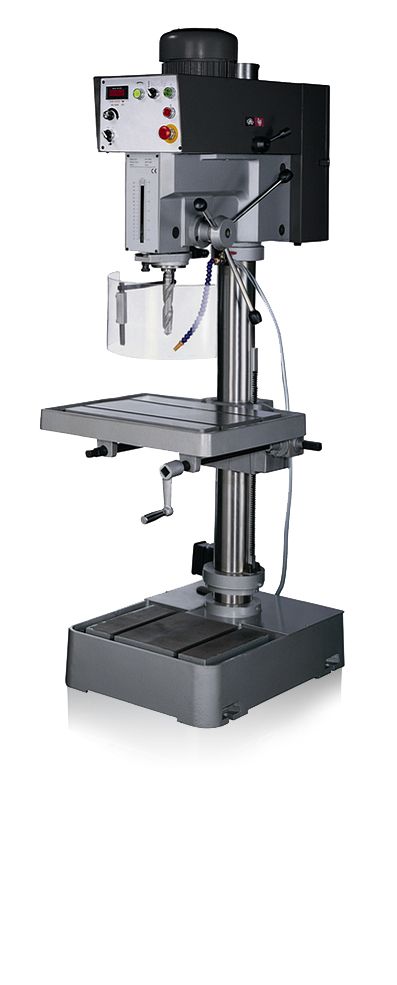

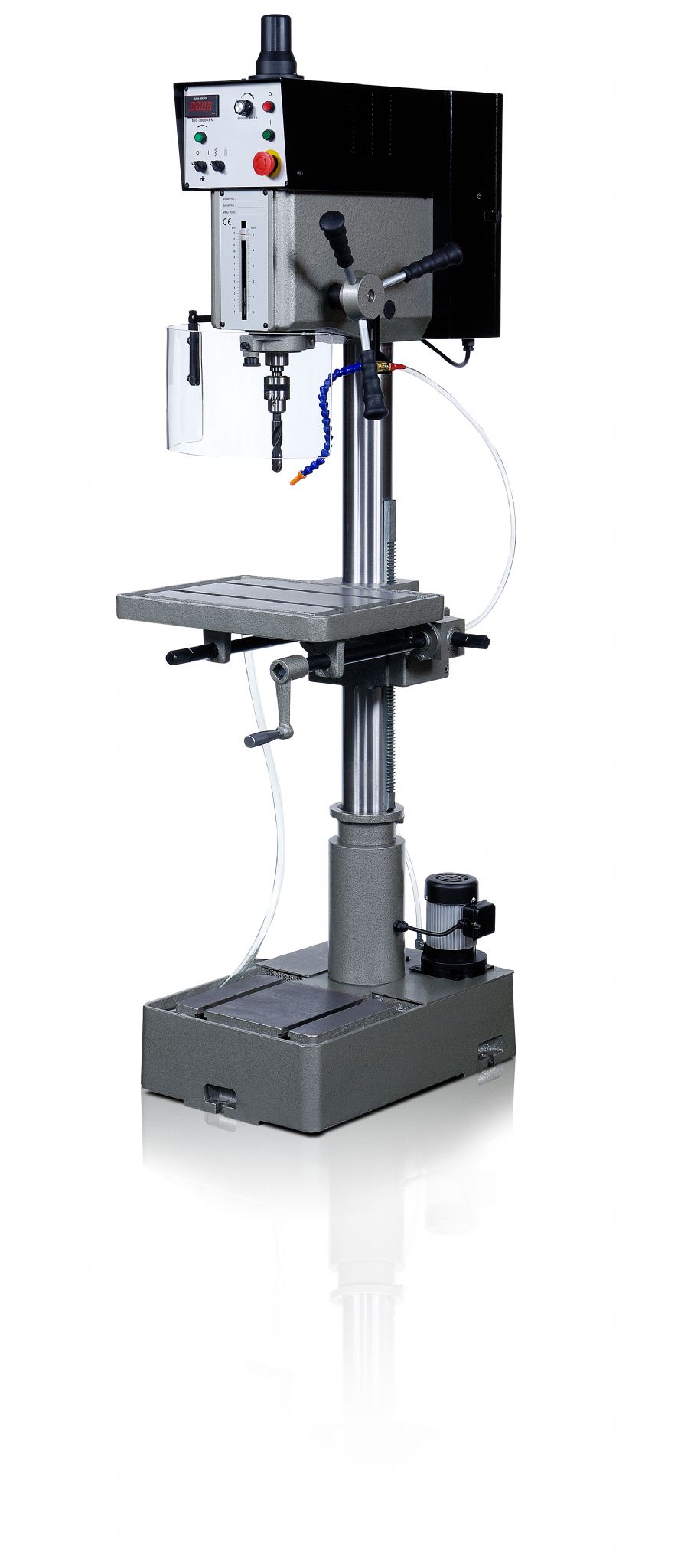

- DRILLING MACHINE DP-915AH
- Condition:
- NA
- YOM:
- N/A
- Control:
- NA
- Price:
- POA
- Seller:
- Sorted machine sales ltd.
- Country:
- United Kingdom
DESCRIPTION
-
FEATURES
DIGITAL RPM READOUT
HIGH PRECISION T-SLOT WORKTABLE
INTEGRATED COOLANT SYSTEM (OPT.)
SINGLE PHASE (240V) AVAILABLE
SPECIFICATION DP-915AH
DRILLING CAPACITY STEEL 25MM (1") CAST IRON 32MM (1-1/4")
TAPPING CAPCITY STEEL 16MM (5/8") CAST IRON 19MM (3/4")
SWING 408MM (16")
SPINDLE TAPER MT3
SPINDLE TRAVEL 135MM (5-1/3")
QUILL DIAMETER 62MM (2-2/5")
SPINDLE NOSE TO TABLE 683MM (26-4/5")
COLUMN DIAMETER 92MM (3-2/3")
SPINDLE NOSE TO BASE 1100MM (43-1/3")
TABLE SIZE (L X W) 460 X 360MM (18" X 14")
BASE SIZE (L X W) 590 X 390MM (23" X 15")
TABLE SLOT 14MM (9/16")
SPINDLE (RPM) 150 - 3000
MOTOR 2HP / 3HP / 1HP
COOLANT MOTOR 1/8HP / 3HP
NET WEIGHT / GROSS WEIGHT 220 / 260KG (484 / 572LB)
MACHINE SIZE (L X W X H) 915 X 460 X 1860 (36" X 18" X 73")
