MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

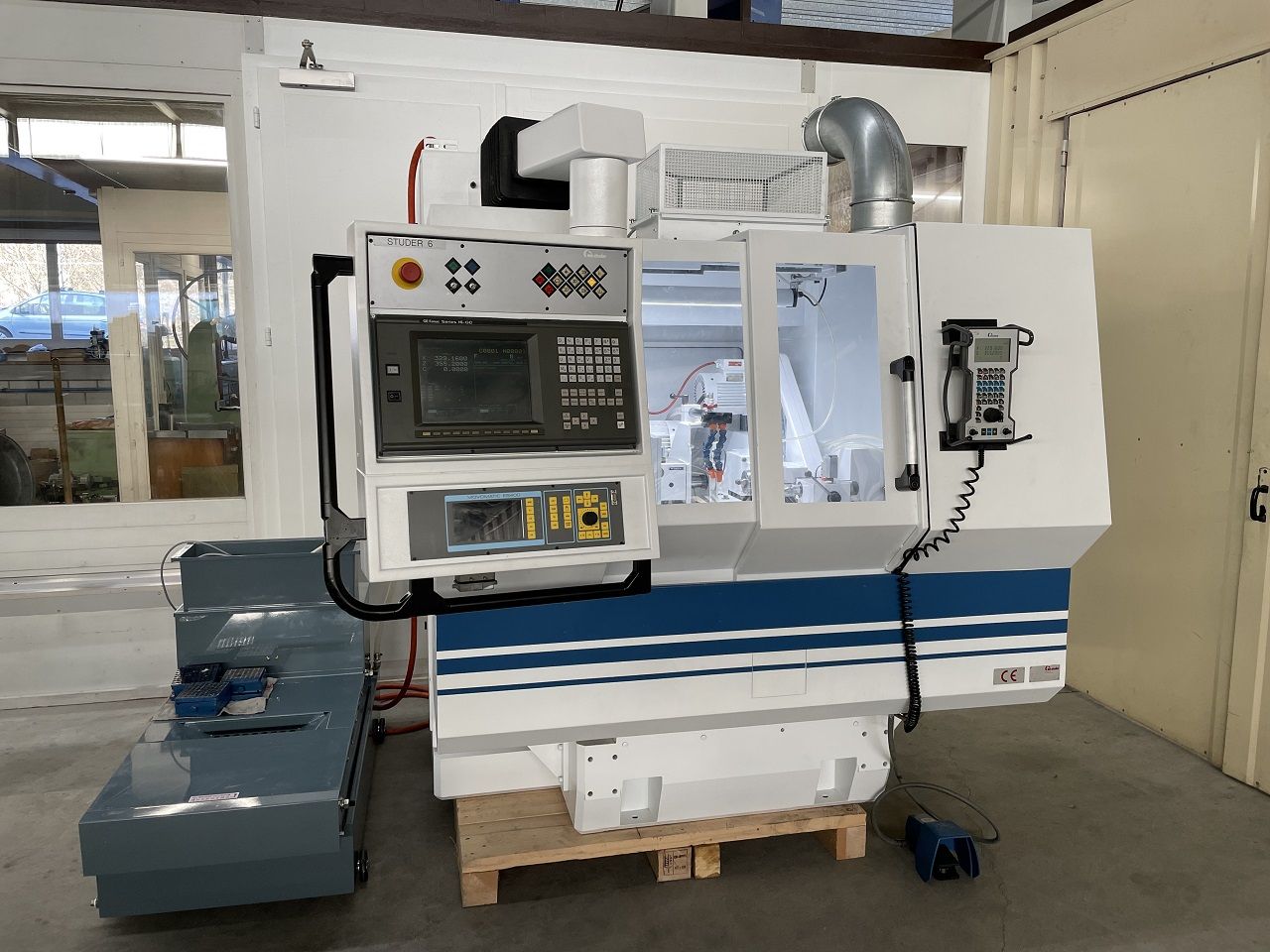

  • STUDER S-20 CNC CYLINDRICAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • Fanuc series 16 GC
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin : Swiss
  • Netweight : 2000 kg
  • Dimensions : 180x170x200 cm
  • Custom position : 8460.2320 :
  • TECHNICAL DATA
  • (standard)
  • Distance between centers : 400 mm
  • Centers height : 100 mm
  • Longitudinal slide Z
  • Max. travel : 420 mm
  • Grinding length, max : 400 mm
  • Speed : 0.001 to 10’000 mm/min
  • : Resolution : 0.0001 mm
  • Wheelhead slide X
  • Max. travel : 150 mm
  • Speed : 0.001 to 10’000 mm/min
  • Resolution : 0.0001 mm
  • Wheelhead
  • External grinding wheel, Ø x width x bore : 350 x 32 x 1217 mm
  • Driving power : 3 kW
  • Peripheral speed : 35 m/s
  • Coarse adjustment : 120 mm
  • Swivelling range rightwards : 30°

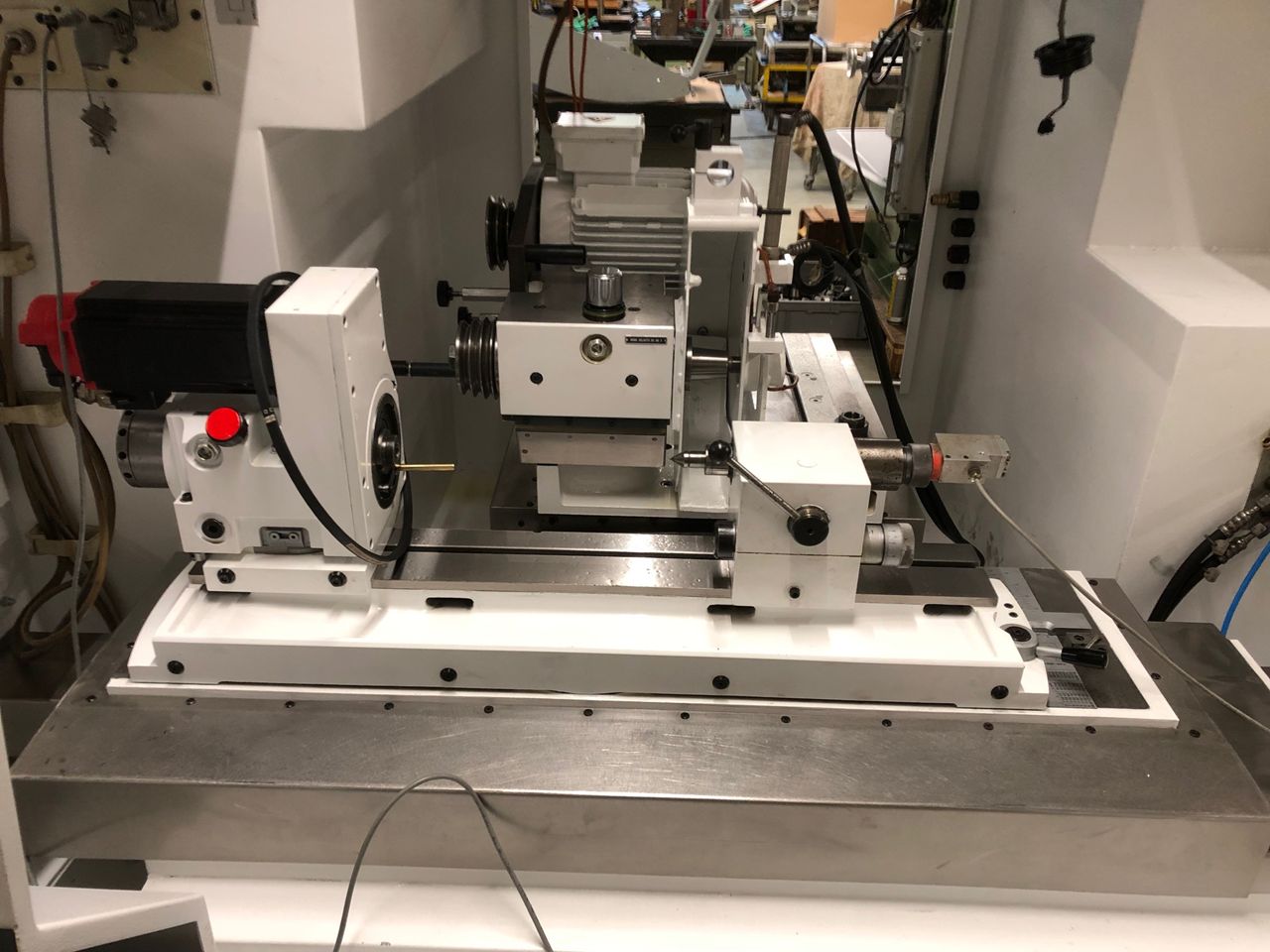

  • Workhead
  • Swivel range : 0 – 90°
  • Speed range : 30 – 1200 min-1
  • Fitting taper : MT4
  • Collets : W20
  • Power requirement : 0,5 kW
  • Tailstock
  • Fitting taper : MT2
  • Barrel travel : 20 mm
  • Control : Fanuc series 16 GC
