MACHINE INFORMATION AND SPECIFICATION
- Category:
- Grinding
- Subcategory:
- Cylindrical Grinders
- Manufacturer:
- STUDER
- Model:

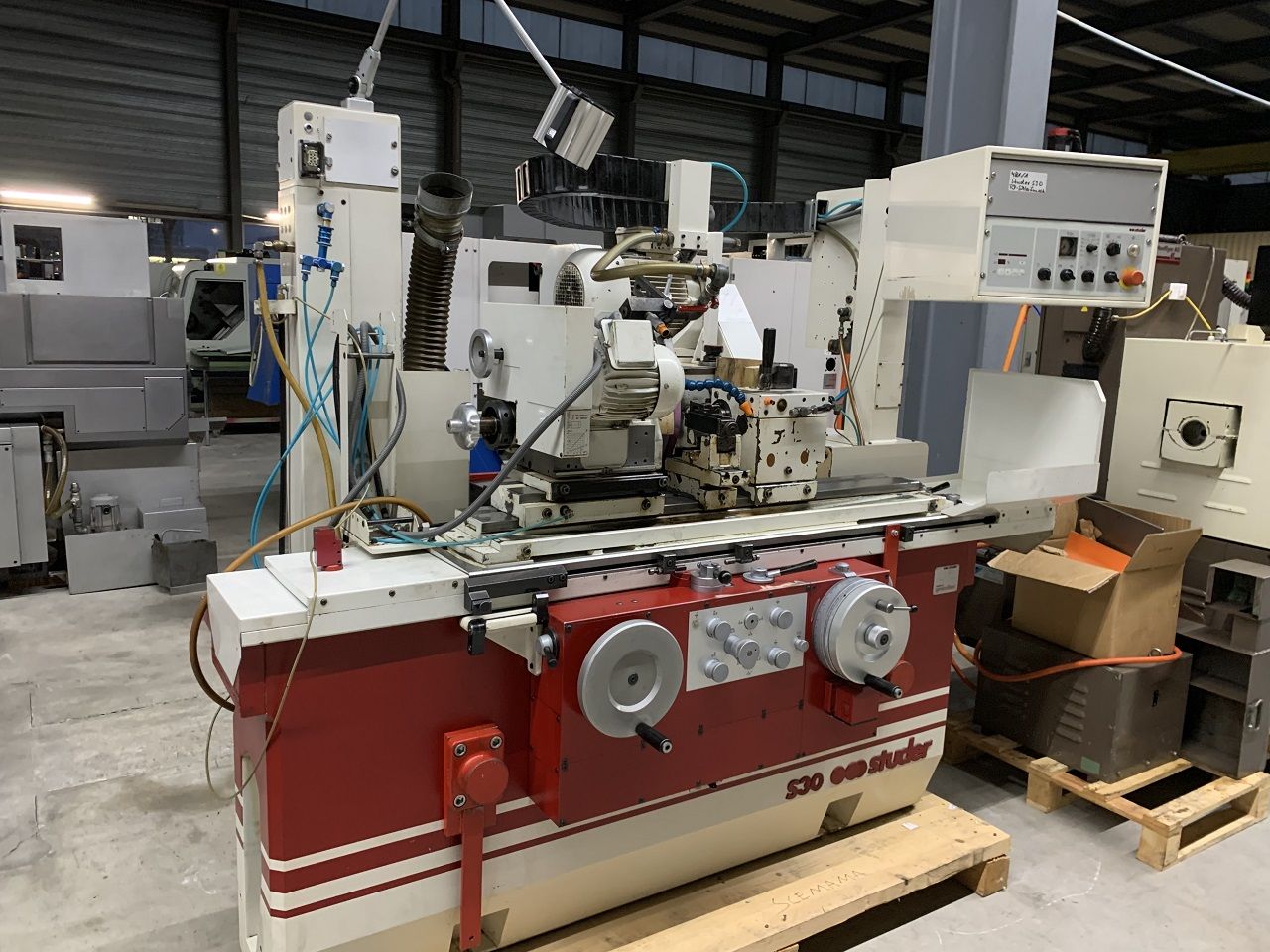

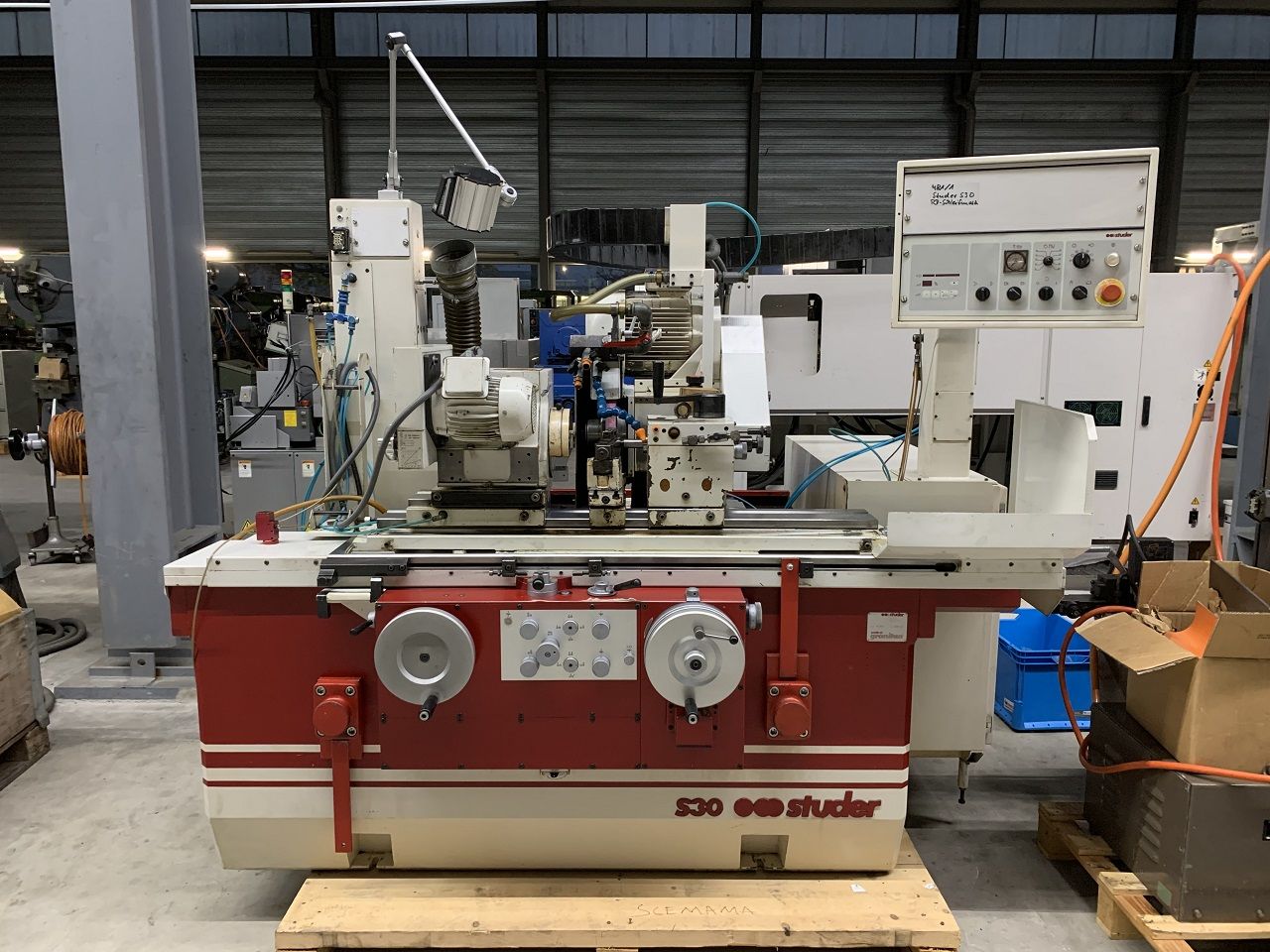

- STUDER S-30-1 CYLINDRICAL GRINDING MACHINE
- Condition:
- Used
- YOM:
- N/A
- Control:
- NA
- Price:
- POA
- Seller:
- SCEMAMA SA
- Country:
- Switzerland
DESCRIPTION
- INFORMATION
- Manufacturing origin : Swiss
- Voltage : 380/50/3
- Netweight : 3100 kg
- Dimensions : 230x155x170cm
- Total power : 13 kva
- Custom position : 8460.2920
- TECHNICAL DATA
- MAIN DIMENSIONS
- Centre height : 400-650-1000-1600 mm
- Travel : 450-700-1050-1650 mm
- LONGITUDINAL SLIDE
- Max. travel : + 50 mm
- Min. automatic travel : 1,5 mm
- Speed : 50-5500 mm/min
- Reversal dwell : 0-6 sec
- Max. swivel of table : 12°/10°/8,5°/6°
- Air cushion of table and of workhead
- WHEELHEAD SLIDE
- Max. travel : 300 mm
- Rapid approach : 60 mm
- Plunge depth in diameter : 3,4 mm
- Infeed 1 : 0,012-6 mm/min
- Infeed 2 : 0,012-1,2 mm/min
- Incremental infeed : 0,001-0,05 mm

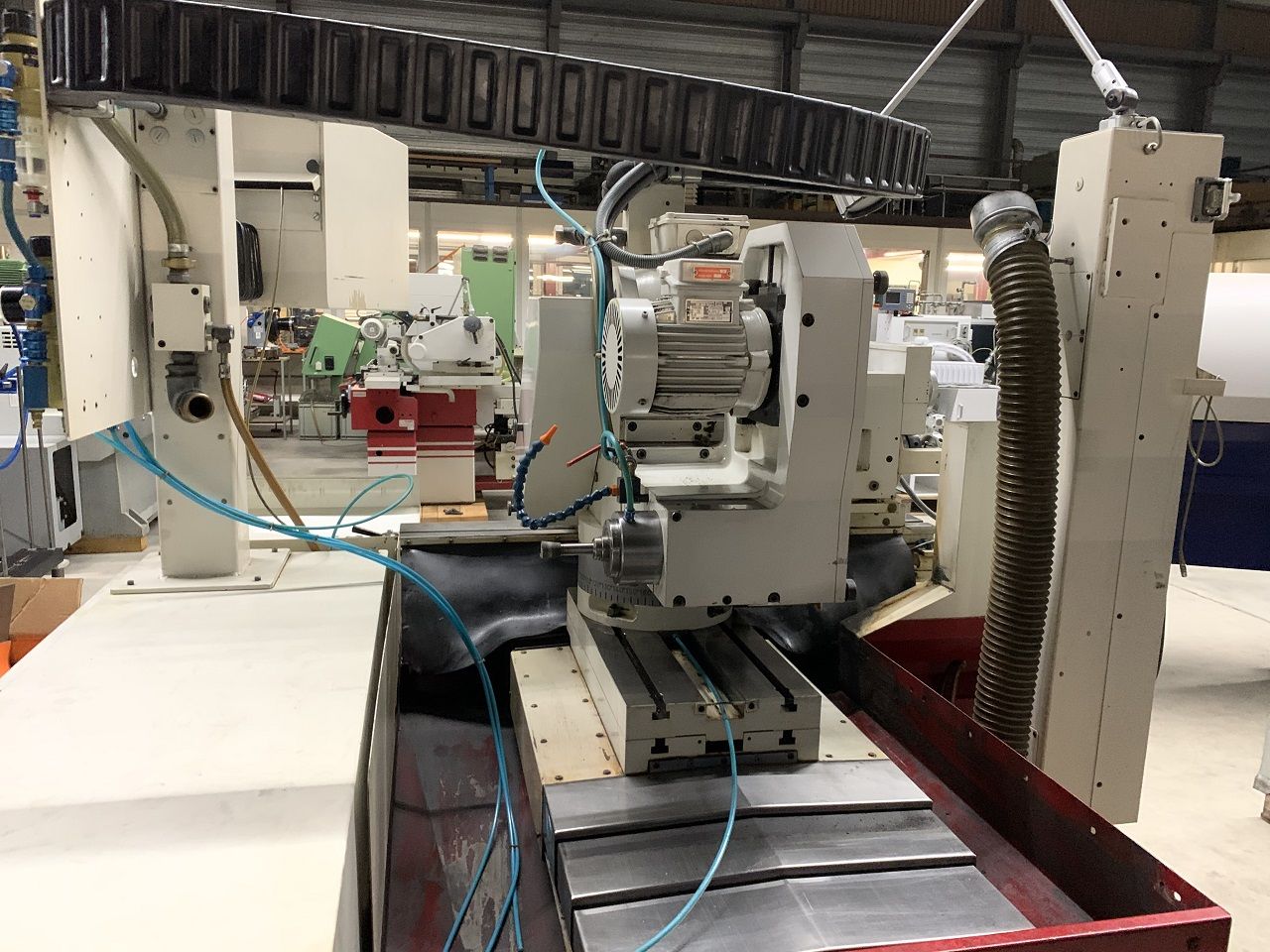

- WHEELHEAD
- External grinding wheel left : 400x80x127 mm
- Power requirement : 5,5 kW
- Peripheral speed : 35 m/sec
- RPM : 1670/2110 min-1
- Internal grinding attachment for belt spindles incl. drive
- WORKHEAD
- Swivel range : 0-90°
- Speed stepless : 30-1000 min-1
- Fitting taper : Morse 5
- Collets : W-25
- Power requirement : 0,55 kW
- Max. workpiece weight between centres : 130 kg
- Live grinding load : 100 Nm
- TAILSTOCK
- Fitting taper : Morse 3
- Travel of barrel : 35 mm
- Fine adjustment for cylindricity corrections : +- 40 um
- GUARANTEED ACCURACY
- Surface straightness over 630 mm : 0,003 mm
- Roundness on live spindle : 0,0003 mm
- CONNECTION LOADS
- Total power requirement max. : 13 kVA
- Max. permissible voltage fluctuations : -15% +10%
- Max. permissible frequency fluctuations : +- 3%
- Required air pressure : 5 bar
