MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DREHER
  • Model:
  • DREHER 2372 D-FPS
  • Condition:
  • Used
  • YOM:
  • 1994
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

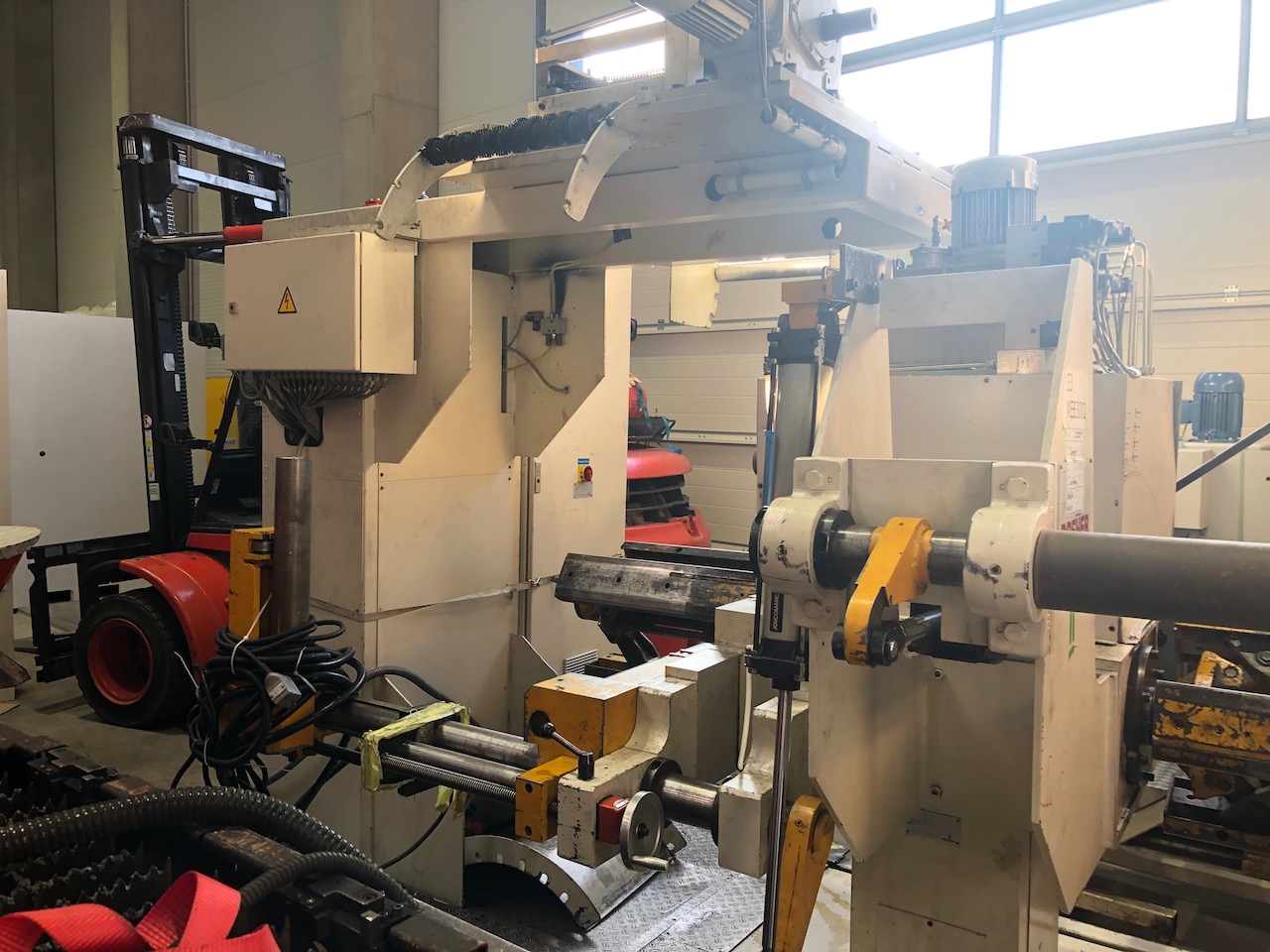

DESCRIPTION

  • Decoiler Coil weight: 2 x 2 ton
  • Material width: 380 - 500 mm
  • Coil exterior diameter: 1.300 - 1.400 mm
  • Spacing: 445 -530 mm
  • Leveller / Straightener Material width : 40 - 500 mm
  • Number of levelling rolls: 7 pcs.
  • Diameter of the levelling rolls: 60 mm
  • Number of pull in rolls: 2 pcs.
  • Diameter of the drawing rolls: 60 mm
  • Number of pull out rolls: 2 pcs.
  • Diameter of the pull out rolls: 60 mm
  • Material thickness: 0,4 - 1,6 mm
  • Cross section: 800 sq mm
  • Feeding speed: 0 - 30
  • Required power: 3 kW
