MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hwacheon
  • Model:

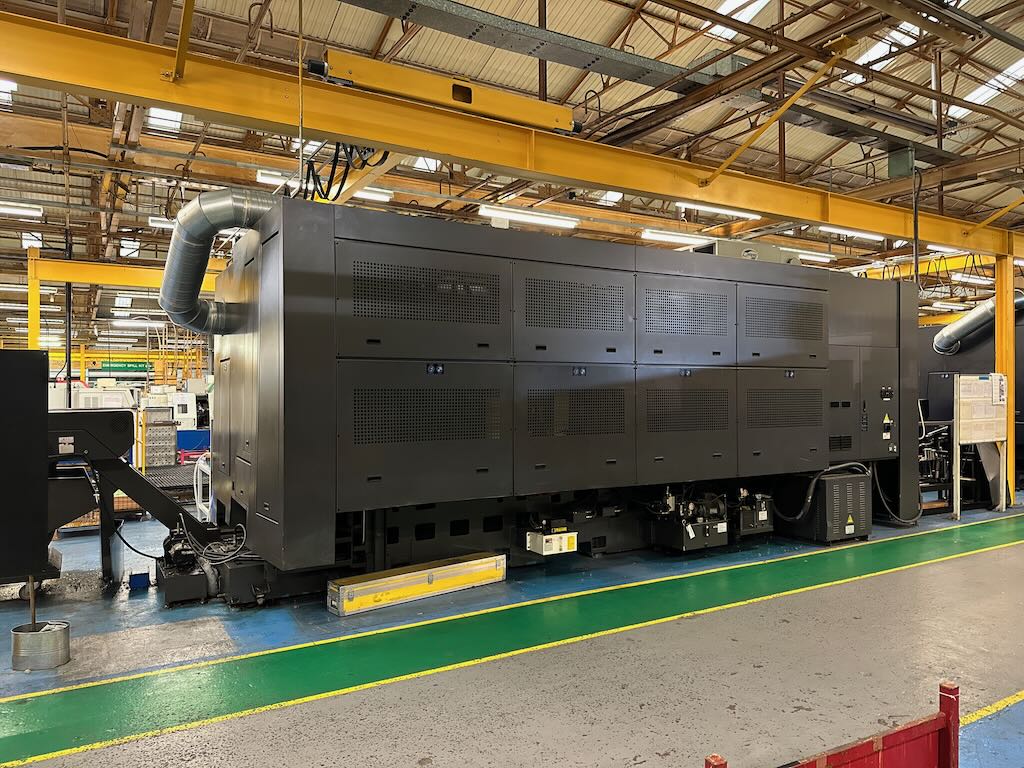

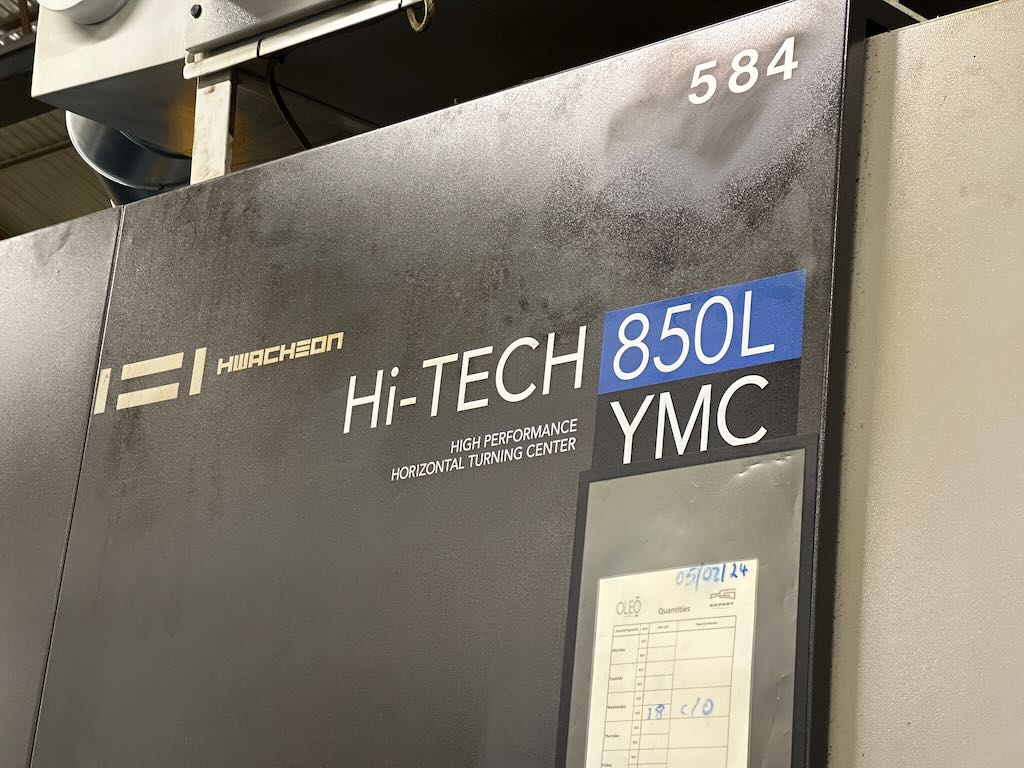

  • Hi-Tech 850L YMC Extra Large CNC Turning Center
  • Condition:
  • Used
  • YOM:
  • 2014
  • Control:

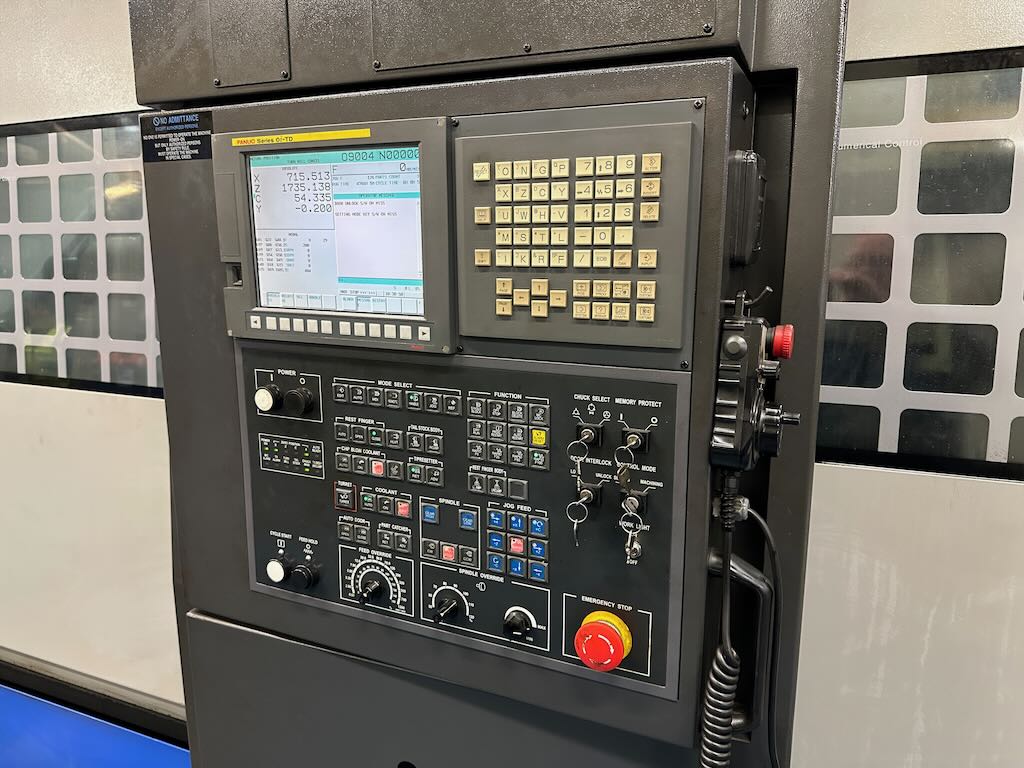

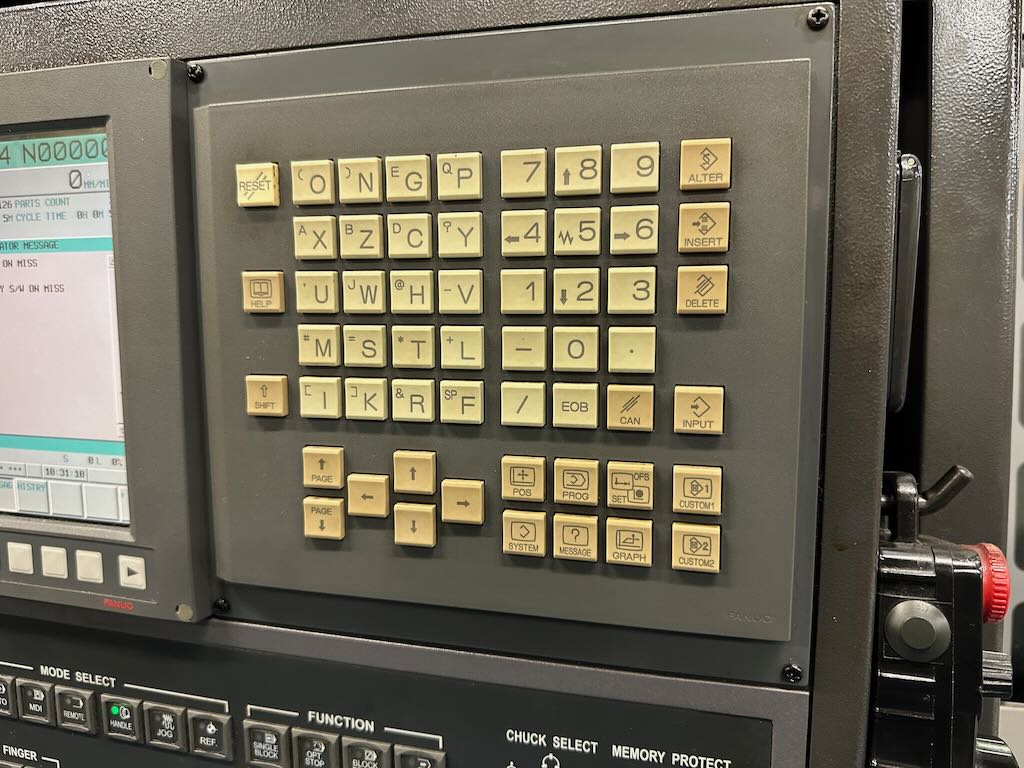

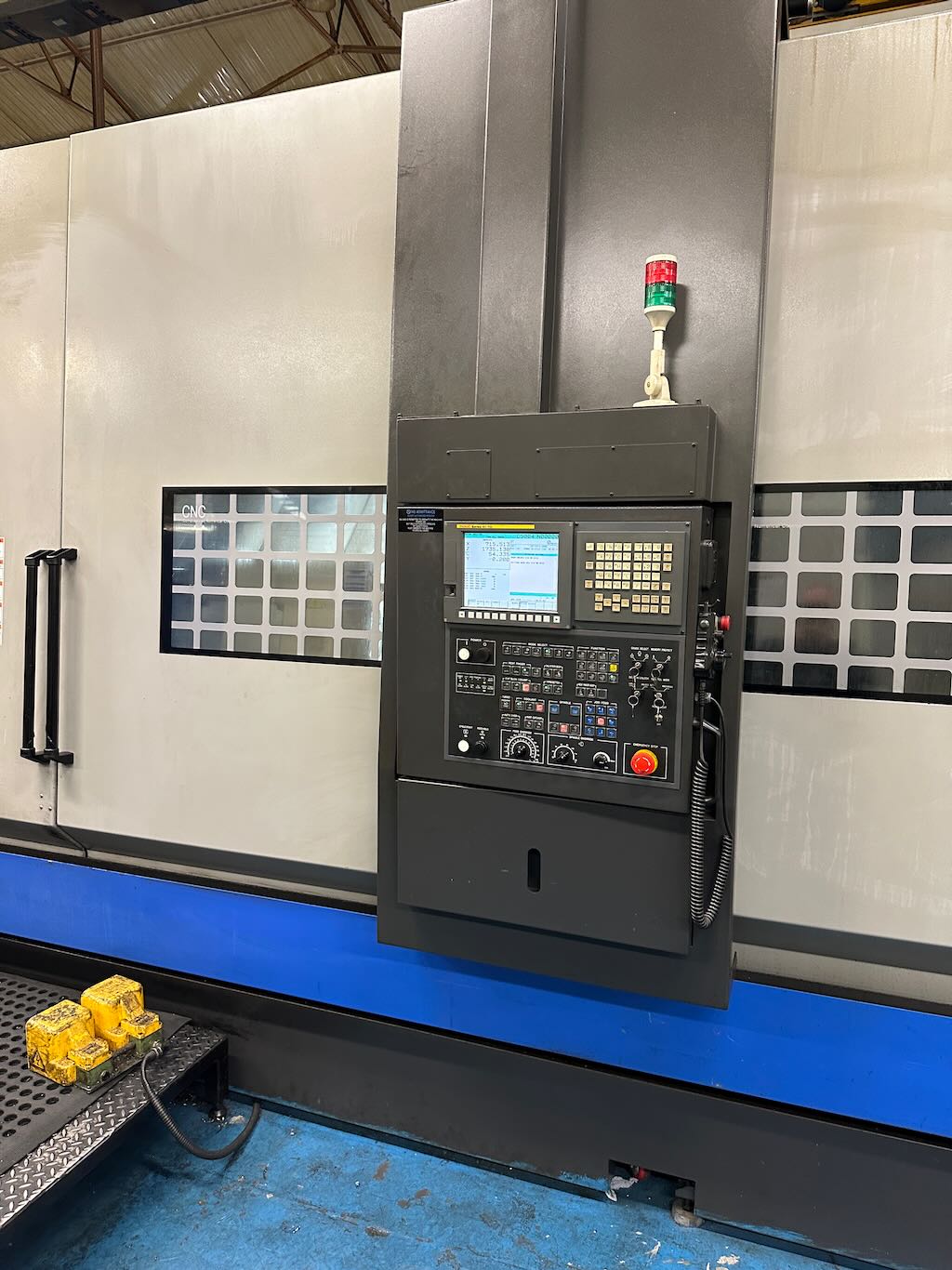

  • FANUC Oi-TD
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

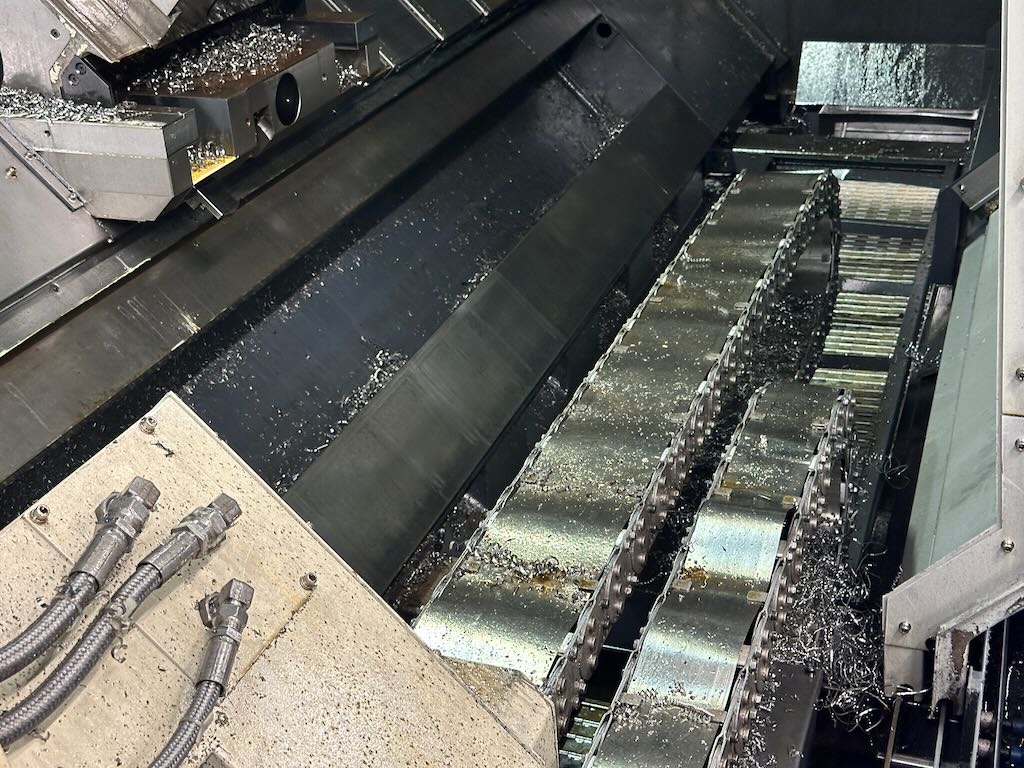

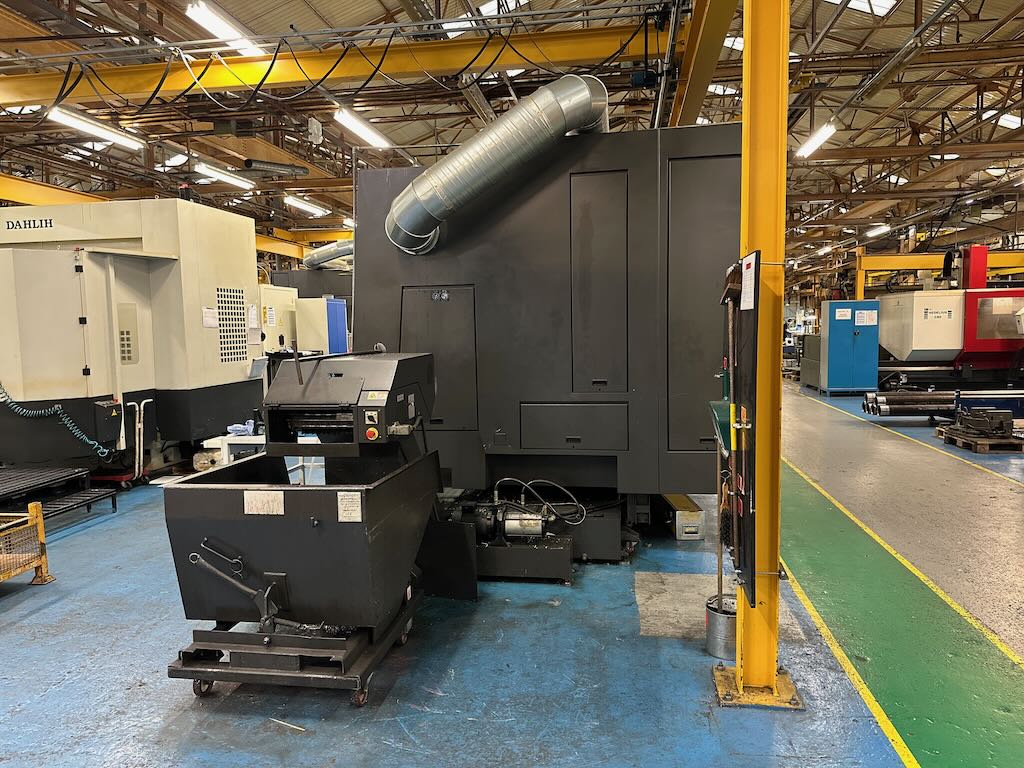

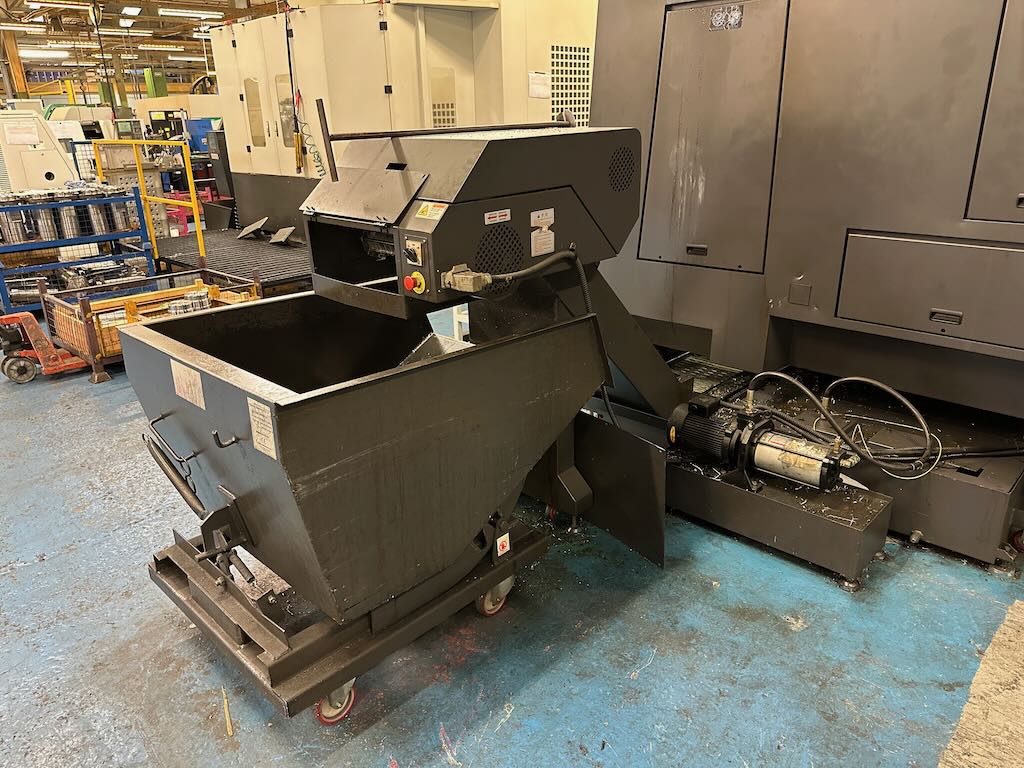

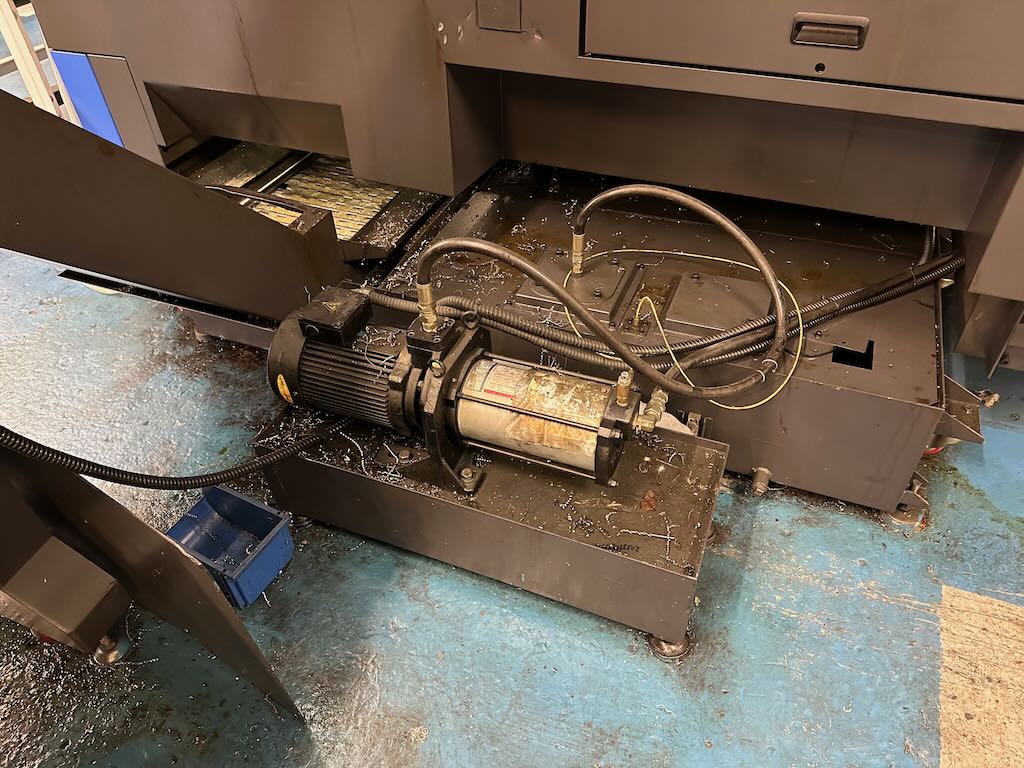

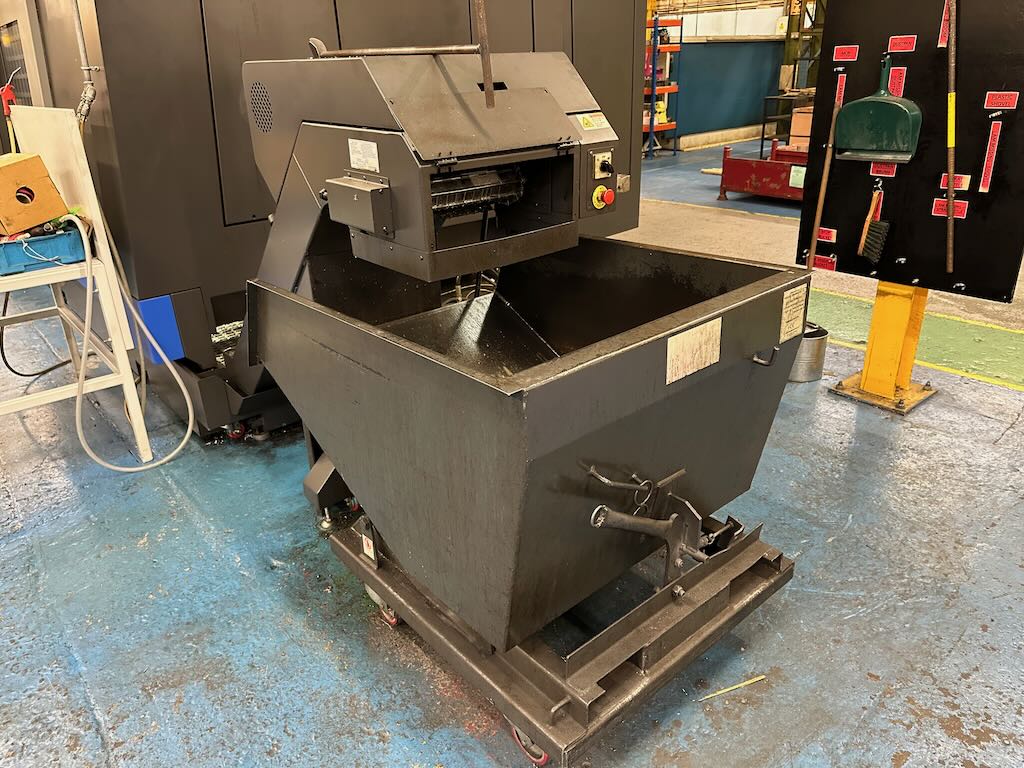

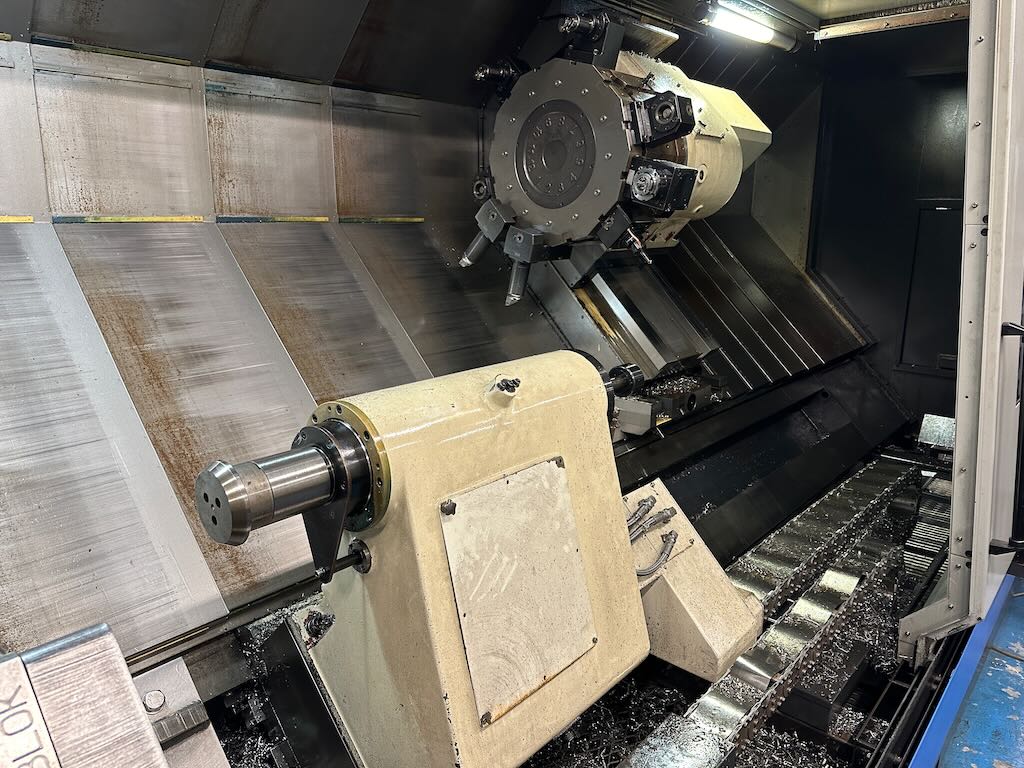

This machine is in excellent working condition and is currently still in production. Approximately 4900 hours. Viewing is by appointment only, please get in touch to arrange a viewing slot. Purchase of this machine includes FANUC/Hwacheon operating and maintenance manuals, tool presetter, hydraulic steady, coolant system, swarf conveyor and skip, optional filtermist unit and a tooling package. Please note tooling package may be subject to change. Swing Over Bed: 1050mm Swing Over Cross Slide: 825mm Maximum Turning Diameter: 920mm (with 24" Chuck) Standard Cutting Diameter: 380mm Maximum Turning Length: 3500mm (with 24" Chuck) Slideway Slant Angle: 60˚ Chuck: 400mm SMW KNCS Power Chuck X Travel: 485mm Z Travel: 3650mm Y Travel: 220mm X Rapid Traverse: 10m/min Z Rapid Traverse: 10m/min Y Rapid Traverse: 10m/min X Feed Motor: 6kW Z Feed Motor: 6kW Y Feed Motor: 7kW Spindle Nose: ASA A2-15 Chuck Size: SMW KNCS 400mm (3 Jaw) Spindle Speed: 1500RPM Spindle Bore: 185mm Max. Bar Size: 164mm Spindle Range Shift: 4 Step Gearbox Spindle Motor: 45/37kW Number of Tool Stations: 12 Standard Tool Size: 32mm Max. Dia. of Boring Bar: 80mm Index Time: 0.3 seconds Quill Dia.: 160mm Quill Stroke: 150mm Quill Taper: 6MT Spindle Motor: 11/7.5kW Max. Spindle Speed: 2500 RPM Max. Drill/Collet Size: ø32 / ER50 Max. Index Angle: 0.001˚ Length: 7860mm Width: 3030mm Height: 3020mm Machine Weight: 23,500kg Voltage: 415V Phase: 3 50Hz Overall Power Requirements: 75kVA
