MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • XYZ
  • Model:

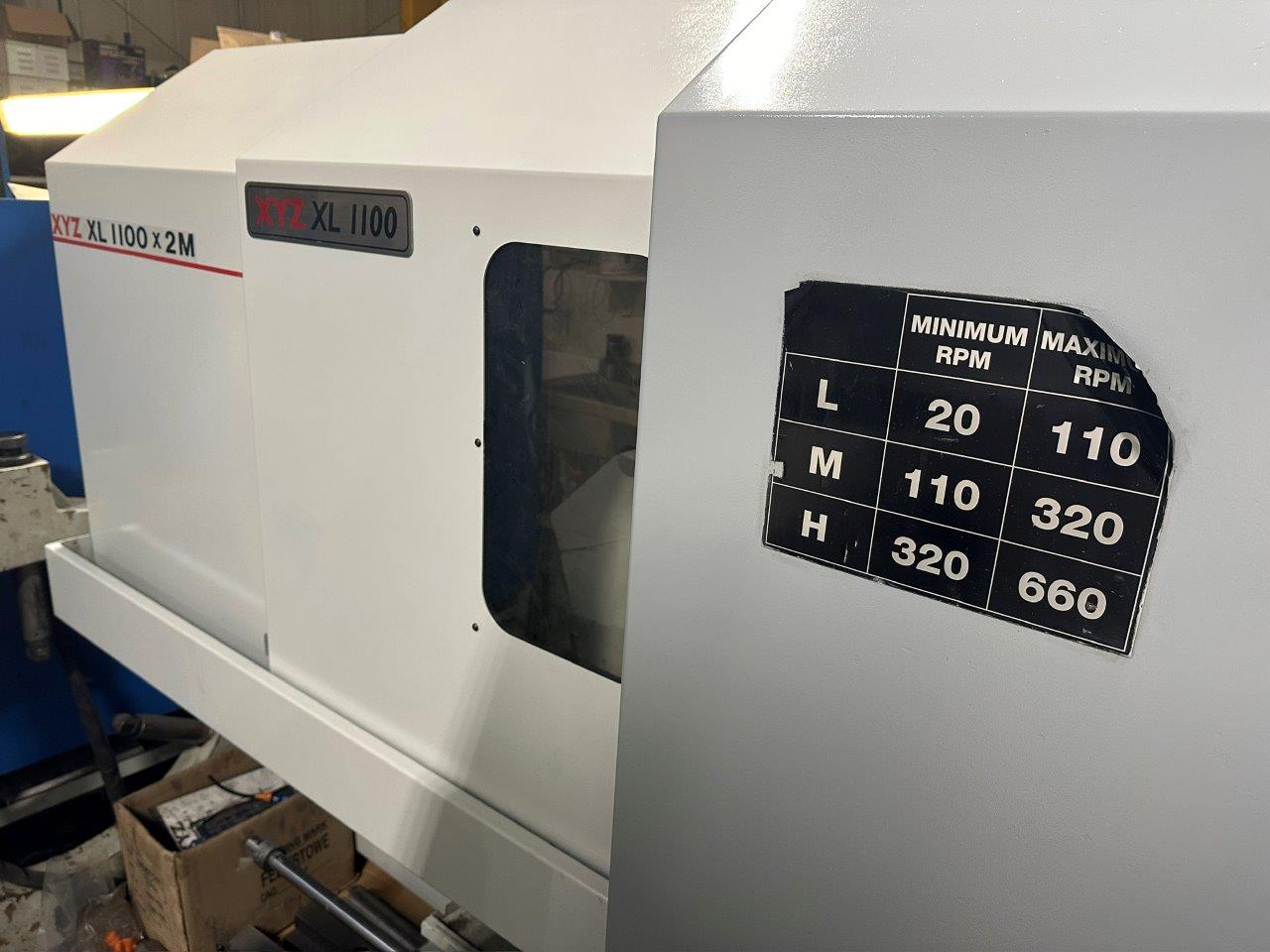

  • Used XYZ XL1100 x 2M CNC Lathe (4199)
  • Condition:
  • Used
  • YOM:
  • 2007
  • Control:
  • Siemens 810D
  • Price:
  • POA
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

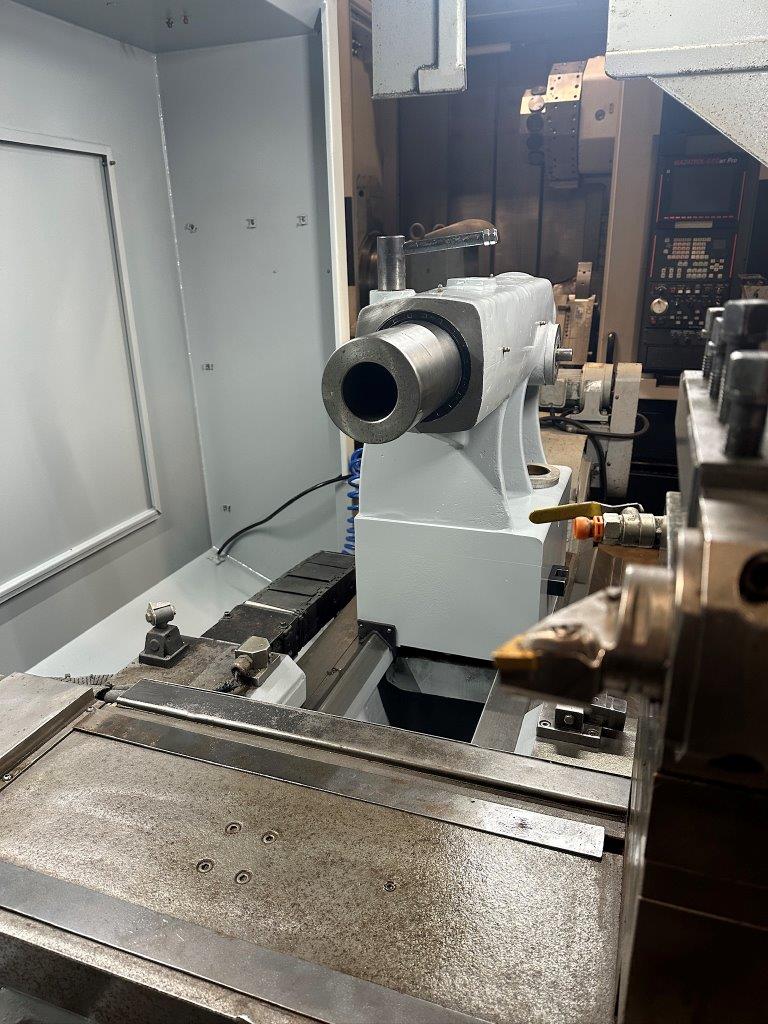

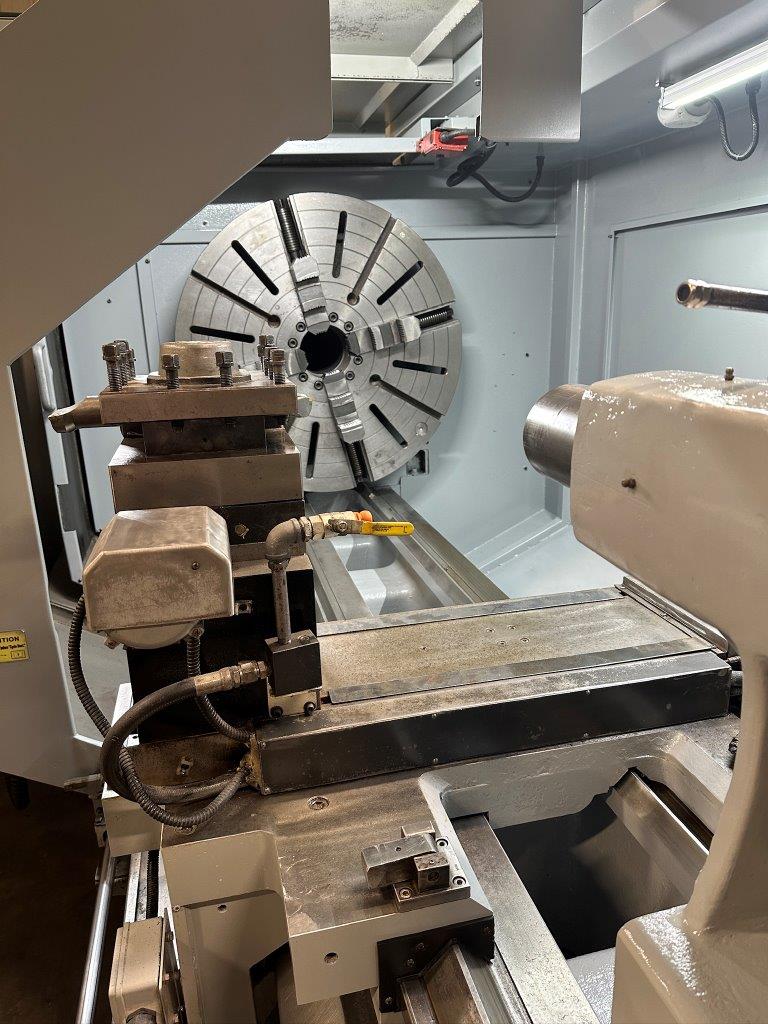

Used XYZ XL1100 x 2M CNC Lathe, 2007, s/n NC-A7-058C, Siemens 810D control, Swing over bed 1,100mm, Swing over cross slide 750mm,Distance between centres 2 metres, Spindle bore 160mm, Spindle motor 40hp, 20 to ,660rpm, c/w 1 metre 4 jaw chuck, 4-way tool post, 3 pt steady, swarf conveyor, Footprint 4,930 x 2,300 x 2,200mm high, Weight 8,100kgs
