MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:

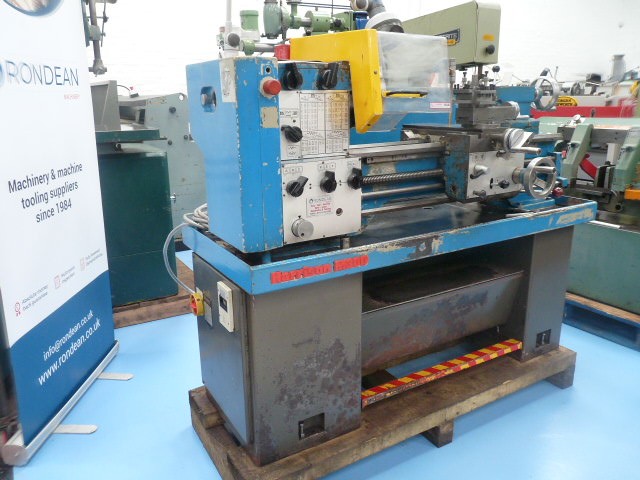

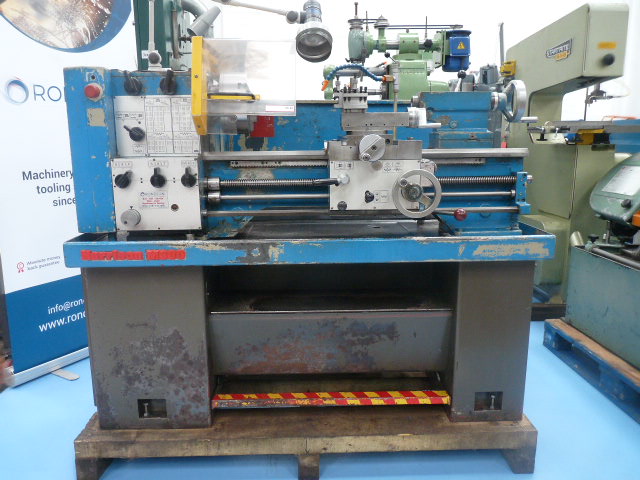

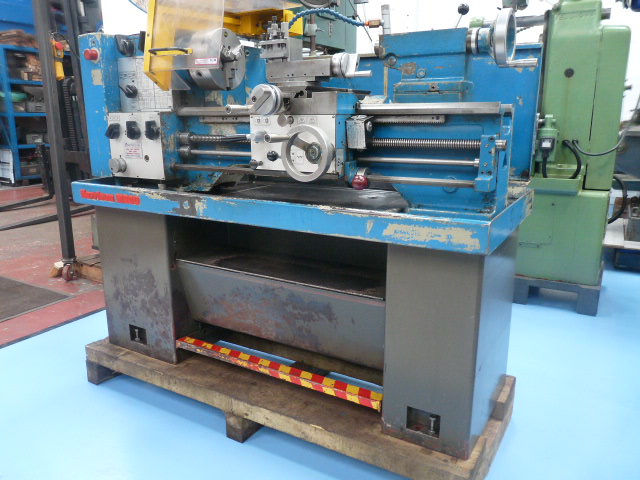

  • Harrison M300 Short Bed Centre Lathe
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • £4950 + VAT
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

Manufacturer Harrison Model: M300 Straight Bed Centre Lathe Between centres: 25" (635 mm) Height of centres: 6 1/2" (165mm) Swing over bed: 13" (330mm) Swing over cross slide: 8 1/4" (210mm) Spindle Bore: 1.5" (38mm) Equipment: 3 jaw chuck, quick change tool post 2 tool holders Features: Coolant Safety: Interlocking Chuck Guard Foot Brake Speeds: 12 Spindle Speeds 40 – 2500rpm Main Motor: 2.2kW Power: Three Phase Electrics Supply Voltage: 415v Approx Dimensions: 1525 x 950 x 1180mm high Approx Weight: 600kg
