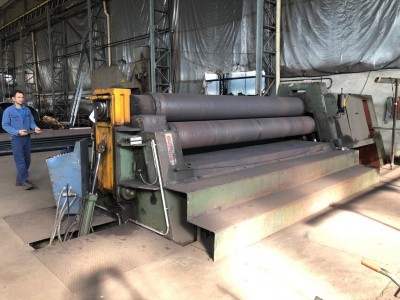

Max. working lenght: 4.000mm. Max. working thickness: 14mm. Upper roll diameter: 430mm. Lower rolls diameter: 400mm. Max. working thickness without p: 16mm. N. of rolls: 3mm. Total weight: 30.000kg. Year: 1980 Notes: COMPLETE WITH:- PREBENDING
Shaft dia 50mm
Top roll dia 152mm
Hydraulic force 16ton
Motors: main 1.5kw / hydraulic 1.5kw
Weight 550kg
Horizontal / Vertical working positions, 3 Driven shafts, Hydraulic adjustment of top shaft, Forward / reverse footswitch, Lateral ...
High rolling power combined with maximum pre-bending precision: HAV is the series of 3-roll variable geometry bending rolls at the highest level of its category by performance and versatility.
...
Stock number: 180342
Serial number: 98/3
Sheet thickness: 2,5 mm
Working width: 2540 mm
Min bending radius: 1,25x thickness mm
Min folding height: 6x thickness mm
Clamping beam adjustment: 200 mm
Folding beam adjustable: 30 mm
Motor: 2 kW
Le...
