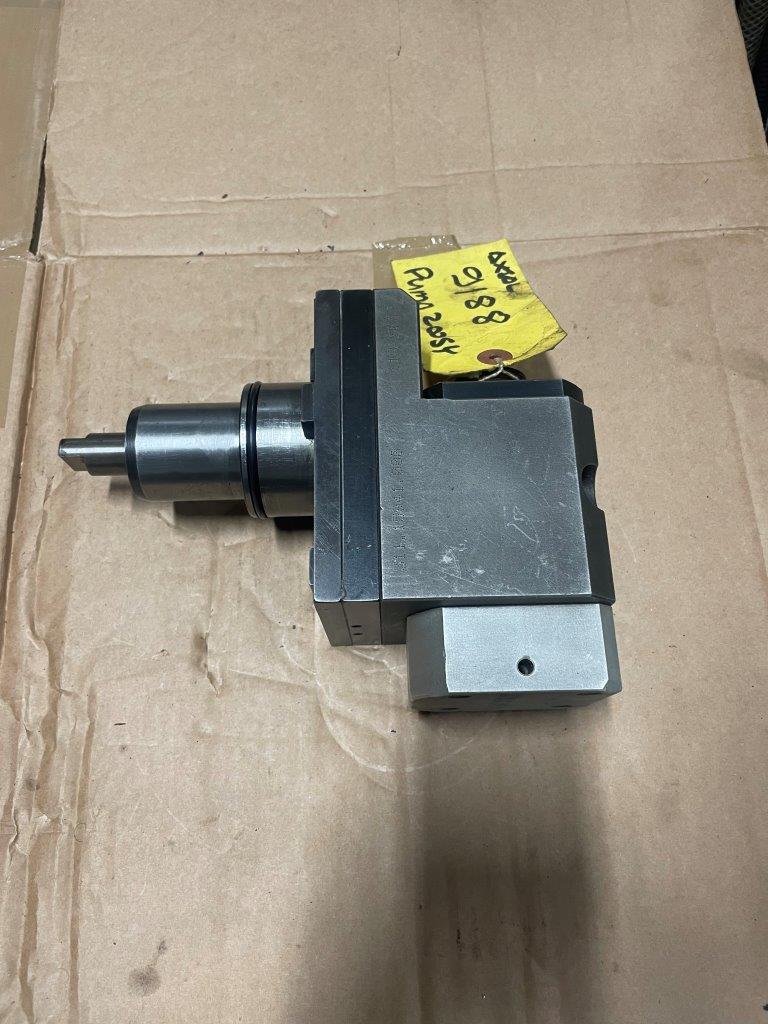

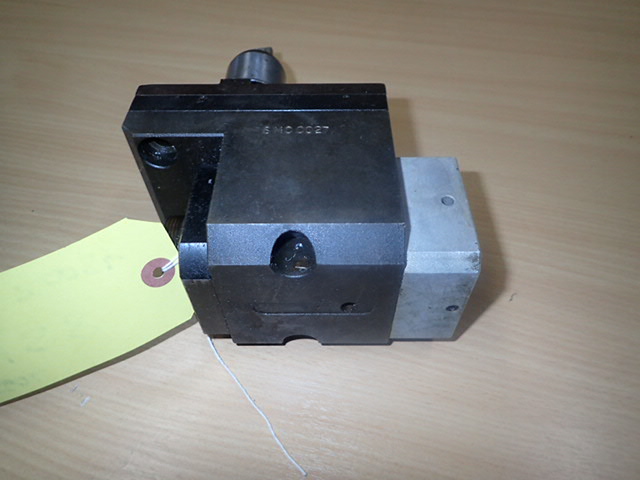

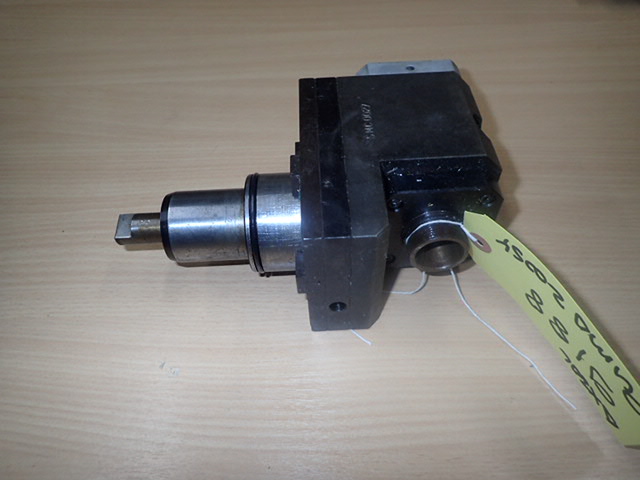

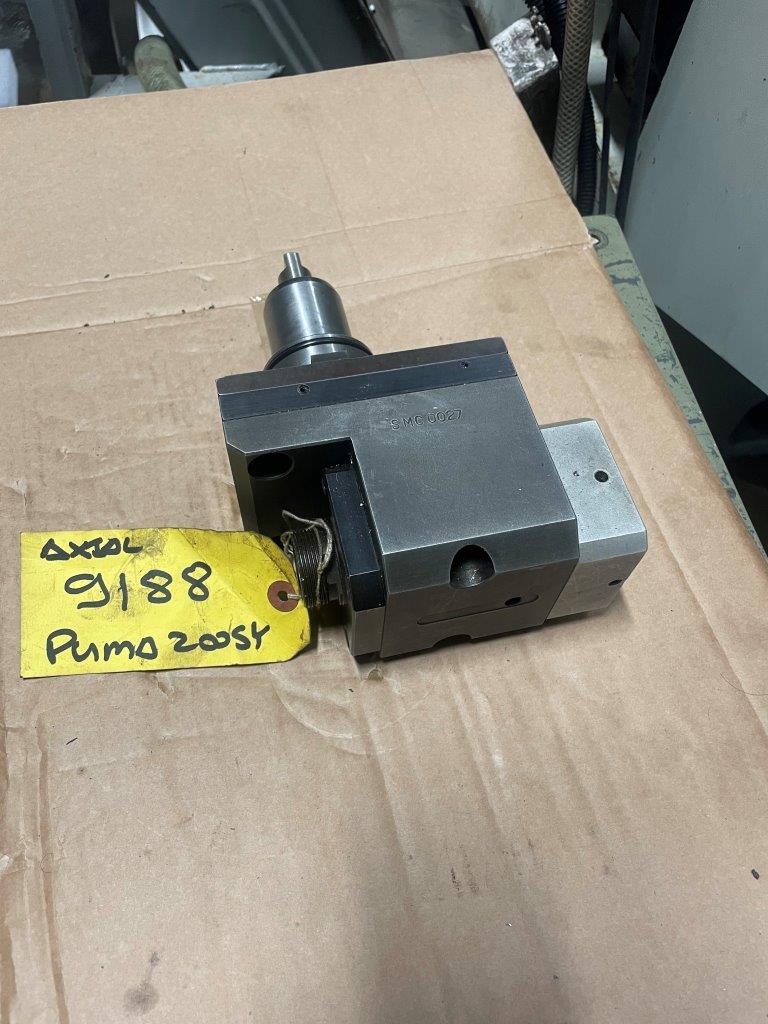

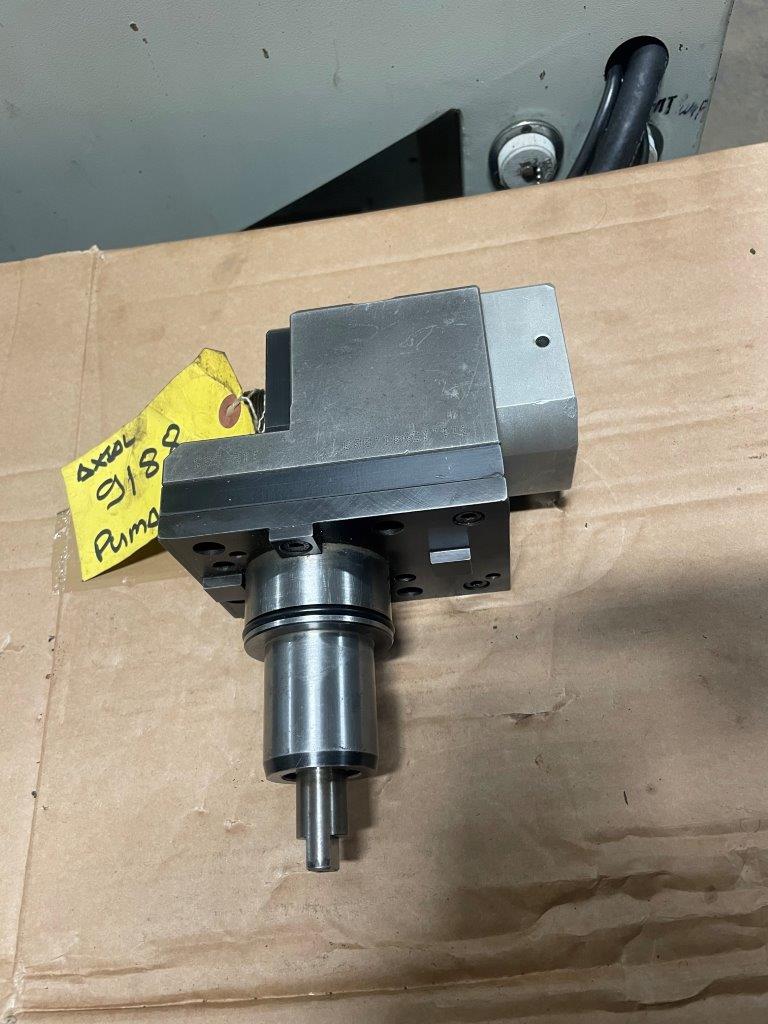

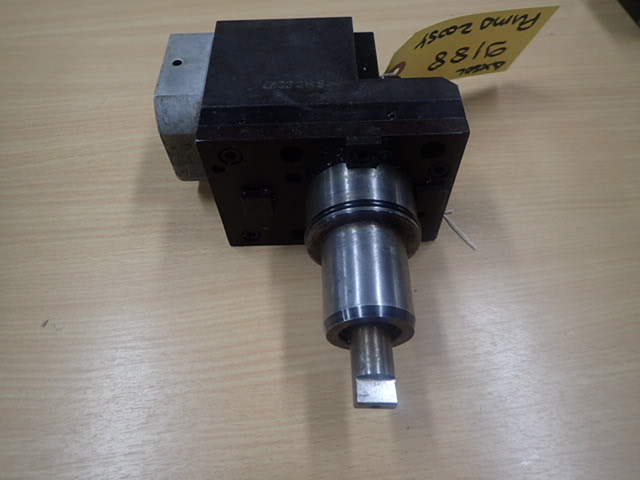

Used BMT55 Angular Driven Tool Holder for CNC Lathes, BMT55, ER25 Collet Chuck, Length of drive to the end of the tang - 103mm, (Suitable for Doosan Lathes)
Punching:Diameter x Maximum Thickness 33mm x 20mm. Maximum Diameter x Thickness mm 57mm x 12mm. Stroke Length 80mm. Throat Depth 355mm. Largest Hole Diameter standard 57mm. Largest Hole Diameter – Optional 160mm.Shearing:Flat Bar – Width x Maximu...
Cast iron plain tooling cube with mounting holes. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and...
