MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Schiess Froriep
  • Model:
  • SCHIESS FRORIEP - DV 45
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

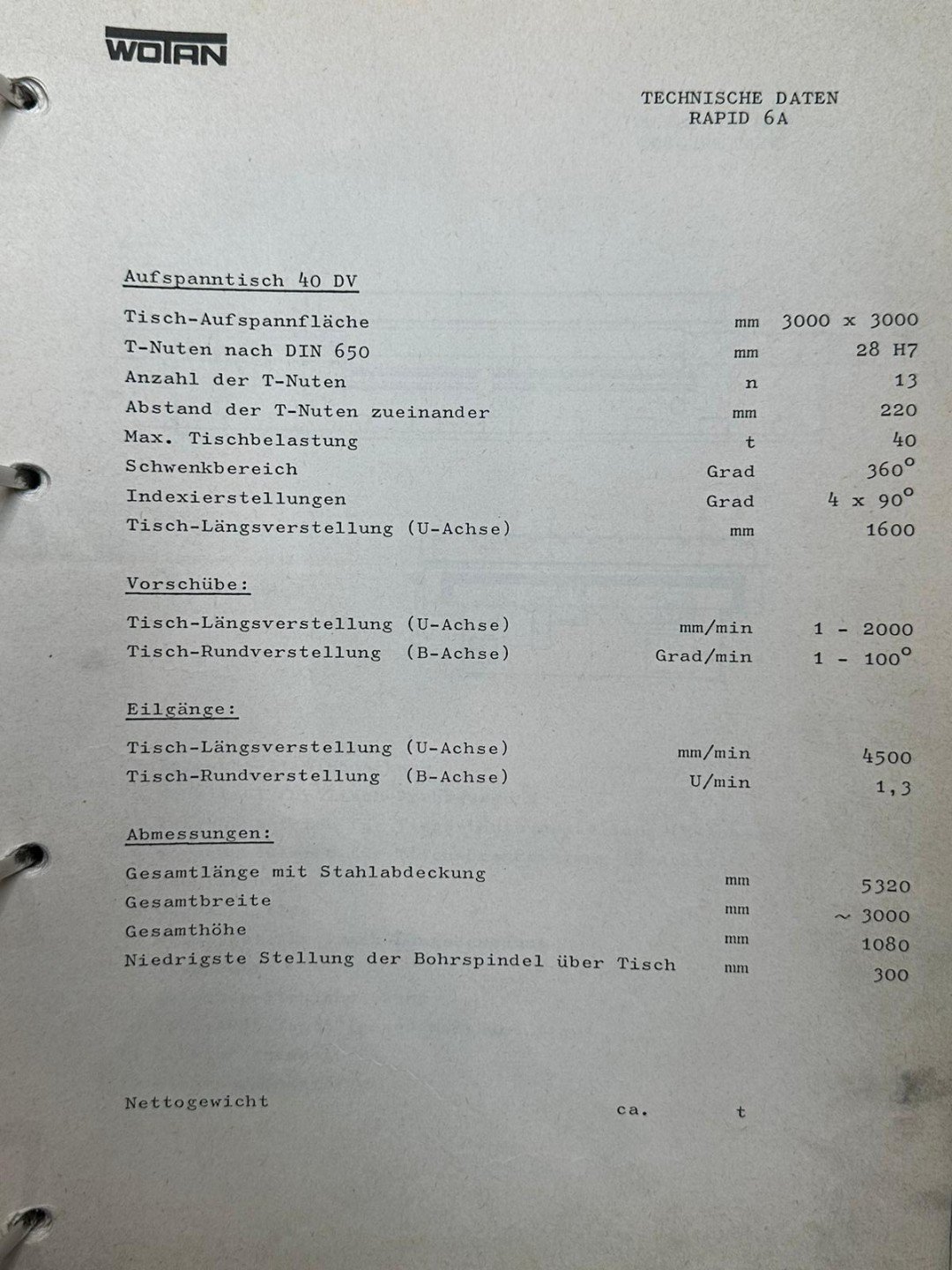

Table Length: 3000mm | Table Width: 3000mm | Table load: 40000 | Movement V-axis: 1600mm | Rotation B-Axis: 360000° | Rotation speed B-Axis: 100 Grad/MinOmw/min. | Movement speed V-axis: 4500mm/min. | Length: 5320mm | Width: 3000mm | Height: 1080mm | Weight: 24000kg
