MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • KELCH
  • Model:
  • Kelch Kalimat A CNC Presetter
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

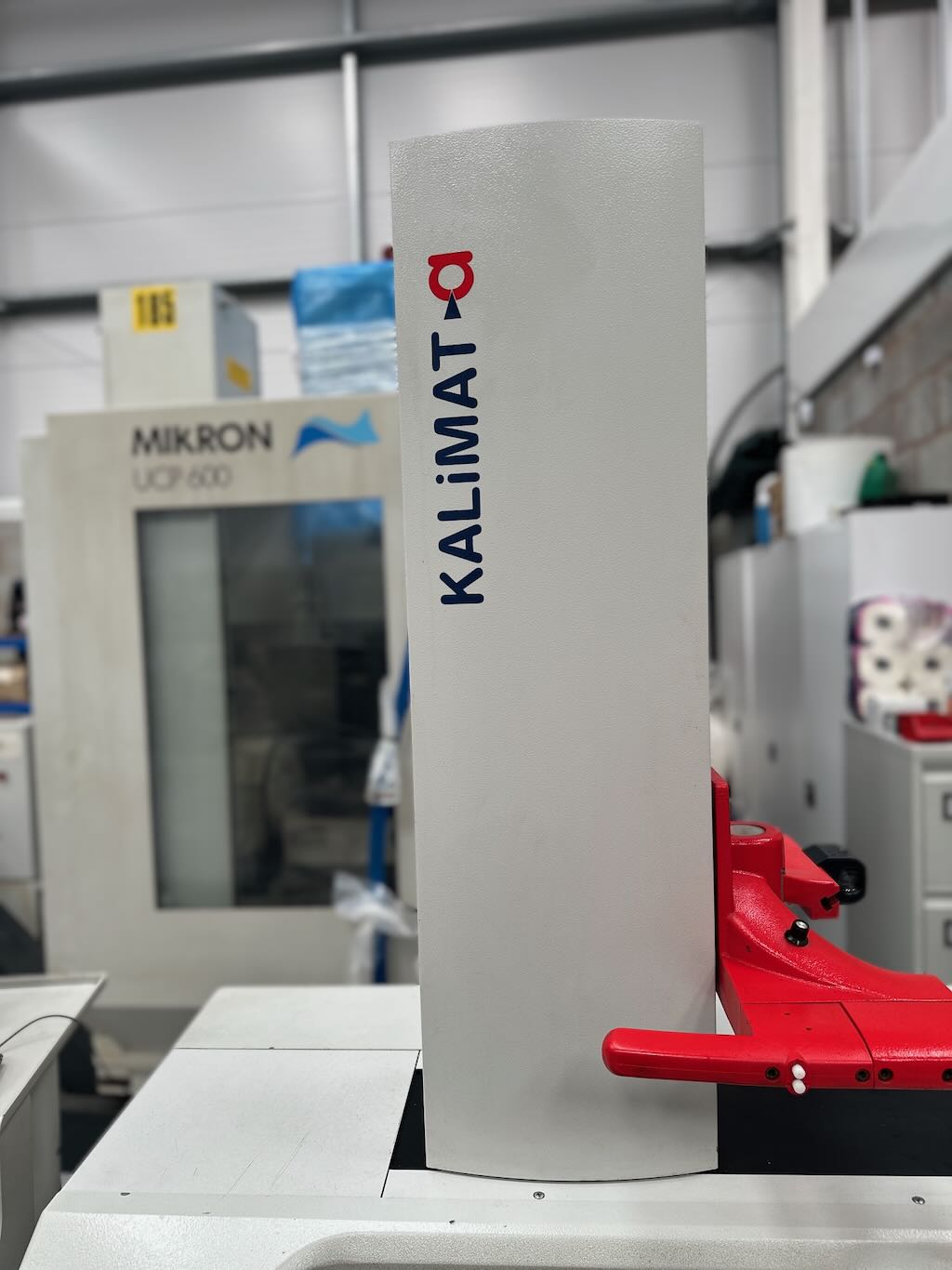

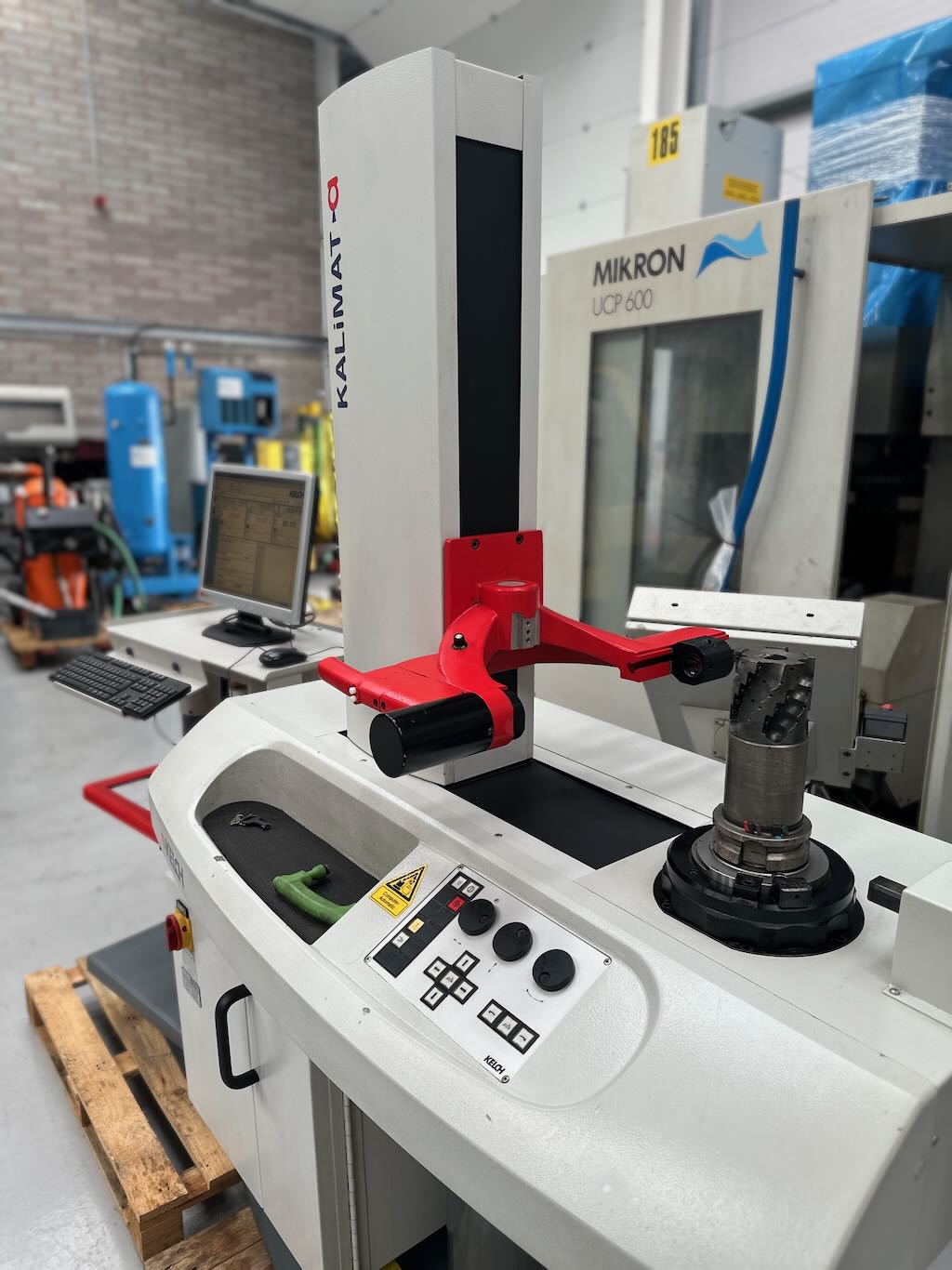

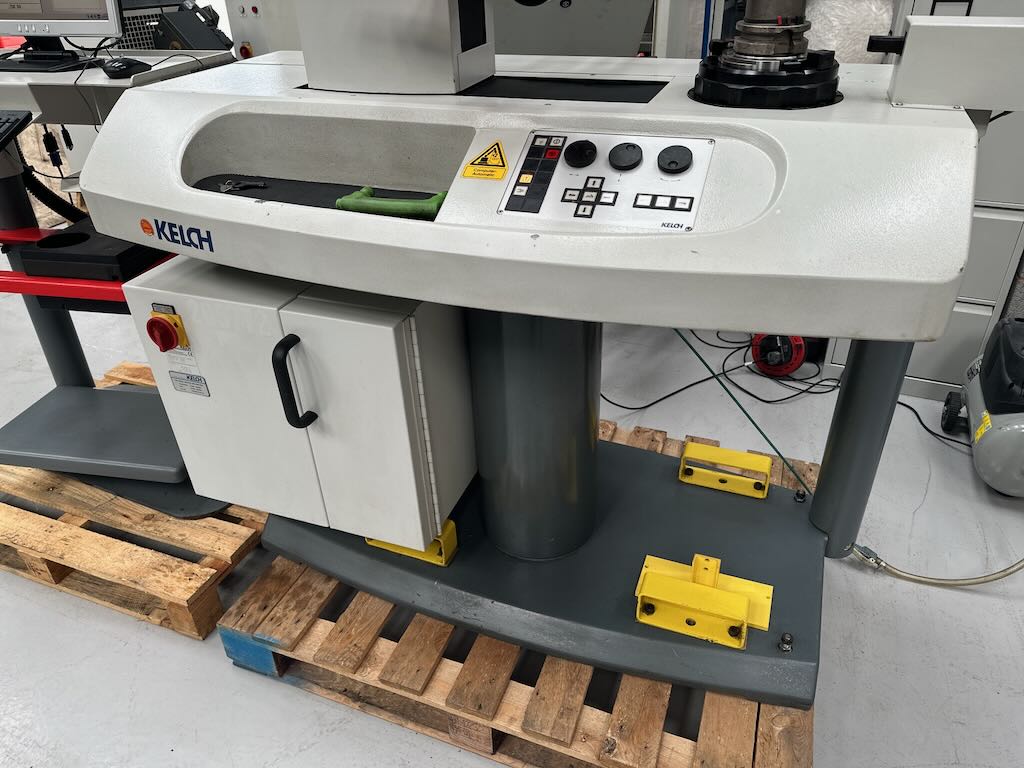

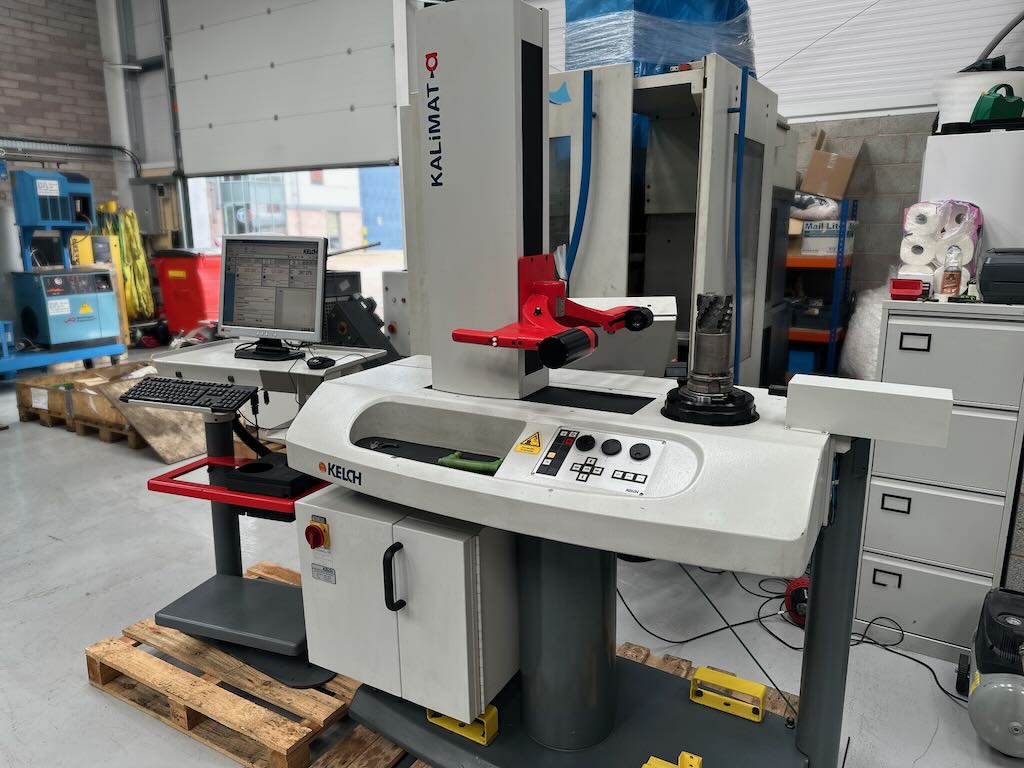

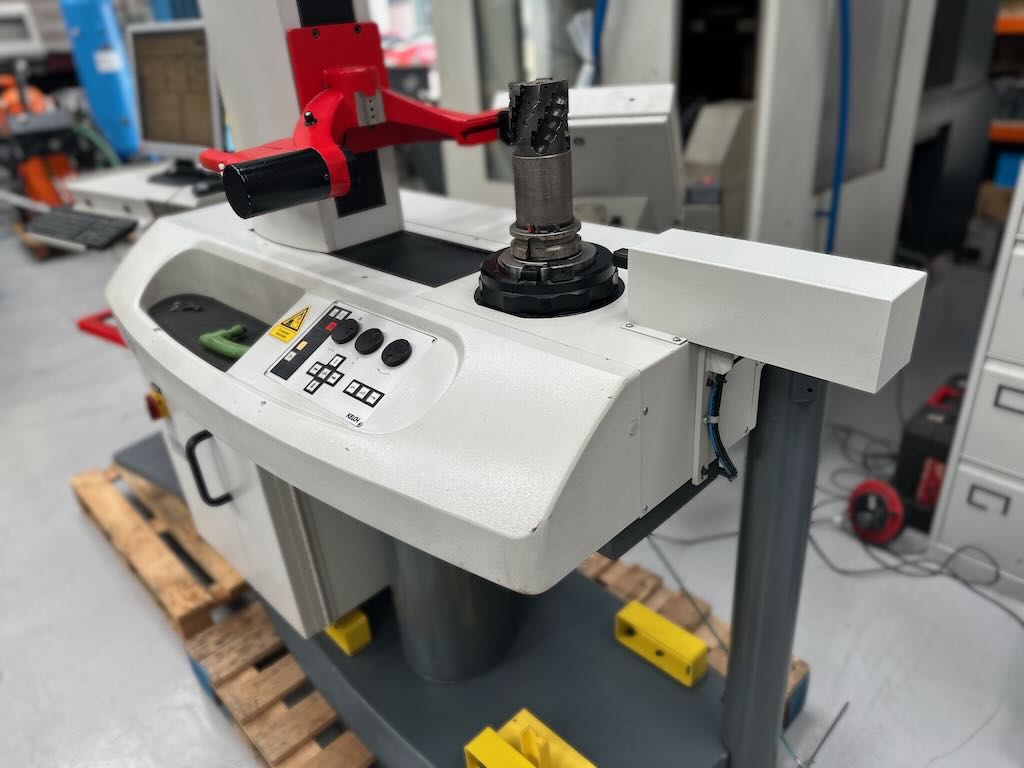

Model: Kelch Kalimat "A"  56-3/C.

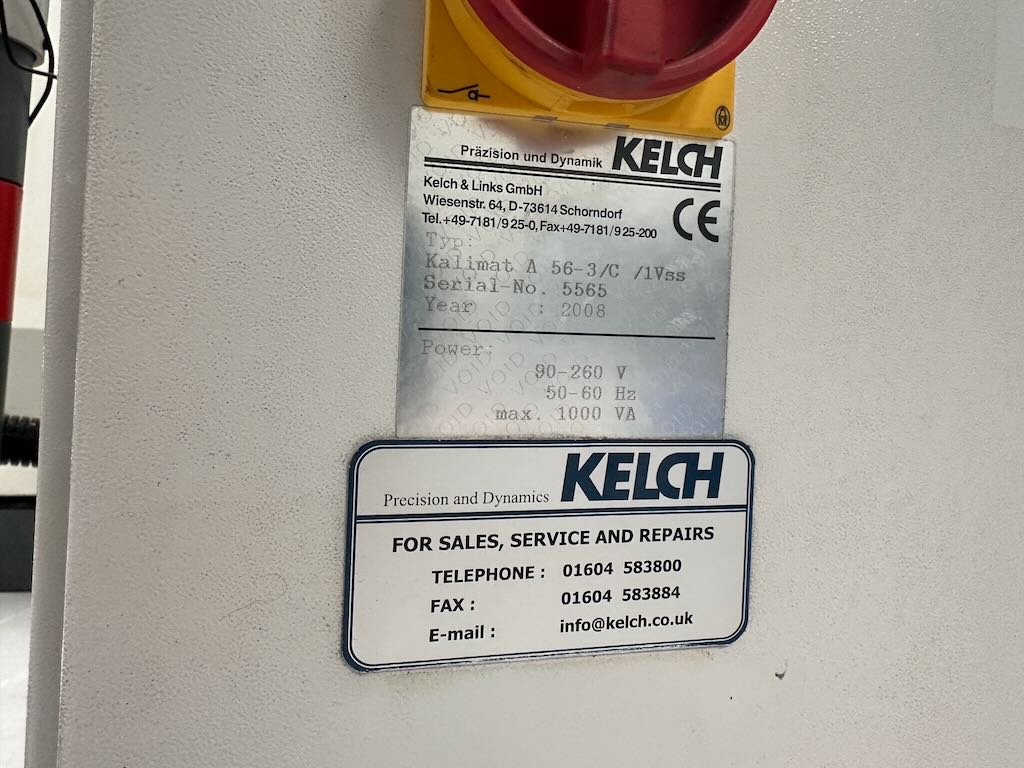

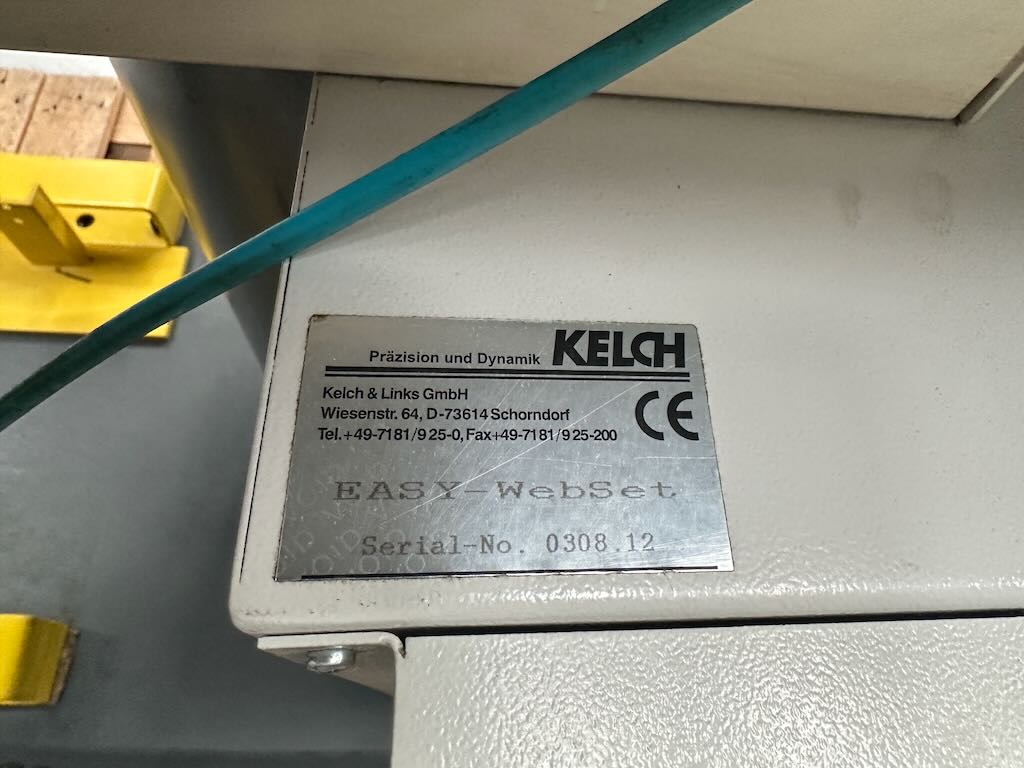

Serial Number: 5565.
Operating System: Windows XP Professional.

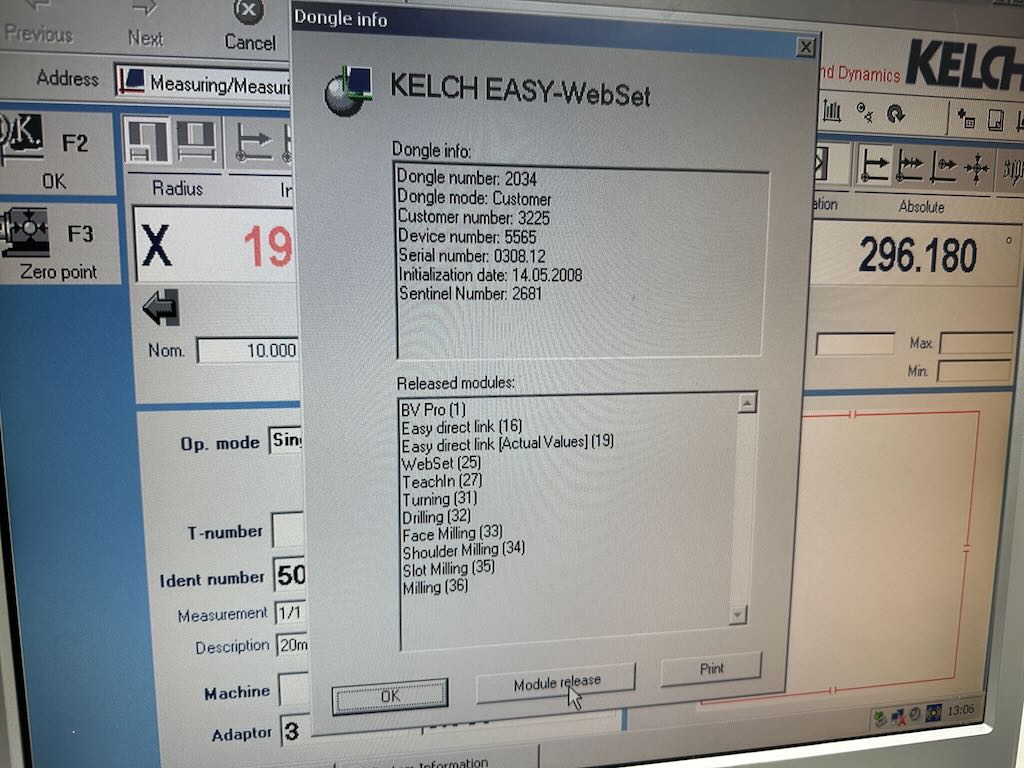

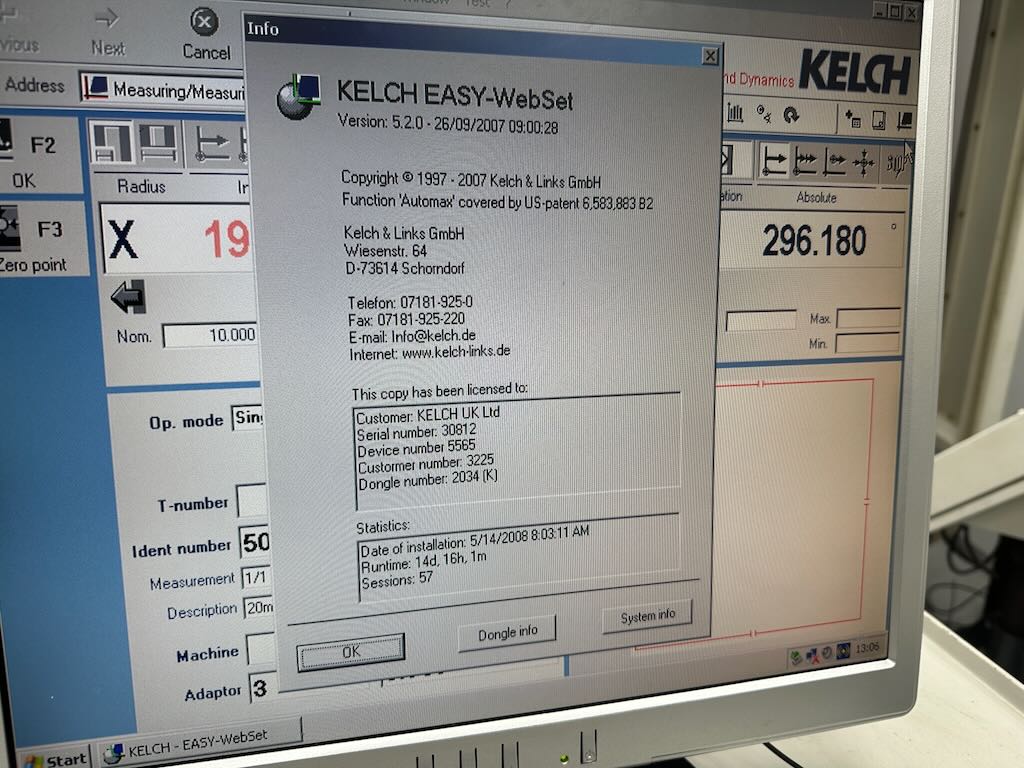

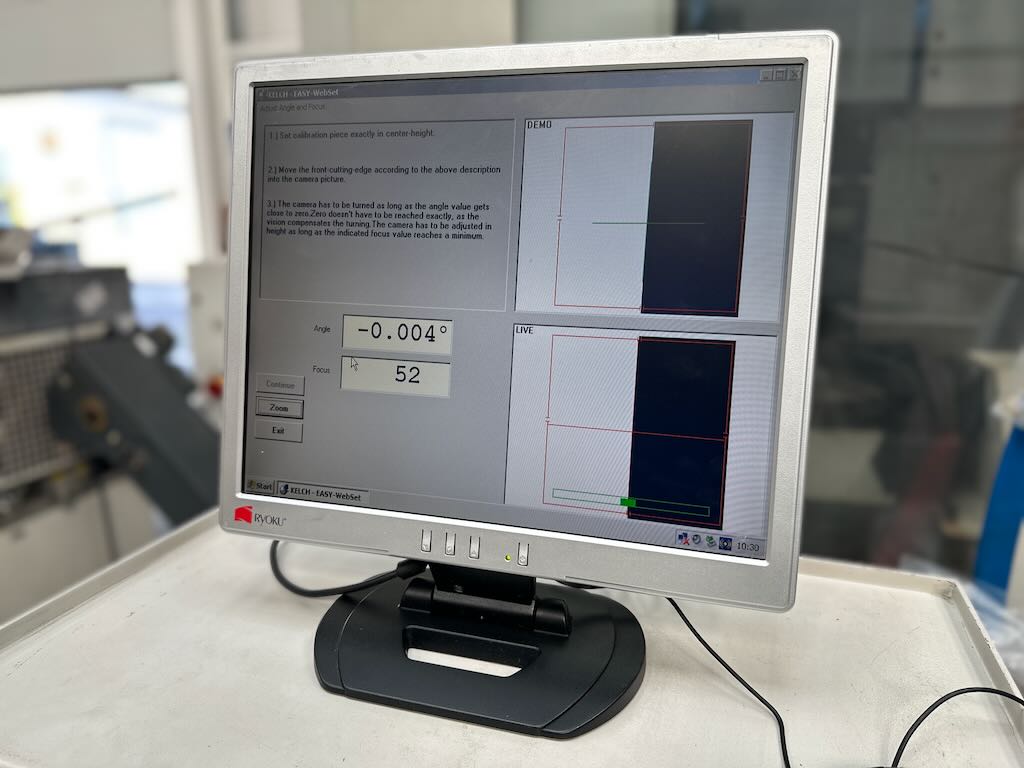

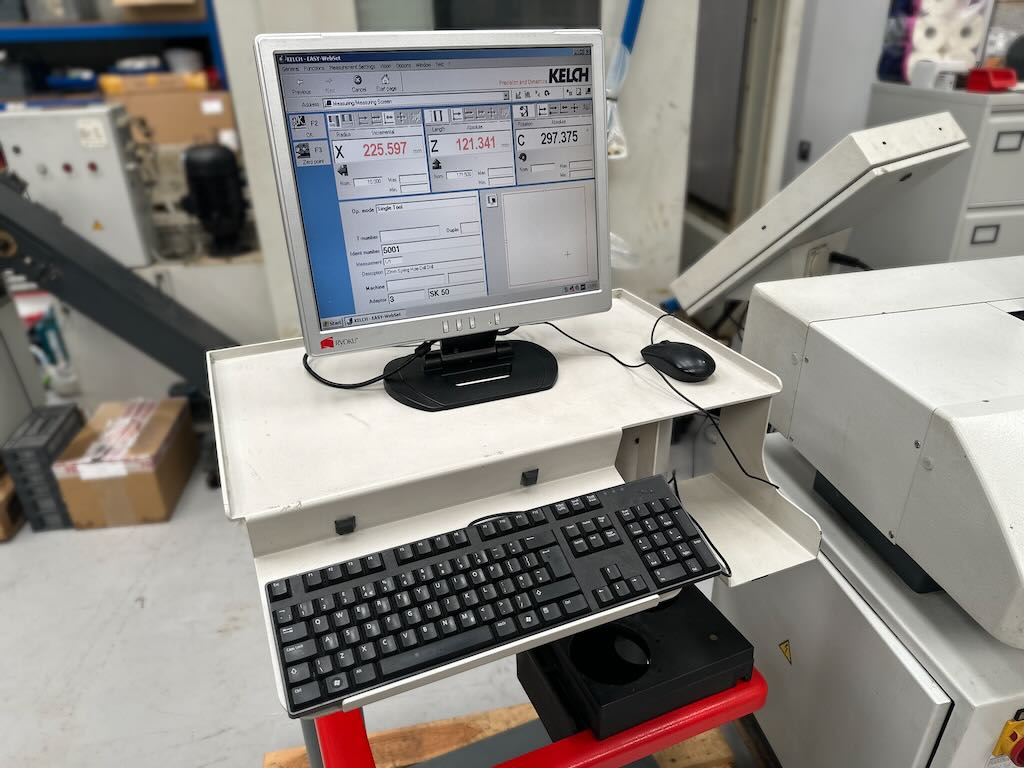

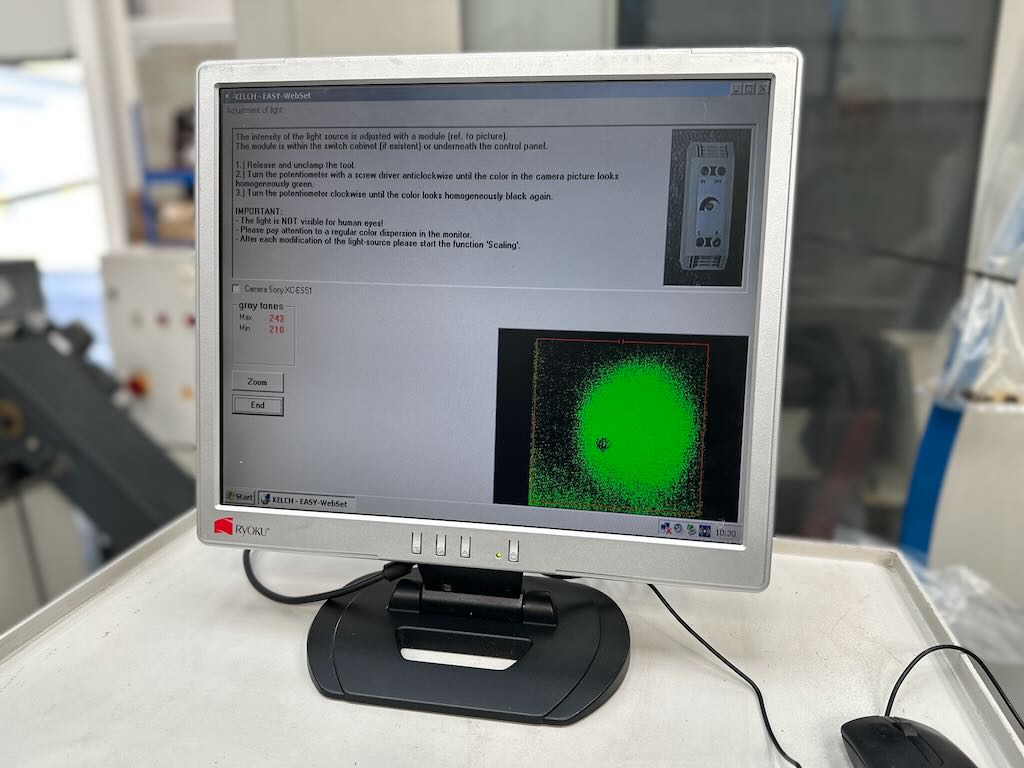

Measuring Software: Kelch Easy Webset Version 5.2.0.
X Axis Measuring Range: 500mm.
Z Axis Measuring Range: 600mm.

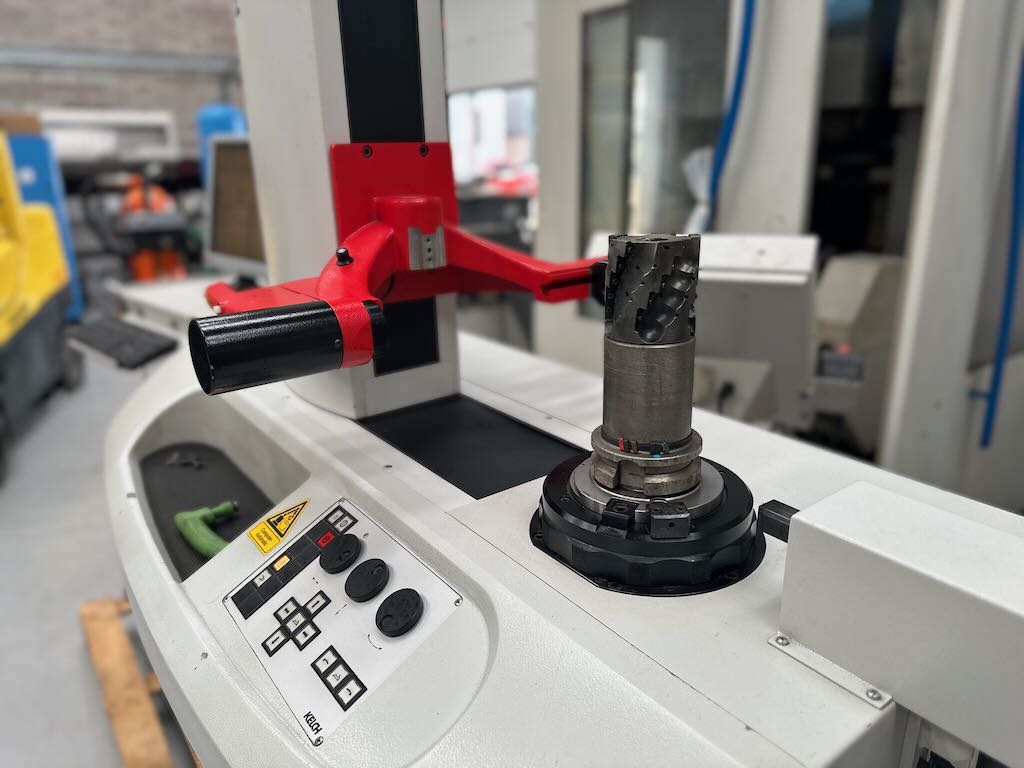

Tool Holding: Power operated CNC Modular power base spindle  "MPS" (modular power spindle).

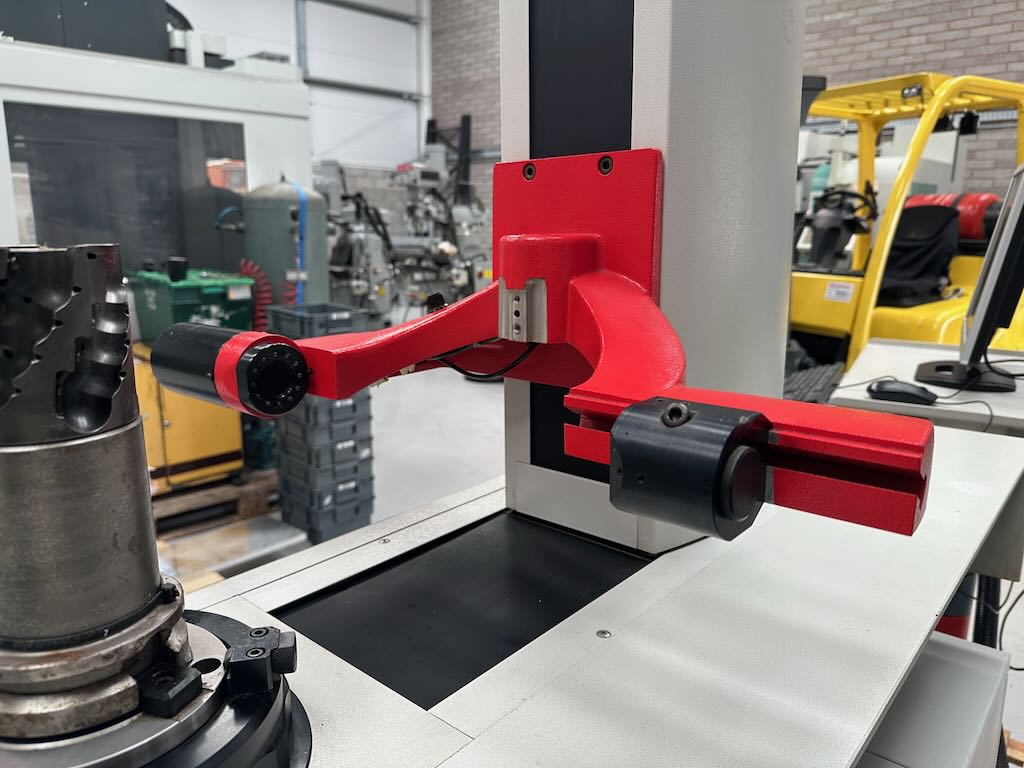

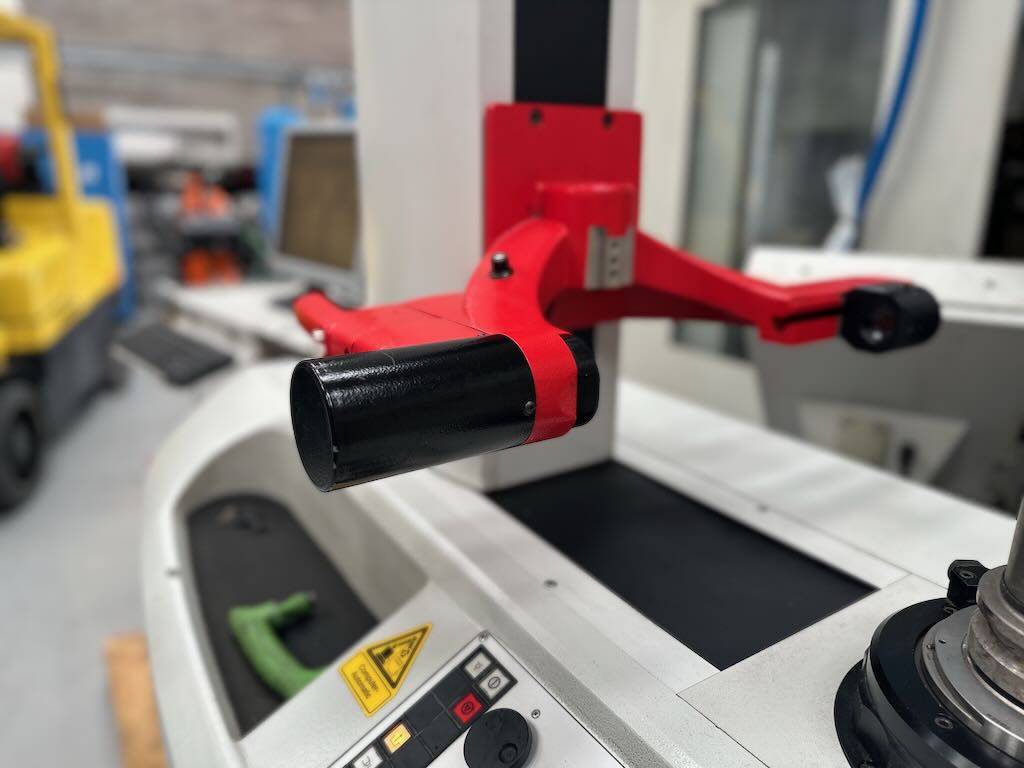

Measuring system: MegaVision  CCD Camera optical measuring system  / 7x7mm 40 x tool magnification display.
Dimensions: 214cm x 66cm x 195cm (L x D x H).
+ request more information
