MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

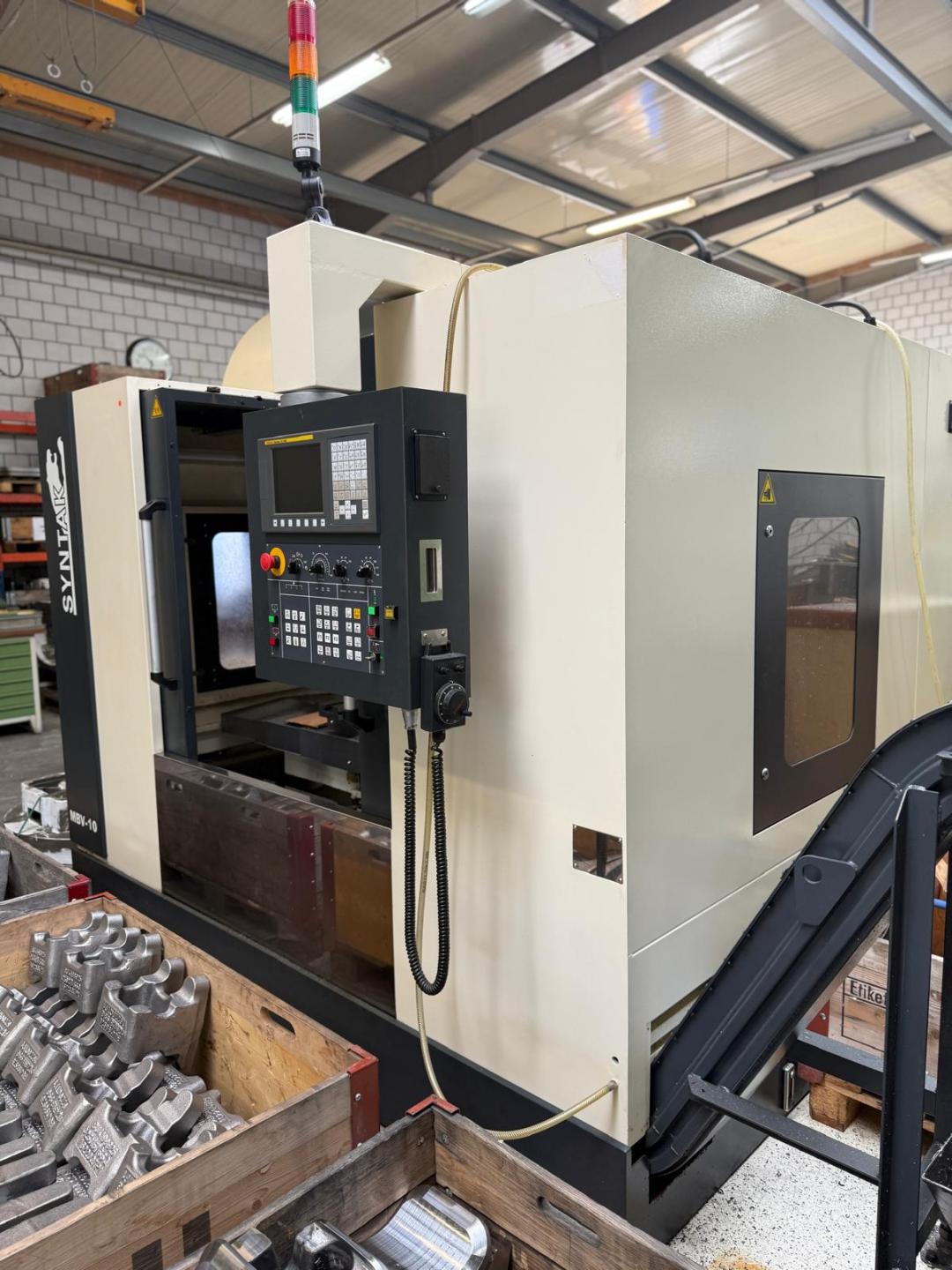

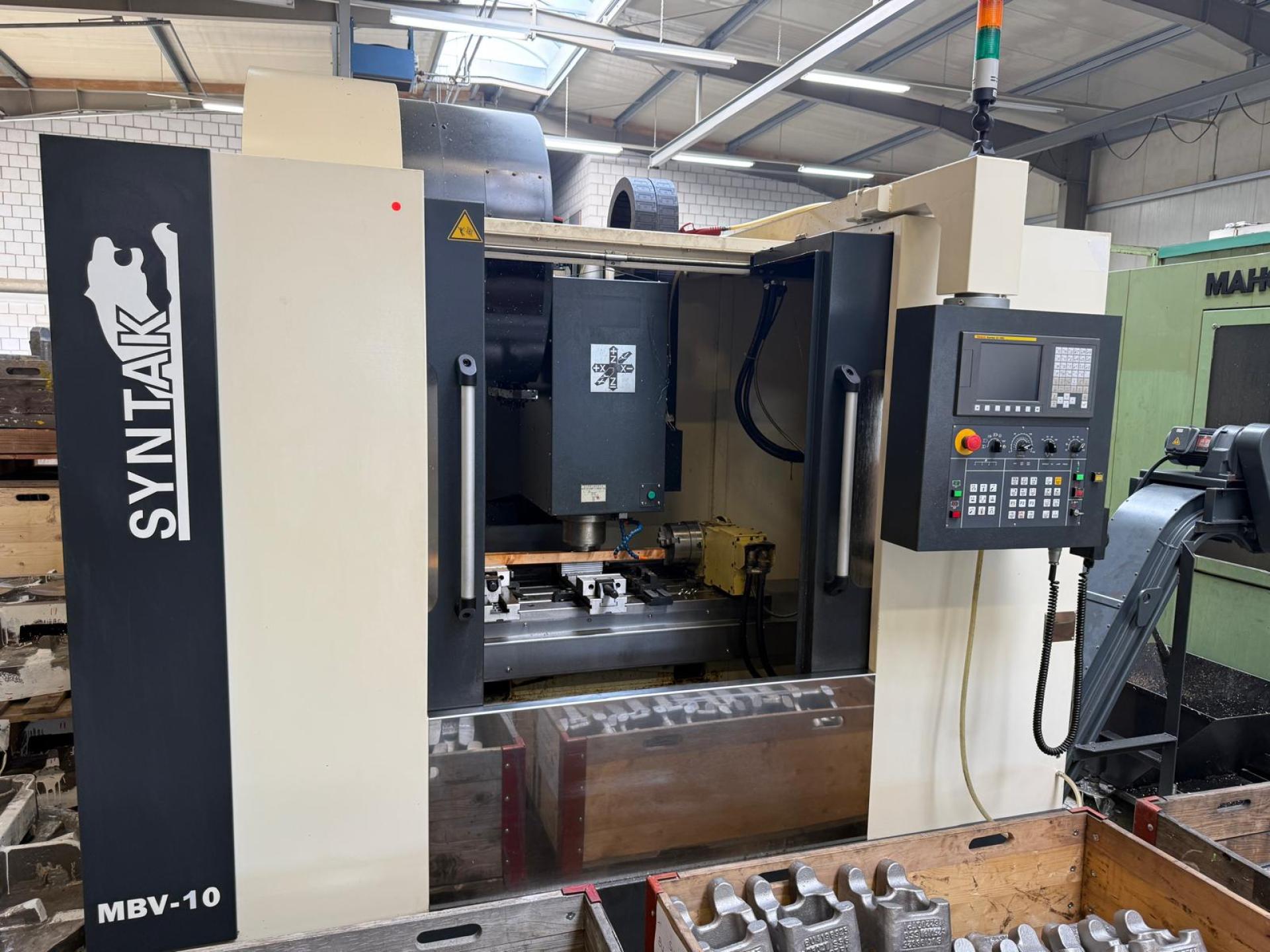

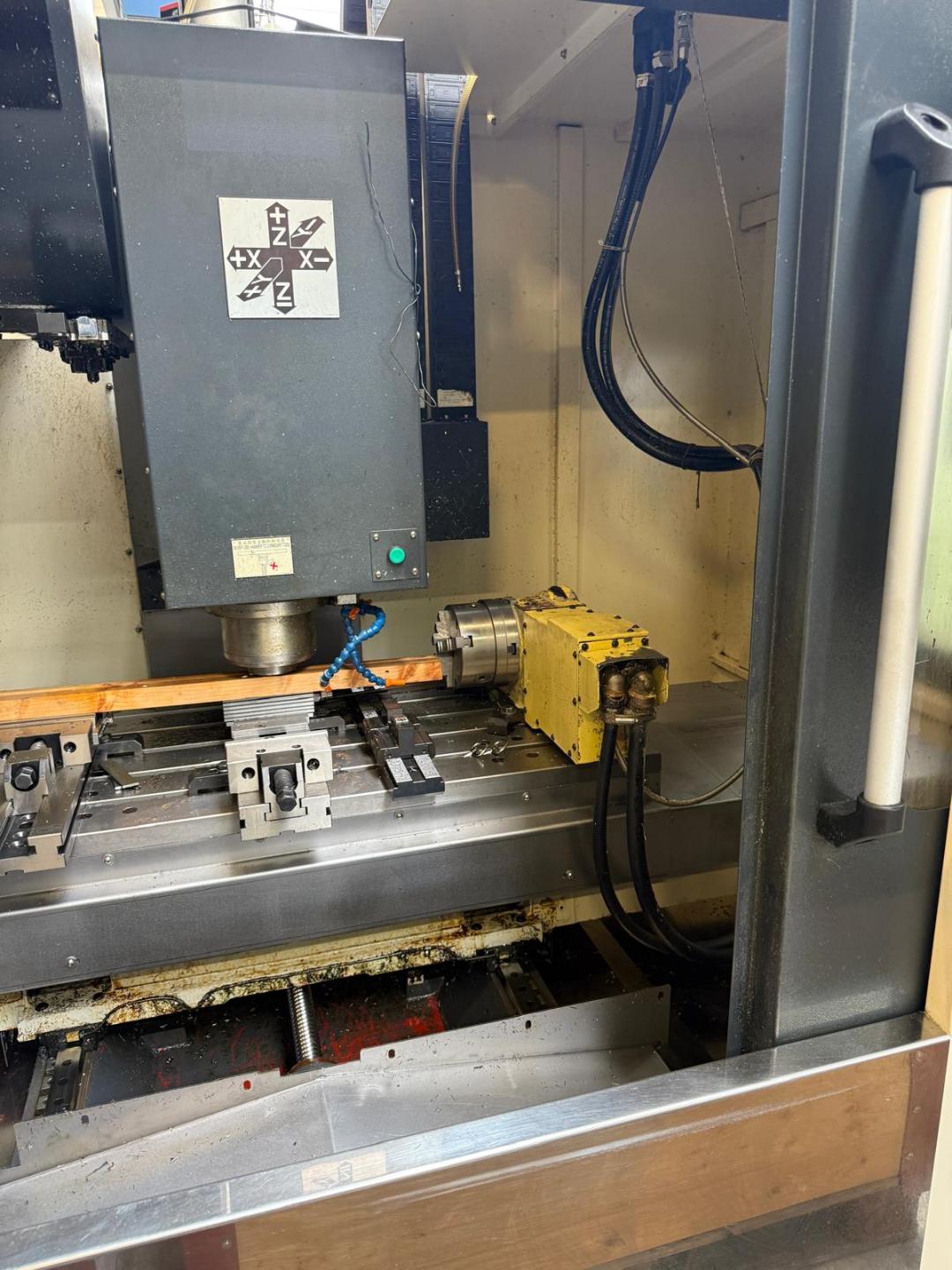

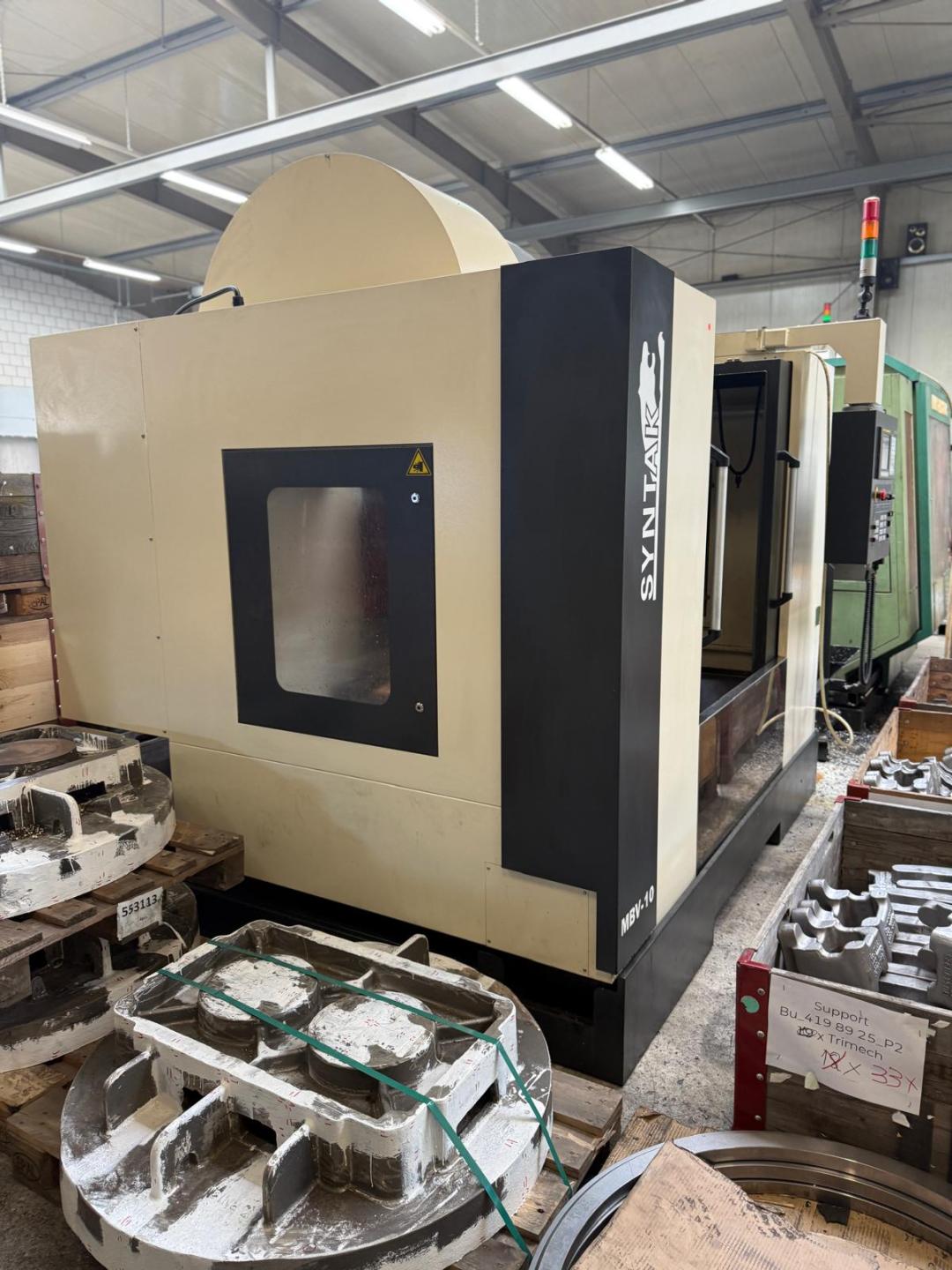

  • SYNTAK - MBV-10
  • Condition:
  • 1
  • YOM:
  • NA

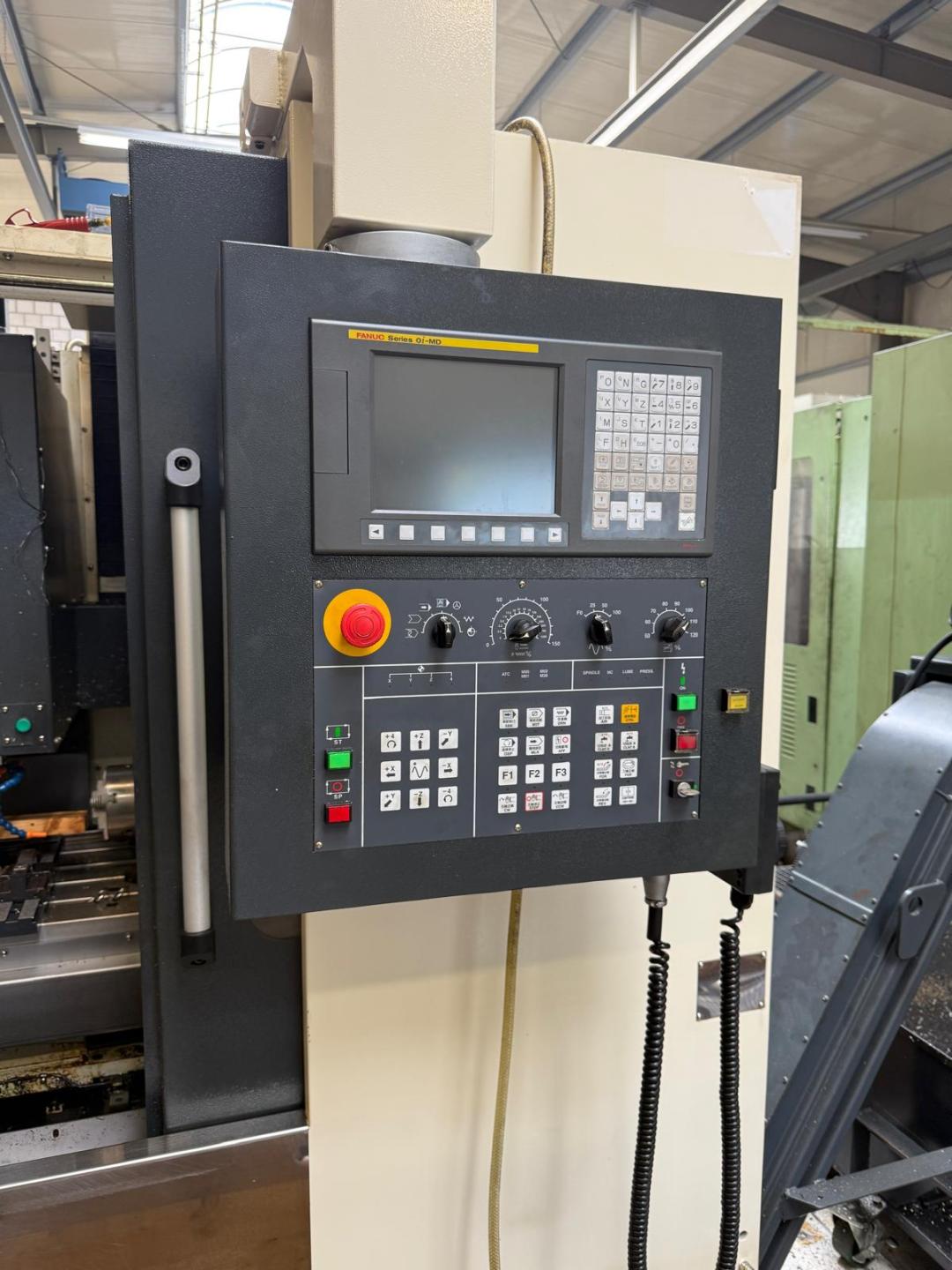

  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

X - Travel: 1040mm | Y - Travel: 600mm | Z - Travel: 620mm | Table Length: 1200mm | Table Width: 600mm | Table load: 500 | Table Ø: 160mm | Feed rate X-Axis: 30000mm/min. | Feed rate Y-Axis: 30000mm/min. | Feed rate Z-Axis: 20000mm/min. | Spindle Taper: 40ISO/Bt/Mk | Power on spindle: 11kW | Speeds / ranges: 10000Rpm | ATC / revolver: 24 | Coolant through spindle / Bar: 20 | Number of controlled axis: 3+1 | Chip conveyor: Yes | Coolantsystem: Yes | Length: 2650mm | Width: 2200mm | Height: 2600mm | Weight: 5300kg
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    Mach4Metal

    • Contact Name
    • Bart Steers
    • Contact Number
    • +31 (0)316 247 123
