MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hugh Smith
  • Model:

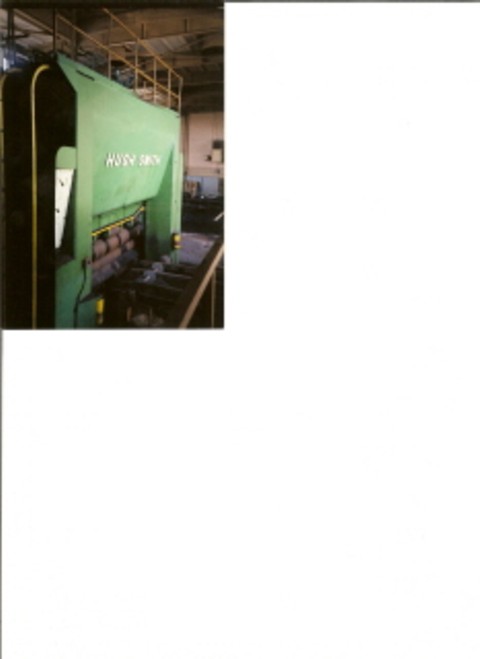

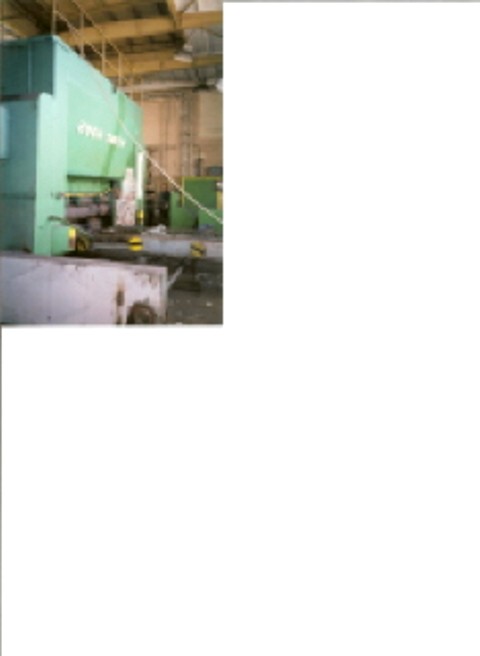

  • 12 x 1 3/4" HUGH SMITH PLATE LEVELER, 1972 LOW HOURS
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United States of America United States of America

DESCRIPTION




SPECIFICATIONS:

Construction......................................Backed Up Rolls
Capacity....................................1/4" TO 1 3/4"


5 Rollers 3 On Top 2 On Bottom Back Up Rollers Top & Bottom
Max. Daylight Between Rollers.....................3 3/4
Speed.............................................30.5 Per Minute
Diameter Of Top Rolls.............................2 @ 14" 1 @ 16"
Diameter Of Bottom Rolls..........................2 @ 16"
All Rollers Fitted With Self-Aligning Spherical
Roller Bearings Dust Protected
Rollers...........................................19" Centers
Total Travel Of Center Roller.....................7"
Roll Centers......................................19"
(5) Work Rolls....................................14" And 16" Diameter
Maximum Work Opening..............................3 3/4"
Roller Bearing All Rolls..........................Yes
Speed.............................................30.5 FPM
Motors............................................100 HP 60 CYCLE MAIN MOTOR
75 HP 25 HP 5 HP MOTORS
Dimensions........................................17 X 29X 15 High 3.9"Pit
Weight............................................120 Ton

All Controls For Operating Machine Housed In Desk
Hydraulic Side Of Machine Is Controlled By Means Of Push Button Stations &

Solenid Actuated Valves.
Vertical Adjustment Of Top Rollers Is By Hold-To-Run Push Buttons On Both Up &

Down Stroke.
MACHINE IS CAPABLE OF BENDING PLATE TO FIT SHIP BUILDING ETC.


Machine was bought from Europe but was not set up.

Machine has been in storage sinc 1999.

Inspected in Poland under power.It has been in heated storage.

PRICE IS LOADED ON TRUCK WARREN MICHIGAN
