MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hauser
  • Model:
  • JIG BORING MACHINE HAUSER TYPE OP-2
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

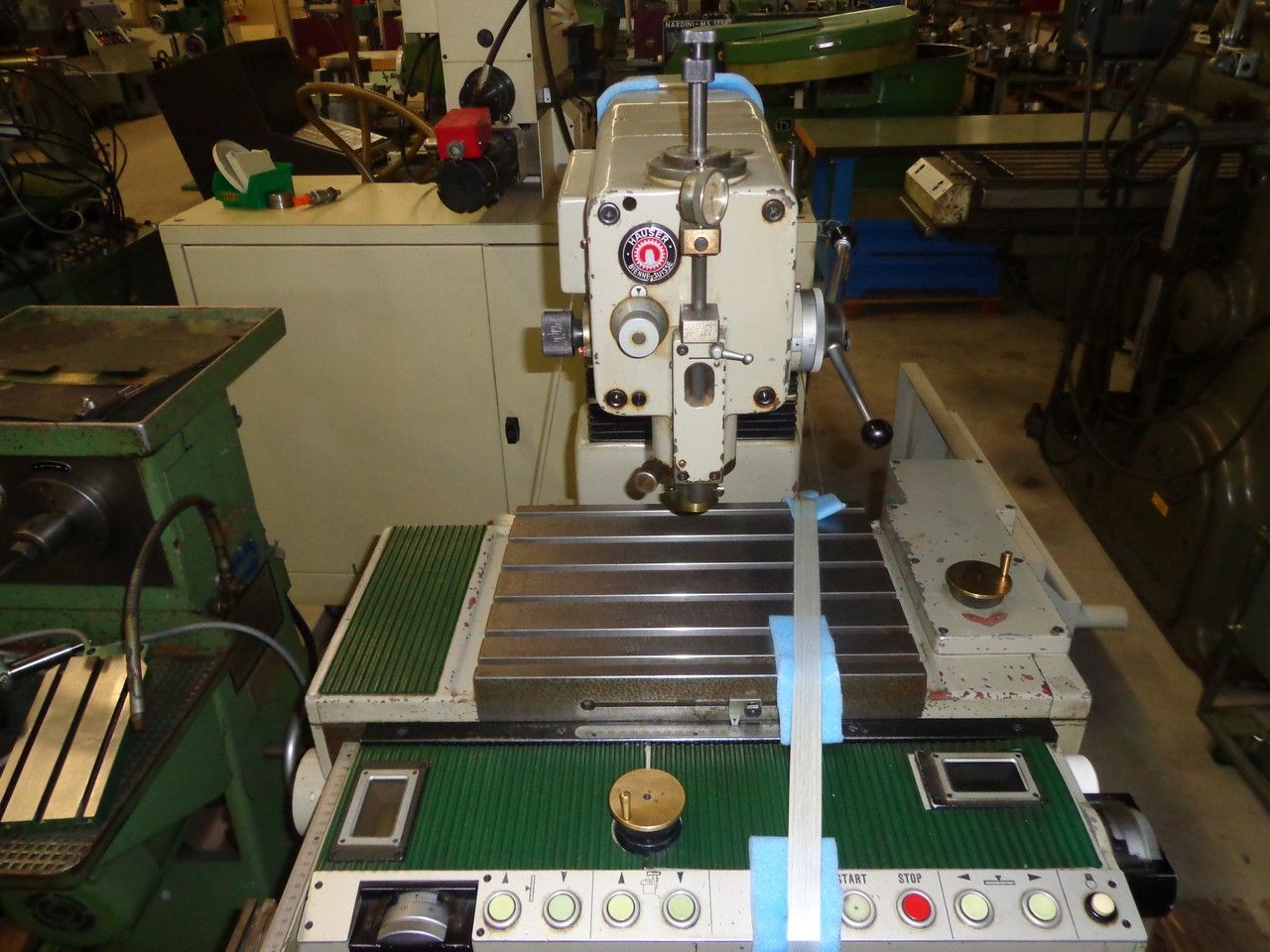

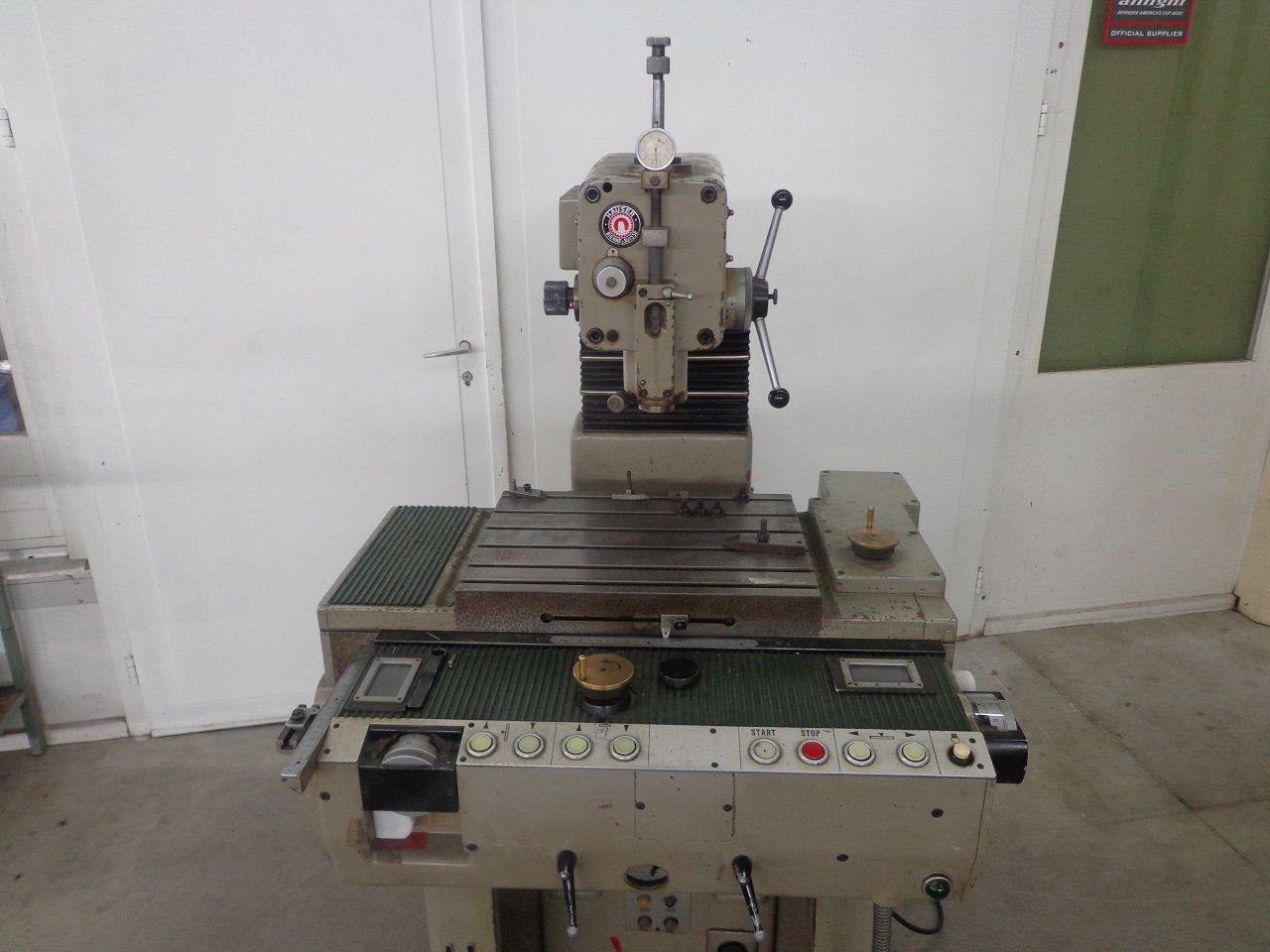

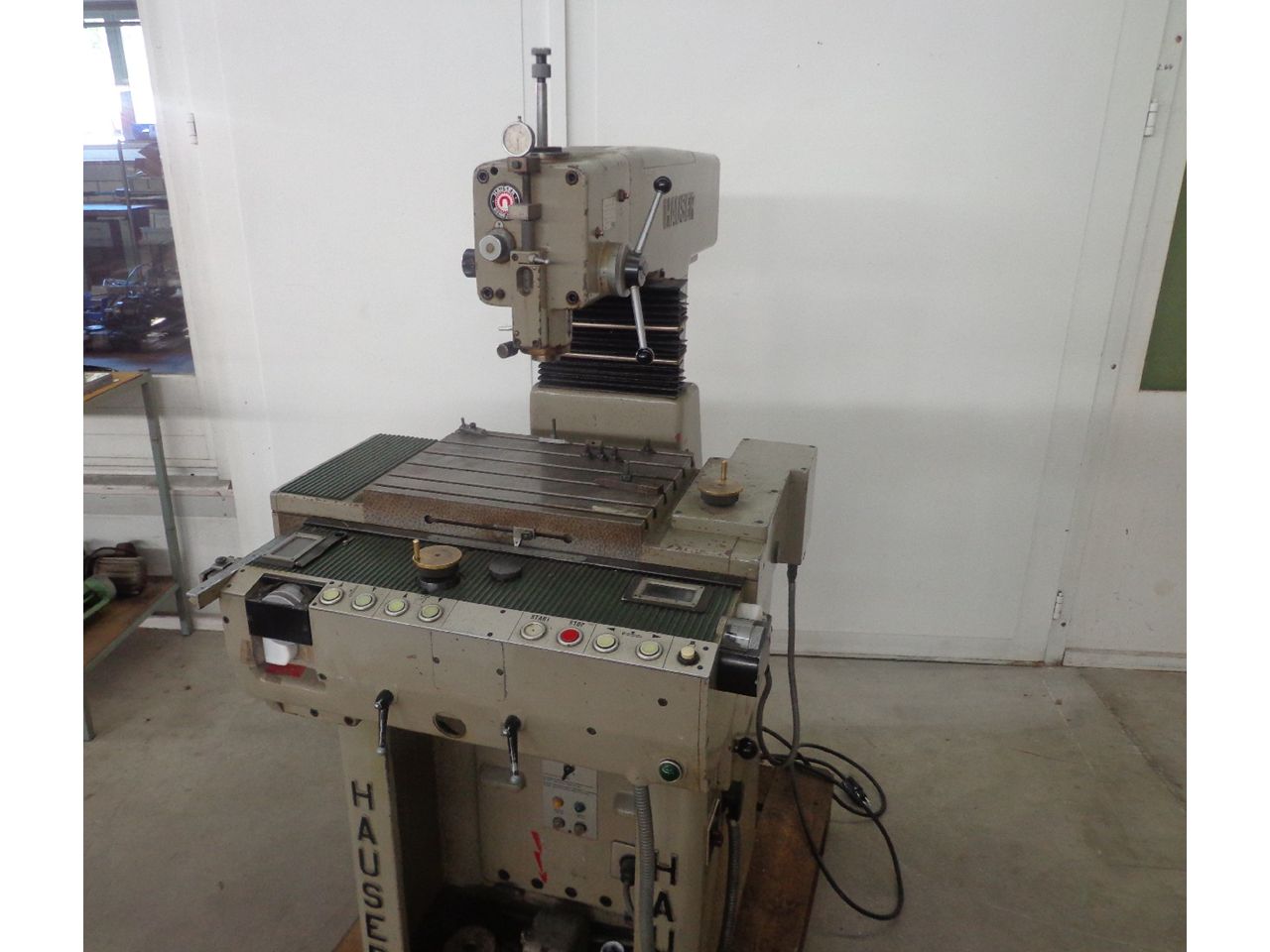

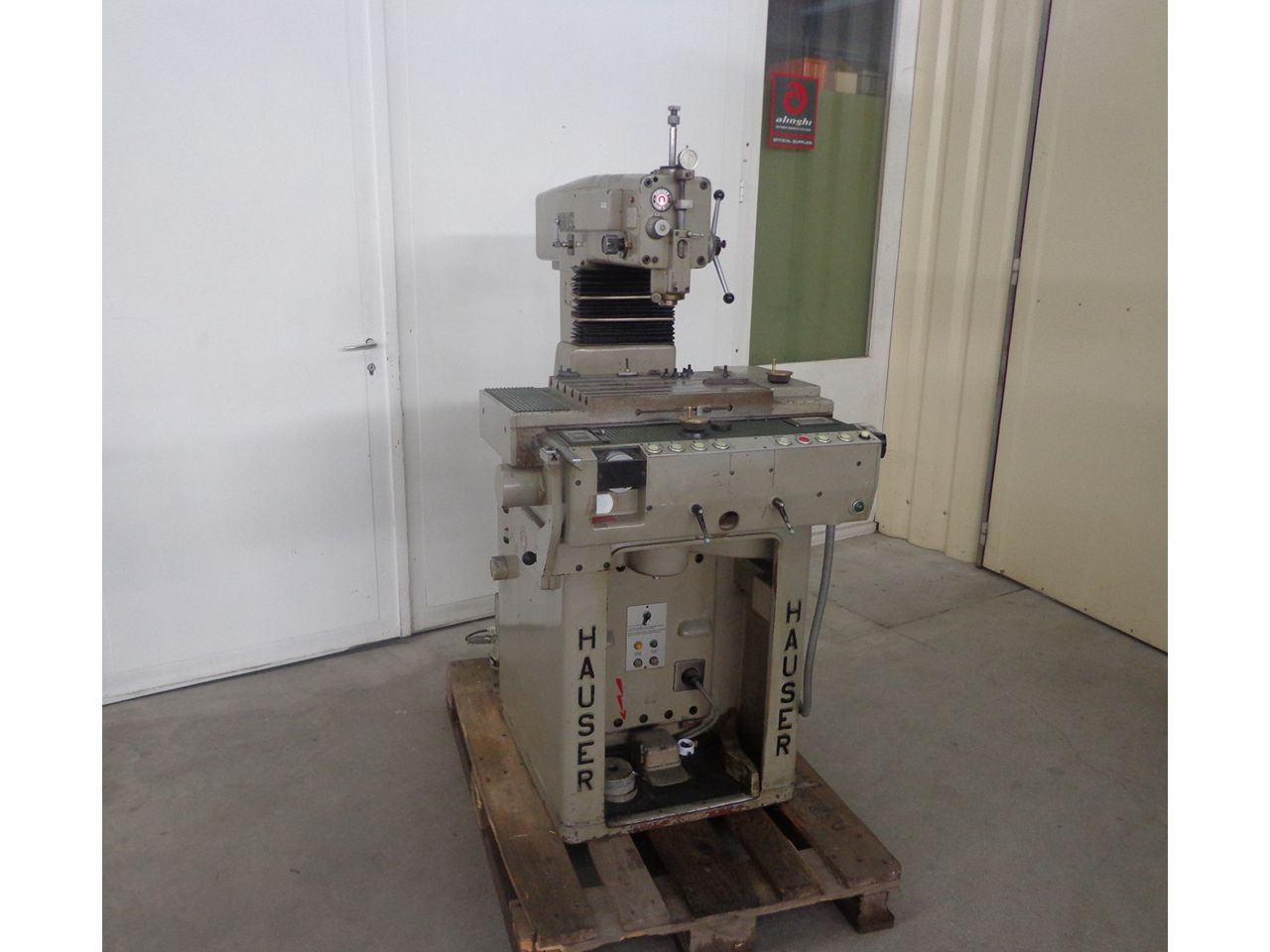

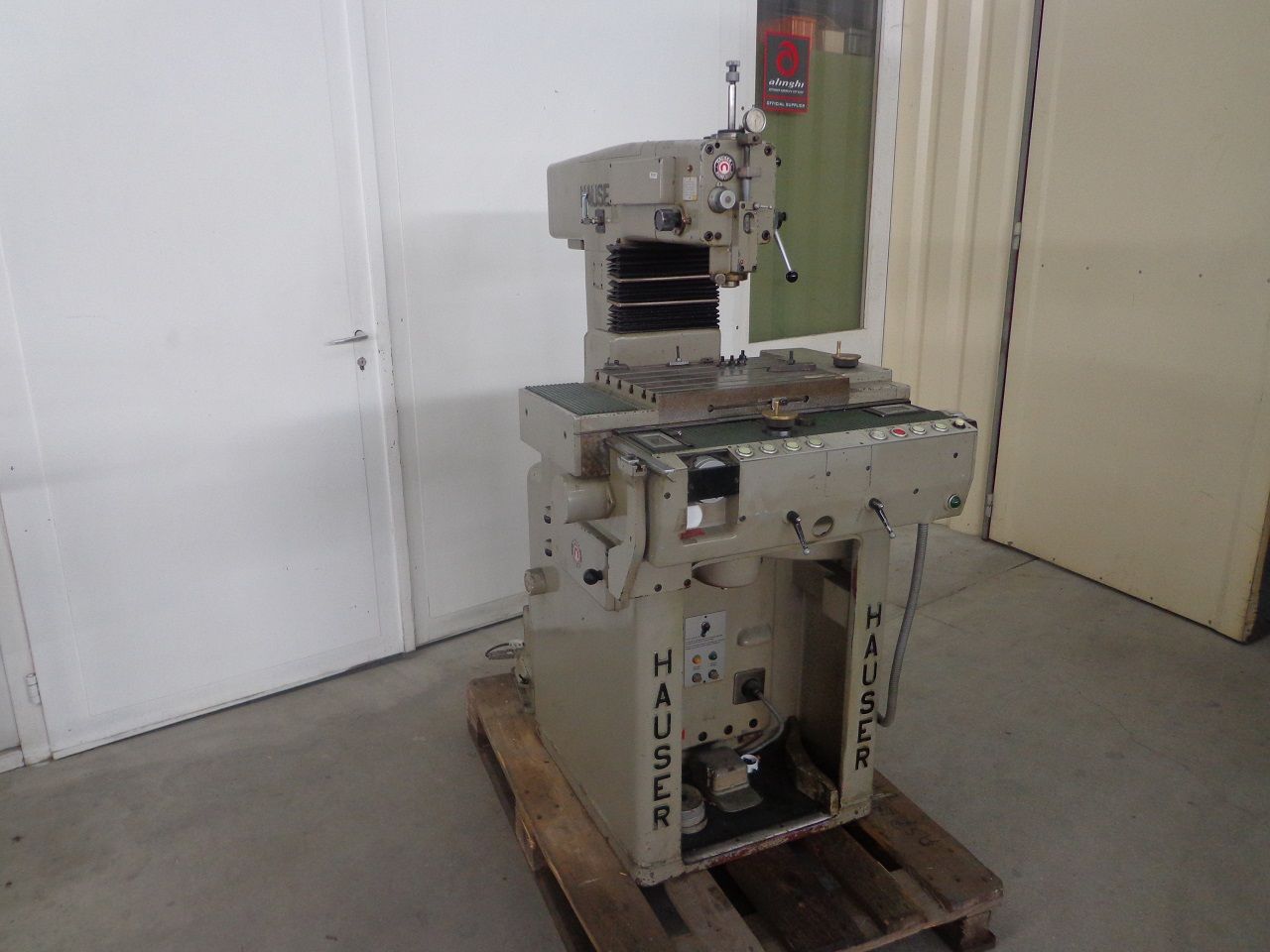

JIG BORING MACHINE "HAUSER" TYPE OP-2

Reference: 2160006



Information

Manufacturing originSwiss
Voltage380/50/3
Netweightabt. 760 kg
Custom position8459.2930
Dimensions

TECHNICAL DATA

WORK CAPACITY

Travel X and Y200x200 mm
Vertical slide travel250 mm
Travel of drilling spindle70 mm
Max free passage between table and spindle nose330 mm
Free passage between column and centre of spindle260 mm
Max drilling capacity (steel)10 mm
Max reaming capacity50 mm

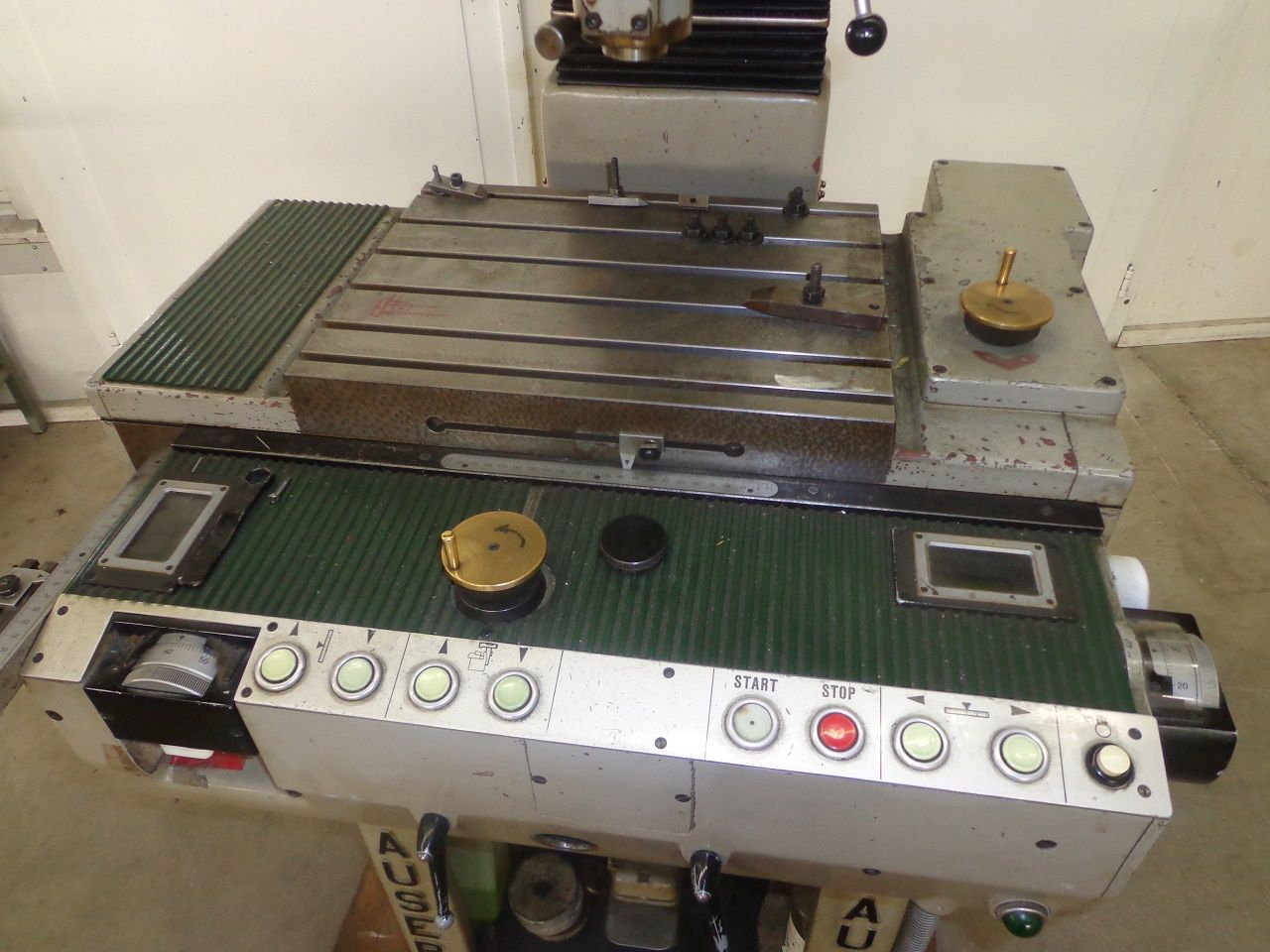

TABLE

Usable surface400x300 mm
Admitted load100 kg
Travels X and Ythrough motors
Number of T-slots6 (longitudinal)

DRILLING HEAD

Spindel morse taper0
Speed of spindle150-3000 rpm
Feed of drilling spindle0,015 mm/t

PRECISION

Direct reading on divided drums0,01 mm
Direct reading on verniers0,001 mm
Guaranteed precision on displacement of slide-way0,002 mm

MEASURE

Measuring systemdirect, optical
Elements of measuregraduated rule, div.1mm
Read-outprojection screens
Shifting of zero-pointyes
Direct read-out0,001 mm
Guaranteed positioning precision0,002 mm
Installed power1,2 kW
errors and omissions excepted data given without obligation
