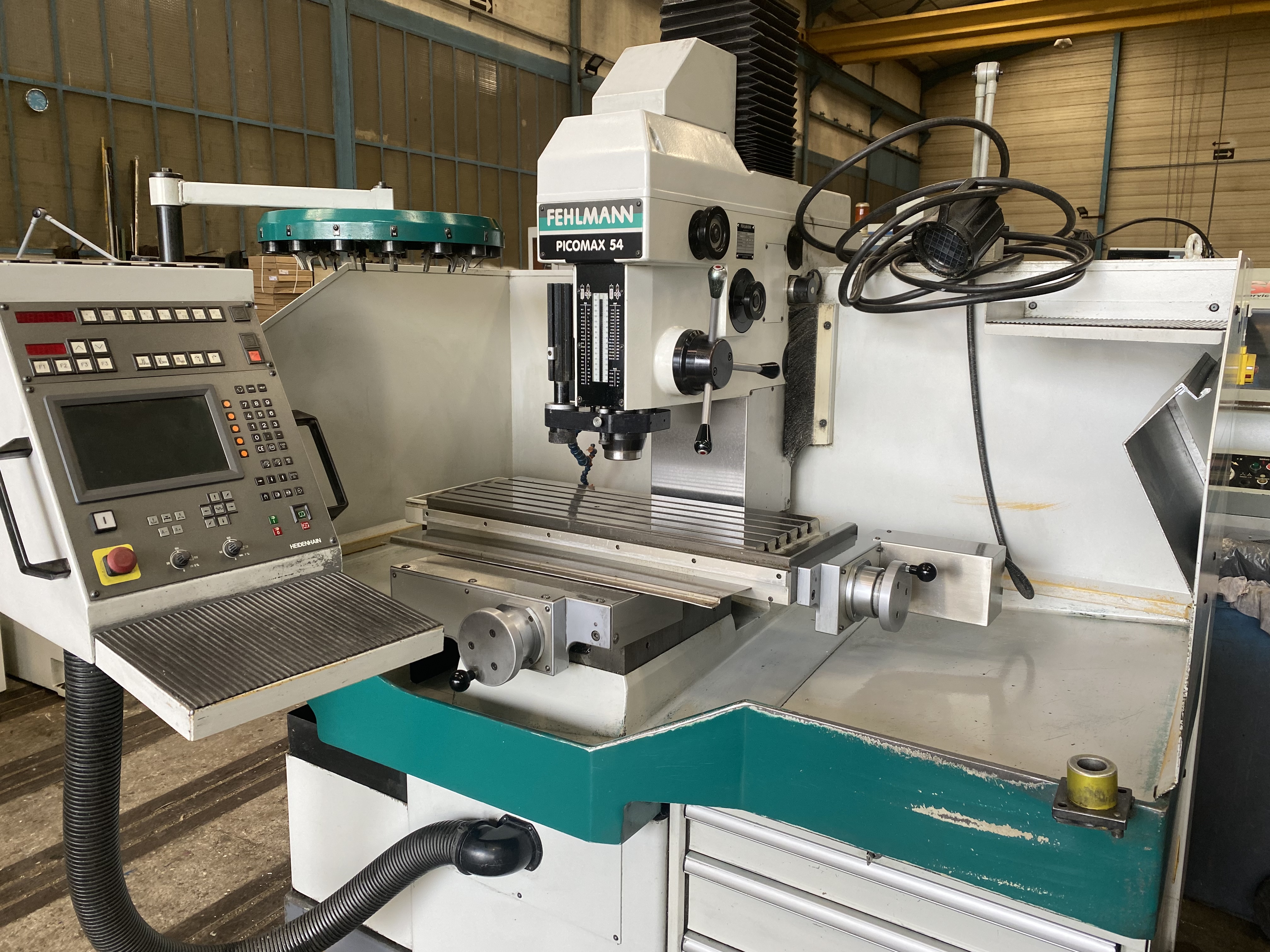

Number of axis total 4
Drill capacity in steel 28 mm
Threat cutting in steel M 24
Milling capacity 100 cm3/min
Spindle stroke 160 mm
Spindle speeds :stepless
from 50 rpm
up to 7100 rpm
Table length 880 mm
