MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • CERUTI
  • Model:

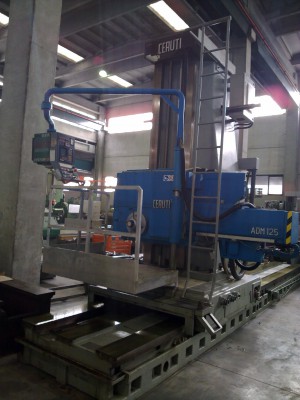

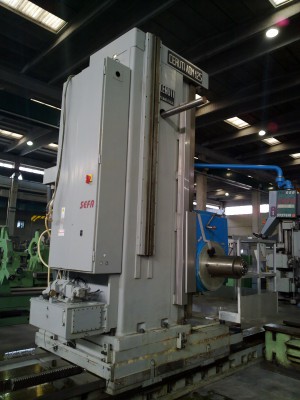

  • CERUTI ADM 125 FLOOR TYPE BORER
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Spindle: 125mm.
Transversal travel: 6.000mm.
Vertical travel: 2.100mm.
Spindle travel: 900mm.
Spindle taper: 50ISO
Spindle power: 14,7Kw.
Spindle speeds: N. 24; 5 - 1.000Rpm.
Total weight: 33Tons.
Notes: RETROFITTED IN 1999.COMPLETE WITH:- D.R.O - 3 AXIS- BIROTATIVE MILLING HEAD- BALL SCREWS- NEW ELECTRIC CABINET AND D.C. MOTORS FOR FEEDS
